Hafele 911.26.940 BL100 Privacy Lock, for Sliding Barn Door Round trim, T1 thumb-turn, matt stainless steel, 2 1/4" lock backset
Product Information
Description
Manufacturer: Hafele
Item: 911.26.940
Product Title: BL100 Privacy Lock, for Sliding Barn Door, Round trim, T1 thumb-turn, matt stainless steel, 2 1/4" lock backset
Category: BL100 Privacy Lock, for Sliding Barn Door,
Item Details …

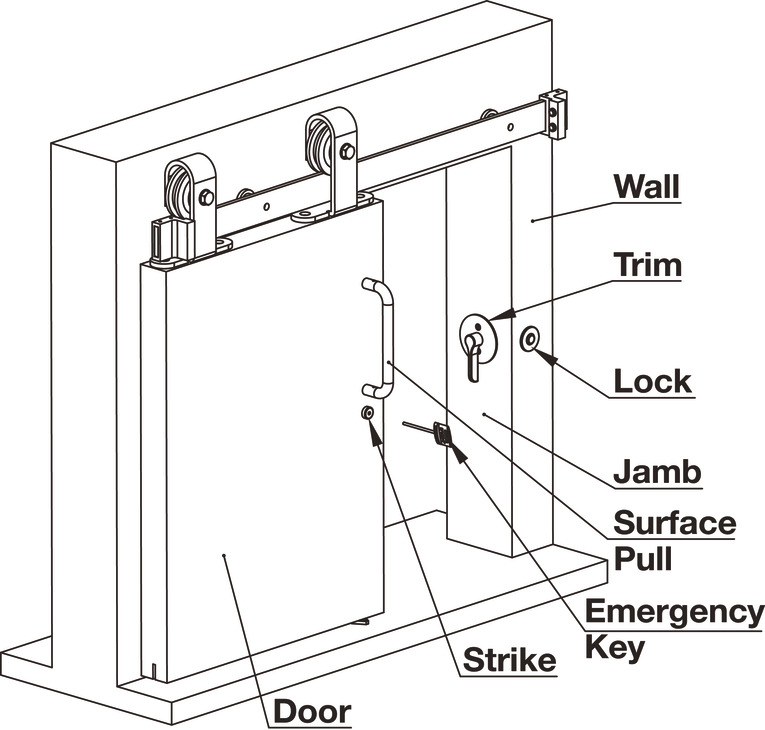

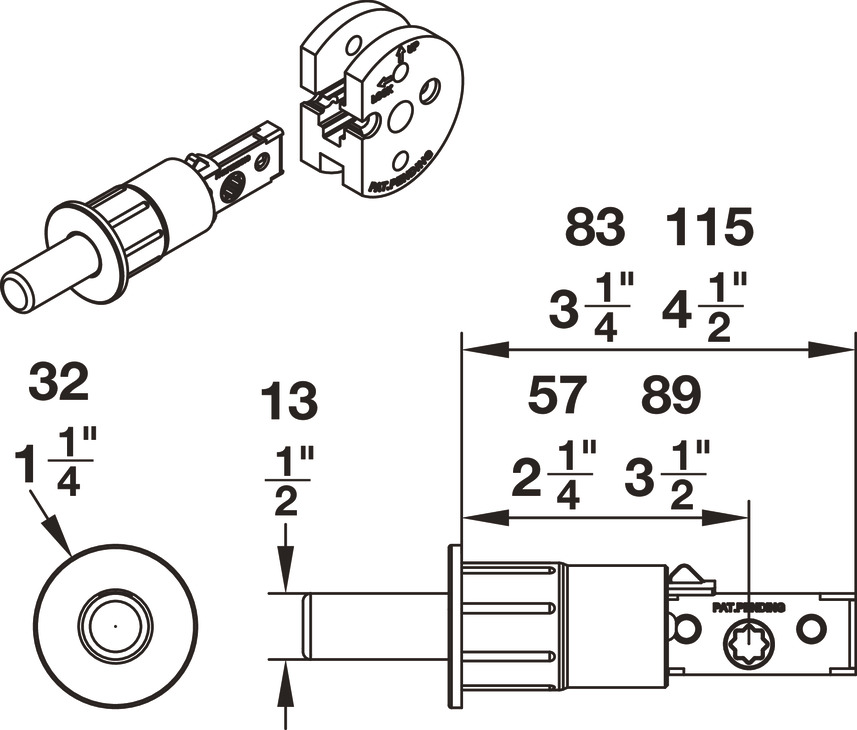

- Tubular drive-in bolt installed into jamb

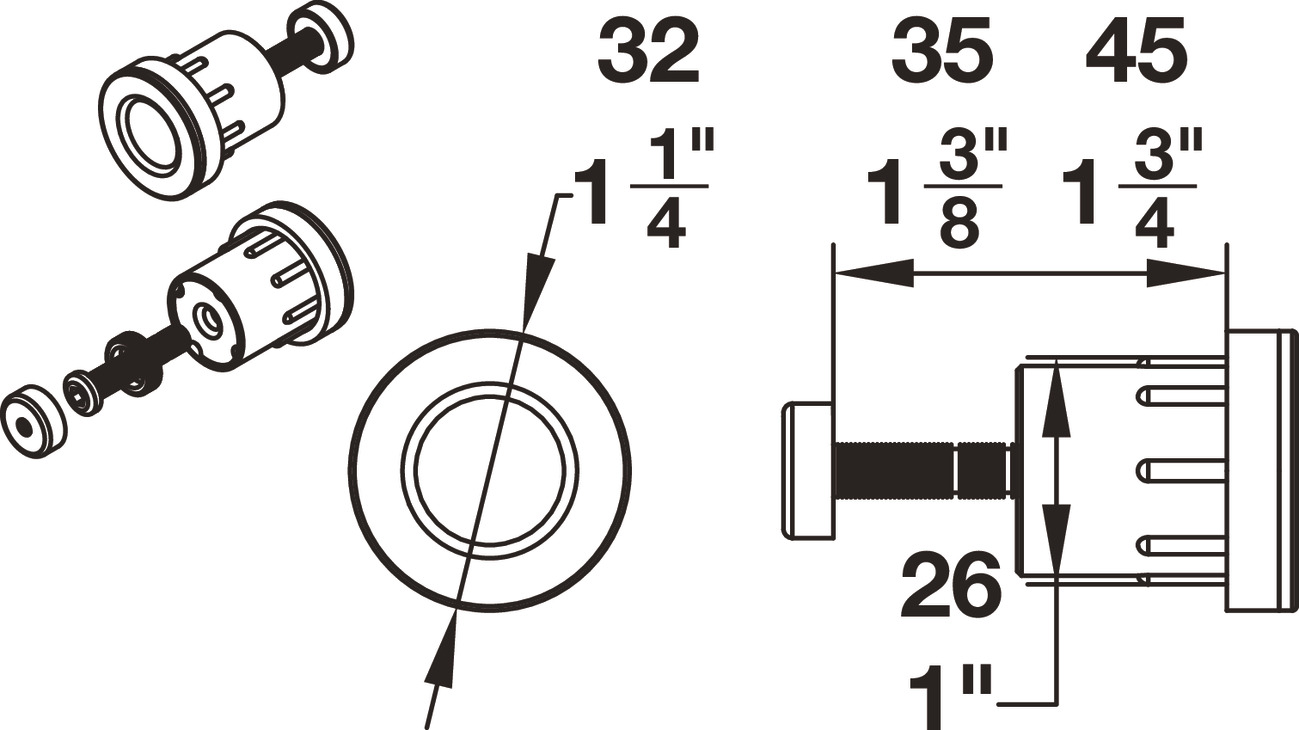

- Adjustable dust proof strike installed in the door on trailing side
- Discrete release button installed on outer face of door for emergency release
- 2 backset options: 2 1/4” backset for wall thicknessof 4 1/2” - 6 1/2” or 3 1/2” backset for wall thickness 6 1/2” and up
- Non-handed
- Various trim options including ADA compliant levers
- Spindle hub: 5 x 5 x 62 mm (3/16” x 3/16” 2 7/16”)
- For door thickness min. : 1 3/8"
- For door thickness max. : 1 3/4"
- Backset (mm) : 2 1/4"
- Supplied with:
- Spindle and screws
- Spindle size: 5 x 5 x 62 mm (3/16 x 3/16 x 2 7/16”)
- Screw size: M4 x 50 mm (1 15/16”)Data Sheet
