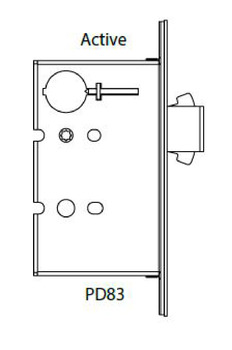

Hafele 911.26.820 Sliding/Pocket Door Lock, ADA Compliant Mortise Lock with Deadbolt Without edge pull, satin stainless steel

Product Information

• Description

  Manufacturer: Hafele
  Item: 911.26.820

  Product Title: Sliding/Pocket Door Lock, ADA Compliant Mortise Lock with Deadbolt, Without edge pull, satin stainless steel

  Category: Sliding/Pocket Door Lock, ADA Compliant Mortise Lock with Deadbolt, Without edge pull

  Item Details …

  - Backset (mm) : 70.00 mm

  - Backset (mm) : 2 3/4"

  - Forend design : Flat forend rounded

  - For door thickness : ?45 mm

  - Material : Lock-case: Heavy gauge steelDeadbolt and Edge Pull: Brass, stainless steelFaceplate and strike: Brass, stainless steel

  - Latchbolt version : Without latch

  - For door thickness min. : 1 3/4"

  - Bolt throw : 1"

  - Area of application : Residential areas, Projects

  - Application : Sliding doors

  - For door material : wood

  - For number of doors : 1-leaf doors

  - Version : Without edge pull

  - Color/finish : Satin stainless steel (US32D)

  - Deadbolt version : Double hook deadbolt

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 1.391



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.364-1.367.pdf

  Hafele 911.26.820 Mortise Lock Case, with dead bolt, ANSI, no edge pul


  • Hardware
  • Trade Discount (15% OFF Coupon),The Complete Hafele,hafele-misc
  • Brand: Hafele
  • Part#: 911.26.820
  • Condition: new

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Thumbturn with Emergency Release, ADA Compliant Mortise Lock with Deadbolt (choose one):


  • satin stainless steel polished stainless steel

    902.53.348 903.58.019

    Click to order Click to order



  Pull Handle (choose one):


  • With pin hole, satin stainless steel With pin hole, polished stainless steel With threaded end, satin stainless steel With threaded end, polished stainless steel

    903.08.490 903.08.491 903.08.530 903.08.531

    Click to order Click to order Click to order Click to order



  Fixing Set for Pull Handle (choose one):


  • single-sided installation back-to-back installation

    909.00.703 909.00.704

    Click to order Click to order
