Hafele 909.03.880 Mounting Set, One-Sided with Decorative Rose, for Pull Handles Wood Door Thickness: (1 9/16 - 1 3/4") 40 - 44 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 909.03.880

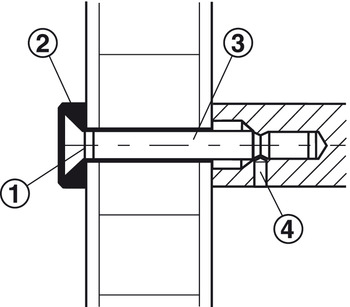

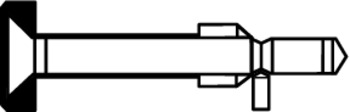

  Product Title: Mounting Set, One-Sided with Decorative Rose, for Pull Handles, Visible, straight support for wood doors, Wood Door Thickness: (1 9/16 - 1 3/4") 40 - 44 mm

  Category: ,

  Item Details …

  - Each pull requires 2 mounting sets

  - Area of application : For Diameter: 25 mm (1") and Diameter: 30 mm (1 3/16") pull handles

  - Drill hole Diameter: : Door drilling Diameter:: 1/2"

  - Drill bit (inch) : 1/2"

  - Suitable for : Häfele Startec door handle model PH 1122, 2110, 2111, 2112, 2113, 2114, 2115, 2116, 2121, 2122, 2126, 2127, 2130, 2131, 2132, 2133, 2134, 2135, 2844, 2866

  - Door type : Wooden doors, Metal doors, Plastic doors

  - For support shape : for straight supports

  - Drill hole Diameter: : 12.50 mm

  - Thread Diameter: : M12

  - Installation : on one side, visible from opposite side

  - Order reference

  - One-sided applications require 2 mounting sets per pull. Back-to-back applications require 2 mounting sets for a pair of pulls.


  Additional Information …

  Square spindles and screws for the specified door thicknesses are supplied with the sets.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 2.18



• Specifications

  Hafele 909.03.880, 909-03-880, 90903880, 909.03


  Specifications/Hafele Catalog - Page# AH3.27: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Door Handles Commercial Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
