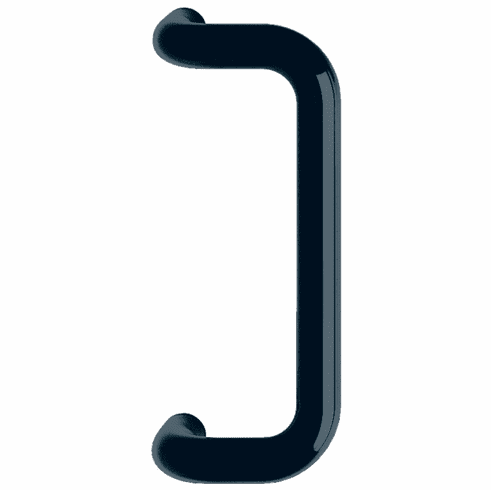

Hafele 908.09.890 Pull Handle, polyamide, Hewi, 550GKLT

Product Information

• Description

  Manufacturer: Hafele
  Item: 908.09.890

  Product Title: Pull Handle, polyamide, Hewi, 550GKLT, Jet black

  Category: ,

  Item Details …

  - Material : Polyamide

  - Color/finish : Jet black

  - Model :

  - Diameter :

  - Length :

  - Height : 85.00 mm

  - Hole spacing :

  - Width :

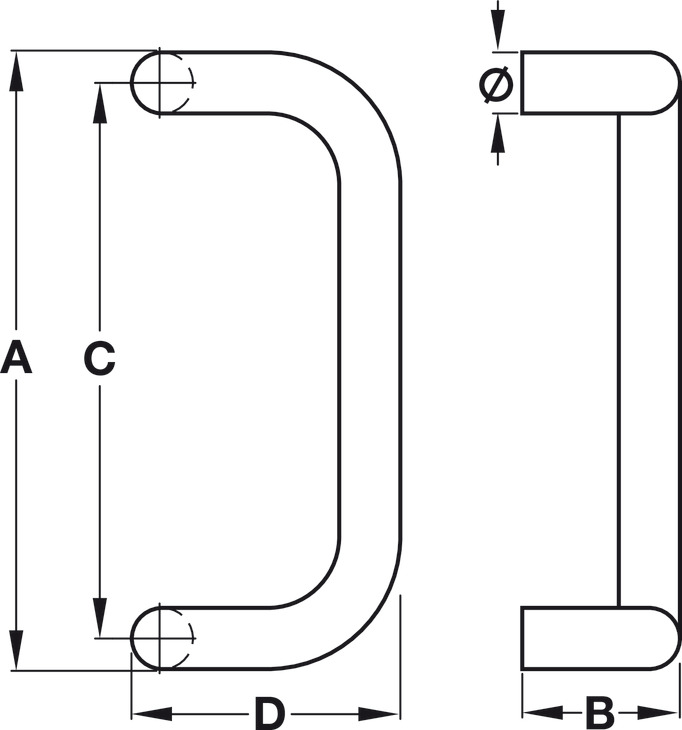

  - Dim. B : 5 1/8"

  - Dim. A : 9 7/8"

  - Width (inch) : 9 7/8"

  - Hole spacing (inch) : 11 13/16"

  - For support shape : straight

  - Order reference

  - Square spindles and screws for the specified door thicknesses are Supplied with: the sets.


  Additional Information …

  Square spindles and screws for the specified door thicknesses are supplied with the sets.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 2.3



• Specifications

• Required Products & Optional Accessories

  Optional Accessories:



  • Fastener, Back to Back Mount for Glass Doors
  • Fastener, Concealed Mount, for Installation on One Side
  • Fastener, Thru Bolt Mount, with Trim Cap
  • Fastener, Concealed Mount, for Installation on One Side
  • Fastener, Back to Back Mount
