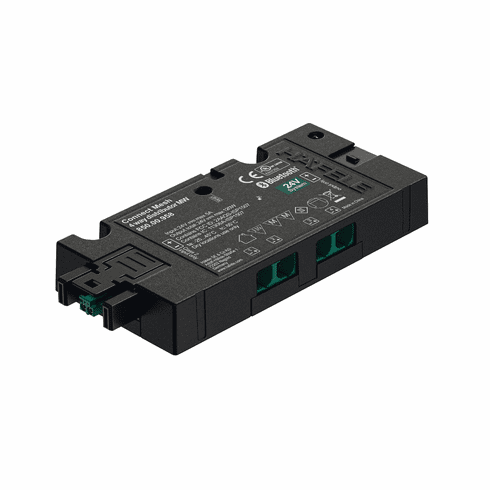

Hafele 850.00.958 Connect Mesh Eco 4-Way Dist. Mw 24V

Product Information

• Description

  Manufacturer: Hafele
  Item: 850.00.958

  Product Title: Distributor, Häfele Connect Mesh Eco, 4-port, 24 V, Individual component for set extension, Individual component for extending the set, multi-white

  Category: Distributor, Häfele Connect Mesh Eco, 4-port, 24 V, Individual component for set extension, Individual component for extending the set, multi-white

  Item Details …

  - > Individual distributors for expanding existing sets

  - > Easily paired with remote; no app required

  - > Ideal for smaller installations with up to 4 distributors and 1 remote control

  - Low voltage plug : Loox5 2-pin 24 V

  - Input ports : 1 x plug, Loox5 2-pin 24 V box to box

  - Connections : 4 x sockets, Loox5 2-pin 24 V box to box

  - Connected output ports : 4 x sockets, Loox5 3-pin MW 24 V

  - Power rating : 72.00 W

  - Voltage : 24.00 V

  - Color system : MW

  - Length (inch) : 4 1/8"

  - Width (inch) : 2"

  - Height (inch) : 5/8"

  - Area of application : For switching on/off, dimming (0-100%); color temperature change (multi-white) and color change (RGB)

  - Suitable for : For multi-white lights

  - Version : 4-port series; for Monochrome, 3-wire Multi-white or RGB LED lights

  - Material : Plastic

  - Color/finish : Black

  - Dim. (L x W x H) : 150 x 50 x 16 mm

  - Control channels : 1.00

  - Number of controls for each installation max. : 4.00

  - Distance between controls max. : 10.00 m

  - Standby power consumption : 0.50 W

  - Order reference

  - Please order Häfele Connect Mesh Eco remote control separately.

  - Supplied with:

  - 1 4-port connect mesh distributor


  Additional Information …

  Memory function after power loss = Remembers last state
