Hafele 850.00.012 Radio Remote Control, Connect, BLE Adapter, 24 V Multi-white, voltage: 24 V
Product Information
Description
Manufacturer: Hafele
Item: 850.00.012
Product Title: Radio Remote Control, Häfele Connect, BLE Adapter, 24 V, for 4-channel BLE box, multi-white, Multi-white, voltage: 24 V
Category: Radio Remote Control, Häfele Connect BLE adapter 12/24 V,
Item Details …
- For controlling lighting and electrically operated fittings (e.g. EFL51 furniture lock) intuitively and wireless via app
- For storing scenarios, combining scenarios to create animations and programming with weekly timer

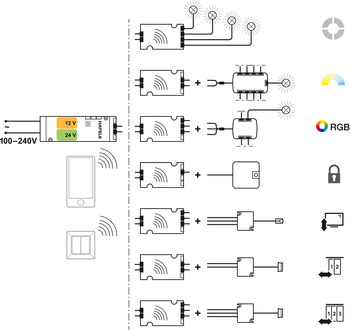

- For combination of different BLE boxes in the network
- Input ports : 2 x plug, Loox 2-pin 24 V
- Connections : 9 x sockets, Loox 3-pin MW
- Wattage : 60.00 W
- Material : Plastic
- Current carrying capacity : 2.50 A
- Dim. (L x W x H) : 100 x 57 x 17 mm
- Installation : With screws
Additional Information …
The Häfele Connect App is free for Apple IOS® and Android™.The distance between the Smartphone or tablet to the nearest BLE box is 10 m. (32' 9 3/4"). All BLE boxes are supplied in default white light mode. For multi-white and RGB lighting applications, it is required to change the operating mode through "Change profile" in the Hafele Connect app. Please refer to the Hafele Connect App user guide or Quick guide for instructions.Data Sheet
