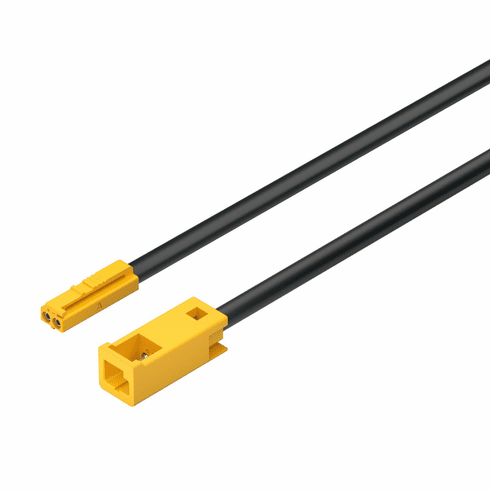

Hafele 833.95.912 Loox5 Extension Lead, 12v/0.3 meter

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.95.912

  Product Title: Extension lead, Häfele Loox5 monochrome, 12 V, 18 AWG, for Loox5 monochrome lights and other 2-wire devices and distributors, Length: (11 13/16") 300 mm

  Category: Extension lead, Häfele Loox5 monochrome, 12 V, 18 AWG, 5 A, 18 AWG

  Item Details …

  - Wire gauge: 18AWG; Wire type: CL3R

  - Construction: 2-conductor, stranded copper

  - Rating: Class 2, double insulated

  - Color system : monochrome or MW 2-wire-Technology

  - Input ports : 1 x plug, Loox5 2-pin 12 V

  - Connections : 1 x socket, Loox5 2-pin 12 V

  - Nominal voltage : 12.00 V

  - Version : Meets the following codes for wire and cable locations:> NEC article 411 Lighting systems operating at 30 V or less attached to Class 2 power> NEC article 725.135 Installation of Class 2 cable > NEC article 411.5 Specific Location Requirements

  - Current carrying capacity : 5.00 A

  - Wire cross section AWG : 18.00

  - Drill hole Ø : Plug 5/16"; socket 1/2"

  - Material : Plastic

  - Number of leads : 2.00

  - Plug drill hole Ø : 8.00 mm

  - Socket drill hole Ø : 13.00 mm

  - Supplied with:

  - 1 extension lead

  - 1 plug/1 socket


  Additional Information …

  Lead length from Loox5 driver to device max. 10 m (393 11/16").Long cable lengths in combination with large loads (strip light lengths) can result in voltage drop in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the nominal output voltage of the driver (12 V or 24 V).
