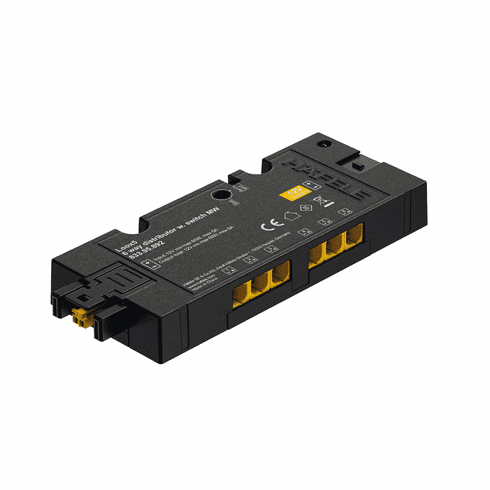

Hafele 833.95.892 Loox5 6-Way Multi-white Distributor, Controller, 12V, 60W

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.95.892

  Product Title: 6-Way Distributor, Häfele Loox5, Manual Multi-White Control, 12 V, 60 W, 4 3/4" x 2" x 5/8"

  Category: 6-Way Distributor, Häfele Loox5, Manual Multi-White Control, 12 V, 60 W, 4 3/4" x 2" x 5/8"

  Item Details …

  - > Connect multi-white lights directly - without adapters

  - > Change color temperature by pushing button on distributor; no Bluetooth® or app required

  - > Toggle between four color temperatures (2700 K, 3000 K, 4000 K, 5000 K)

  - Low voltage plug : Loox5 2-pin 12 V

  - Input ports : 1 x plug, Loox5 2-pin 12 V box to box

  - Connections : 1 x socket, Loox5 2-pin 12 V box to box

  - Connected output ports : 6 x sockets, Loox5 3-pin MW 12 V

  - Control input ports : 1 x socket, Loox switch

  - Power rating : 60.00 W

  - Voltage : 12.00 V

  - Color system : MW

  - Area of application : For setting multi-white light color temperature during installation; not designed for end-user control

  - Version : Box to box, multi-white, 3-wire, with switching function for 1 switch

  - Material : Plastic

  - Color/finish : Black

  - Dim. (L x W x H) : 120 x 50 x 16 mm

  - Switching function : With switching function

  - Memory function : Yes (also in currentless condition)

  - Standby power consumption : 0.25 W

  - Supplied with:

  - 1 Distributor


  Additional Information …

  A function key on the distributor is used to pre-select (for all outputs together) from 4 light colors: 2700 K/3000 K/4000 K/5000 K
