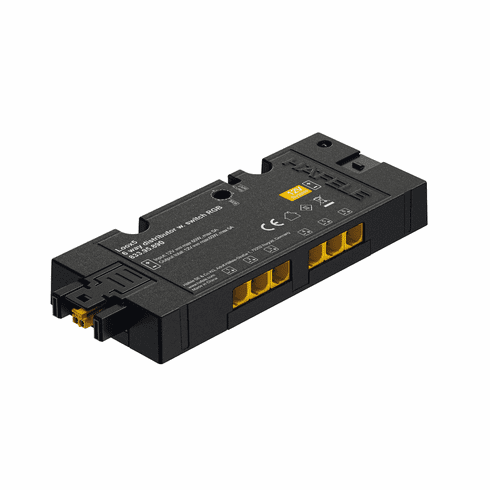

Hafele 833.95.890 Loox5 6-Way RGB Distributor, Controller, 12V, 60W

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.95.890

  Product Title: 6-Way Distributor, Häfele Loox5, with Manual RGB Control, 12 V, 60 W, 4 3/4" x 2" x 5/8"

  Category: 6-Way Distributor, Häfele Loox5, with Manual RGB Control, 12 V, 60 W, 4 3/4" x 2" x 5/8"

  Item Details …

  - > Connect RGB lights directly – without adapters

  - > Change color by pushing button on distributor; no Bluetooth® or app required

  - > Toggle between eight colors (red, orange, yellow, green, cyan, blue, violet and magenta)

  - > With another push of the button, colors will rotate through all the colors on an 80-second cycle

  - Low voltage plug : Loox5 2-pin 12 V

  - Input ports : 1 x plug, Loox5 2-pin 12 V box to box

  - Connections : 1 x socket, Loox5 2-pin 12 V box to box

  - Connected output ports : 6 x sockets, Loox5 4-pin RGB 12 V

  - Control input ports : 1 x socket, Loox switch

  - Power rating : 60.00 W

  - Voltage : 12.00 V

  - Color system : RGB

  - Length (inch) : 4 3/4"

  - Width (inch) : 2"

  - Height (inch) : 5/8"

  - Area of application : For switching RGB lights on/off and dimming (0-100%)

  - Version : Box to box, RGB, with switching function for 1 switch

  - Material : Plastic

  - Color/finish : Black

  - Dim. (L x W x H) : 120 x 50 x 16 mm

  - Switching function : With switching function

  - Memory function : Yes (also in currentless condition)

  - Standby power consumption : 0.25 W

  - Supplied with:

  - 1 distributor


  Additional Information …

  A function button on the distributor is used to preselect (for all outputs together) from 8 light colors: Red, orange, yellow, green, cyan, blue, violet and magenta.The color change can be pre-set with another push of a button (from red to red in an 80-second cycle).
