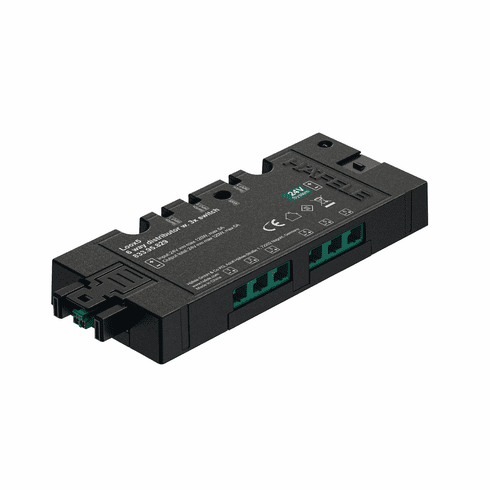

Hafele 833.95.829 Loox5 6-Way Distributor with 3 Switch Ports 24V/120W

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.95.829

  Product Title: 6-Way Distributor, Häfele Loox5, 6-way, with switching function, with 3 switches, 90 W, 4 3/4" x 2" x 5/8"

  Category: 6-Way Distributor, Häfele Loox5, 6-way, with switching function, with 3 switches, 90 W, 4 3/4" x 2" x 5/8"

  Item Details …

  - > Multi-switching function for up to 3 switches, saving space and cost

  - > 3 switching mode options

  - > Permanent soft on/off function, regardless of the switch that is used

  - Low voltage plug : Loox5 2-pin 24 V

  - Input ports : 1 x plug, Loox5 2-pin 24 V box to box

  - Connections : 1 x socket, Loox5 2-pin 24 V box to box

  - Connected output ports : 6 x sockets, Loox 2-pin 24 V

  - Control input ports : 3 x sockets, Loox switch

  - Power rating : 120.00 W

  - Voltage : 24.00 V

  - Color system : monochrome

  - Area of application : For switching on/off and dimming (0-100%)

  - Material : Plastic

  - Color/finish : Black

  - Dim. (L x W x H) : 120 x 50 x 16 mm

  - Switching function : With multi-switching function

  - Memory function : Yes (also in currentless condition)

  - Cable length : 100.00 mm

  - Standby power consumption : 0.26 W

  - Installation : for glue fixing, With screws

  - Operation modes : Operating modes3 operating modes:Group connection (red feedback LED)Switch 1 = outputs 1 and 2Switch 2 = outputs 3 and 4Switch 3 = outputs 5 and 6OR circuit (blue feedback LED)Switching on using switch 1, 2 or 3. To switch off, all switches that are switched on are operated againNo dimmer may be used in the OR circuit operation mode!Digital cross-circuit (green feedback LED)Operate one switch (1, 2 or 3) to switch all outputs on/off

  - Supplied with:

  - 1 Distributor


  Additional Information …

  Wattage capacity within the scope of UL 1310 (e.g. USA, Canada): 90 W
