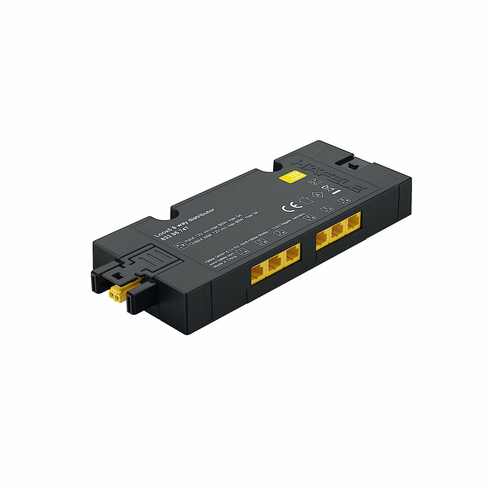

Hafele 833.95.747 LOOX5 6-way distribution box 12v

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.95.747

  Product Title: 6-Way Distributor, Häfele Loox5, Box to Box without Switching Function, 12 V, 60 W, 4 3/4" x 2" x 5/8"

  Category: 6-Way Distributor, Häfele Loox5, Box to Box without Switching Function, 12 V, 60 W, 4 3/4" x 2" x 5/8"

  Item Details …

  - The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver. Observe maximum wattage!

  - Low voltage plug : Loox5 2-pin 12 V box to box

  - Input ports : 1 x plug, Loox5 2-pin 12 V box to box

  - Connections : 1 x socket, Loox5 2-pin 12 V box to box

  - Alternative output ports : 6 x sockets, Loox 2-pin 12 V

  - Power rating : 60.00 W

  - Voltage : 12.00 V

  - Color system : monochrome or MW 2-wire-Technology

  - Version : Box to box without switching function

  - Material : Plastic

  - Color/finish : Black

  - Dim. (L x W x H) : 120 x 50 x 16 mm

  - Supplied with:

  - 1 distributor
