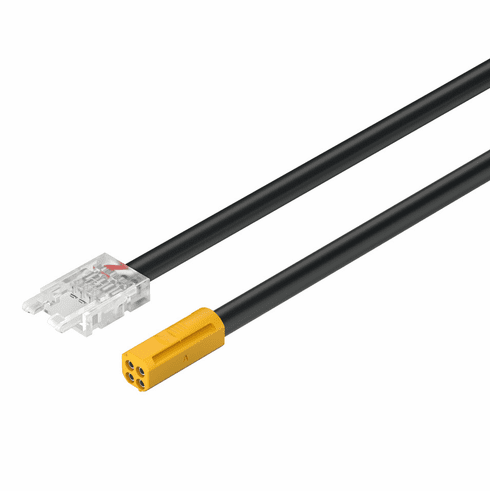

Hafele 833.95.704 LOOX5 Lead ribbon, red green blue

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.95.704

  Product Title: Lead, Häfele Loox5 for LED-Band RGB (3/8") 10 mm, 12 V, AWG 20, Clip width 12 mm, Length: 2000 mm (78 3/4")

  Category: Lead, Häfele Loox5 for LED-Band RGB (3/8") 10 mm, 12 V, AWG 20, Clip width 12 mm

  Item Details …

  - Color system : RGB

  - Input ports : 1 x plug, Loox5 4-pin RGB 12 V

  - Connections : 1 x Clip, Loox5 LED strip light 10 mm RGB

  - Nominal voltage : 12.00 V

  - Clip connector type : Loox5 LED strip light 10 mm RGB

  - Clip width : 12.00 mm

  - Current carrying capacity : 3.50 A

  - Wire cross section AWG : 20.00

  - Width (inch) : Clip: 1/2"

  - Drill hole Ø : Plug 3/8"

  - Material : Plastic

  - Number of leads : 4.00

  - Plug drill hole Ø : 9.00 mm

  - Clip drill hole Ø : 14.00 mm

  - Supplied with:

  - 1 lead plug/clip
