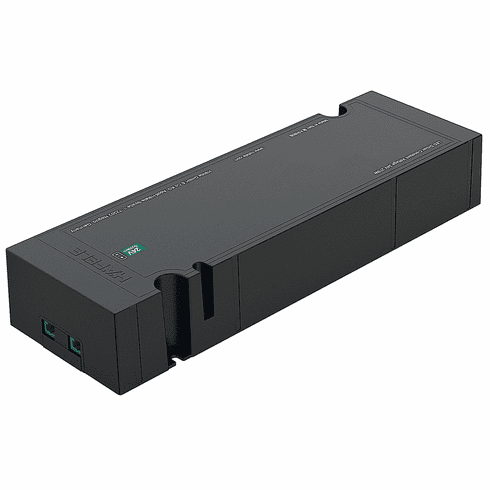

Hafele 833.95.022 LOOX5 Driver 100-120volts AC input, 24 volts DC, 270 watts (3 times 90w output) with power factor correction

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.95.022

  Product Title: Driver, Häfele Loox5, Constant Voltage 24 V, Plug type: US, With efficiency factor correction, output current 3 x 3.75

  Category: Driver, Häfele Loox5, Constant Voltage 24 V, Plug type: US, With efficiency factor correction, output current 3 x 3.75

  Item Details …

  - 24 V driver with Loox5 generation plug system

  - Mains voltage : 100?–?120 V

  - Mains frequency : 50?–?60 Hz

  - Plug mains voltage : C14 3-pin

  - Output power : , (2 x 120)

  - Ambient temperature : -25–45 °C

  - Dim. (L x W x H) : 234 x 75 x 38 mm

  - Height (inch) : 1 1/2"

  - Length (inch) : 9 3/16"

  - Width (inch) : 2 15/16"

  - Output voltage : DC

  - Version : With overload protection

  - Color/finish : Black

  - Connections : 2 x sockets, Loox5 2-pin 24 V

  - Secondary side circuit : Parallel connection

  - Life time : >50,000 hours

  - Installation : With screws

  - Installation reference : Ensure that there is a sufficient air supply and circulation at the mounting location

  - Order reference

  - Please pay attention to the regional input voltage when choosing the driver.

  - Supplied with:

  - 1 driver with mounting accessories

  - 1 US power cord


  Additional Information …

  Maximum lead length from the Loox5 driver to the device is 10,000 mm (393 11/16"). Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver. (12 V or 24 V).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for 240W/270W driver

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 288
