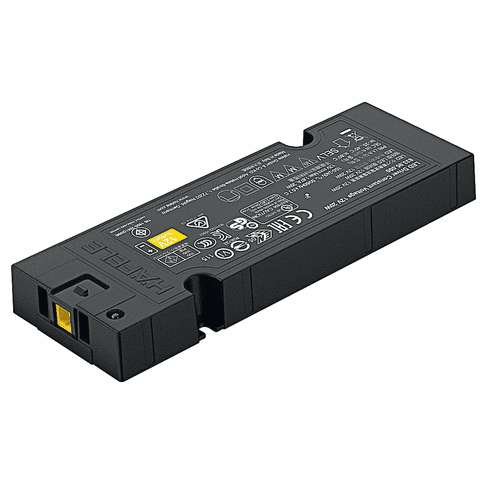

Hafele 833.95.000 Loox5 Driver 100-240 Volts AC to 12 volts DC, 20 Watts

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.95.000

  Product Title: Driver, Häfele Loox5, constant voltage 12 V, 20 W, Voltage 12 V, output power: 20 W

  Category: Driver, Häfele Loox5, constant voltage 12 V,

  Item Details …

  - Extremely flat 16 mm

  - 12 V drivers with Loox5 generation plug system

  - Safety Class 2

  - Degree of protection IP20

  - Mains voltage : 100?–?240 V

  - Mains frequency : 50?–?60 Hz

  - With switching function : No

  - Efficiency factor correction (PFC) :

  - Output voltage : DC

  - Version : With overload protection

  - Color/finish : Black

  - Connections : 1 x socket, Loox5 2-pin 12 V box to box

  - Secondary side circuit : Parallel connection

  - Life time : >50,000 h

  - Installation : With screws

  - Installation reference : Ensure that there is a sufficient air supply and circulation at the mounting location.

  - Order reference

  - Alternative mains leads available with open cable ends or switches.

  - Supplied with:

  - 1 driver

  - Mounting accessories

  - US power cord


  Additional Information …

  Maximum lead length from the Loox5 driver to the device is 10,000 mm (393 11/16"). Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver. (12V or 24V).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Mounting Instructions

  EU Declaration of Conformity

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 284
