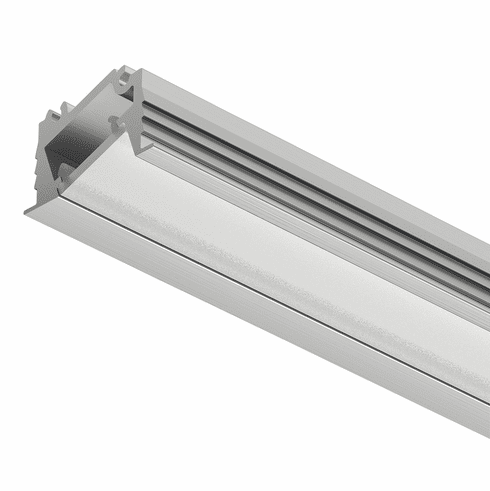

Hafele 833.94.206 Profile 1106, Aluminum, Silver Finish with Opal Lens / 92 Inches

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.94.206

  Product Title: Profile for recess mounting, Häfele Loox5 Profile 1106, for LED strip lights up to 8 mm (5/16") width with clip, Asymmetrical light distribution, Length: (92") 2336 mm, silver colored

  Category: Profile for recess mounting, Häfele Loox5 Profile 1106, for LED strip lights up to 8 mm (5/16") width with clip, Asymmetrical light distribution

  Item Details …

  - Light permeability : 70?–?80?%

  - Length : 2,336.00 mm

  - Length (inch) : 92"

  - Width (inch) : Diffuser: 3/16"

  - Material : Profile: Aluminum, Diffuser: Polycarbonate

  - Supplied with:

  - 1 aluminum profile

  - 1 diffuser opal white


  Additional Information …

  For LED strip lights up to a maxx width of 8 mm (5/16") with clip.The surface on the aluminum profile that is to be bonded must be cleaned before bonding to the LED strip lights. It must be completely clean, grease-free and dust-free!DiffuserThe opal white diffuser creates a uniform light without points from 120 LEDs/ m. Points are visible with black version. If required, please order alternative diffusers in black or transparent separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 209
