Hafele 833.94.119 PROFILE 2104 aluminum, silver, opal lens, 2.5m

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.94.119

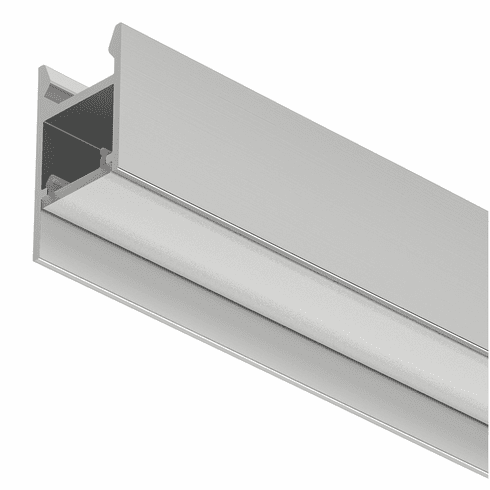

  Product Title: Aluminum Profile, Häfele Loox5 Profile 2104, for LED strip lights, Internal width 11 mm (7/16"), Surface Mounted, Length: (98 7/16") 2500 mm, silver colored

  Category: Aluminum Profile, Häfele Loox5 Profile 2104, for LED strip lights, Internal width 11 mm (7/16"), Surface Mounted

  Item Details …

  - Asymmetrical light distribution provides a glare-free light source.

  - Light permeability : 60?–?70?%

  - Version : For concealed fixing

  - Material : Profile: Aluminum, Diffuser: Polycarbonate

  - Diffuser width : 11.00 mm

  - Supplied with:

  - 1 aluminum profile

  - 1 diffuser opal white


  Additional Information …

  For LED strip lights up to a width of 8 mm. Slide-in 10 mm wide clips from the side before installing the profile.Distance of retaining clips max. 500 mm.DiffuserThe opal white diffuser creates a uniform light without points from 120 LEDs/ m. Points are visible with black version. If required, please order alternative diffusers in black or transparent separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox – Electrical Code Compliance



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Mounting Bracket, For Häfele Loox5 profile 2103/2104 (choose one):


  • for concealed fixing, 1 pair

    833.95.908

    Click to order



  Optional Accessories:



  • End Cap, For Häfele Loox5 profile 2104
  • End Cap, For Häfele Loox5 profile 2104
  • End Cap, For Häfele Loox5 profile 2104
  • End Cap, Slotted, for Häfele Loox5 Profile 2103/2104
