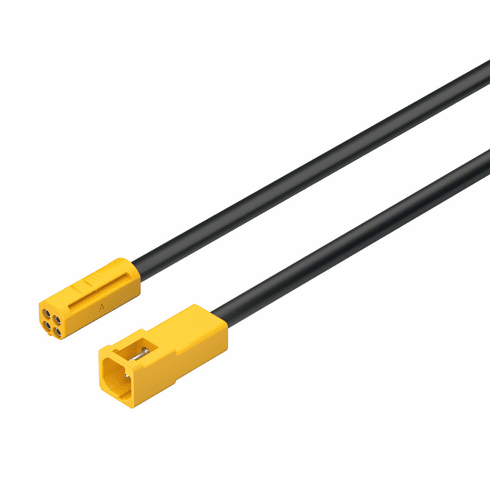

Hafele 833.93.731 LOOX5 Extension lead,. Multi-white, CL3R 12v/2.0 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.93.731

  Product Title: CL3R Extension Lead, Häfele Loox5 multi-white, 12 V, 20 AWG, for Loox5 multi-white lights; designed to be routed behind drywall, Length: (78 3/4") 2000 mm, CL3R

  Category: Extension lead, Häfele Loox5, 3-pin (multi-white), 3.5 A, 20 AWG

  Item Details …

  - Wire gauge: 20AWG; Wire type: CL3R

  - Construction: 3-conductor, stranded copper

  - Rating: Class 2, double insulated

  - Color system : MW

  - Input ports : 1 x plug, Loox5 3-pin MW 12 V

  - Connections : 1 x socket, Loox5 3-pin MW 12 V

  - Nominal voltage : 12.00 V

  - Version : Meets the following codes for wire and cable locations:> NEC article 411 Lighting systems operating at 30 V or less attached to Class 2 power> NEC article 725.135 Installation of Class 2 cable > NEC article 411.5 Specific Location Requirements

  - Current carrying capacity : 3.50 A

  - Wire cross section AWG : 20.00

  - Drill hole Ø : Plug 3/8"; socket 1/2"

  - Material : Plastic

  - Number of leads : 3.00

  - Plug drill hole Ø : 9.00 mm

  - Socket drill hole Ø : 13.00 mm

  - Supplied with:

  - 1 extension lead

  - 1 plug/1 socket


  Additional Information …

  Lead length from Loox5 driver to device max. 10 m (393 11/16").Long cable lengths in combination with large loads (strip light lengths) can result in voltage drop in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the nominal output voltage of the driver (12 V or 24 V).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 269

  Hafele_Lighting_2024|Page 94
