Hafele 833.93.710 Loox5 Lead ribbon, female, 8 mm/12 v/0.1 m, bulk

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.93.710

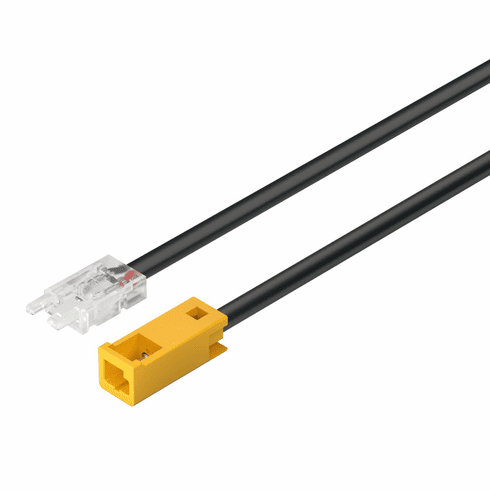

  Product Title: Lead with Female Socket and Clip, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"), 12 V, 18 AWG, Length: 100 mm (4")

  Category: Lead with Female Socket and Clip, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"), 12 V, 18 AWG, Length: 100 mm (4")

  Item Details …

  - Allows connection of several linear lights during final assembly

  - Color system : monochrome or MW 2-wire-Technology

  - Input ports : 1 x Clip, Loox5 LED strip light 8 mm monochrome

  - Connections : 1 x socket, Loox5 2-pin 12 V

  - Nominal voltage : 12.00 V

  - Cable length : 100.00 mm

  - Clip width : 10.00 mm

  - Current carrying capacity : 5.00 A

  - Wire cross section AWG : 18.00

  - Material : Plastic

  - Number of leads : 2.00

  - Socket drill hole Ø : 13.00 mm

  - Clip drill hole Ø : 12.00 mm

  - Installation reference : Conceal cable guide in the furniture or in a cable channel!

  - Area of application : Production of an LED strip light with a connecting socket at the end of the strip, e.g. with individually manufactured linear lights in an aluminium profile. The combination of several lights into a combined switched strip light takes place using the practical plug-in connection during final assembly of the furniture.

  - Supplied with:

  - 1 extension lead socket/clip


  Additional Information …

  The length of the extension cable is always 100 mm. Please vary the lead length as required.
