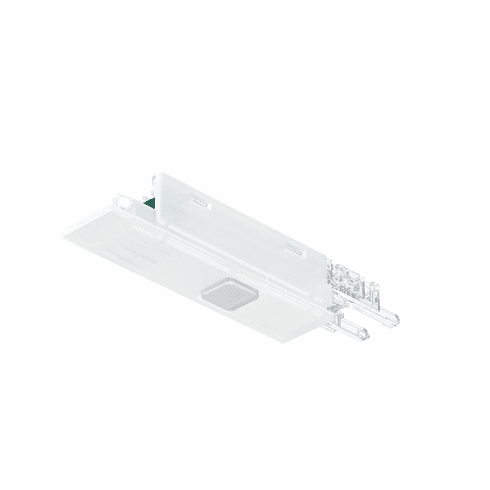

Hafele 833.89.293 LOOX5 Inline Motion Detector Switch, 3 min, 24 v, 120 w, plastic, white

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.89.293

  Product Title: Loox5 Motion Detector, for aluminum profile, Häfele Loox5, modular, Automatic On/Off Switching, Voltage 24 V, max. connected wattage 90 W, delay time 3 min

  Category: Loox5 Motion Detector, for aluminum profile, Häfele Loox5, modular, Automatic on/off switching function, 120 W

  Item Details …

  - Version : With integrated diffuser (opal)

  - Input ports : 1 x socket, Loox5 modular with intervals 2-pin 24 V

  - Connected output ports : 1 x Clip, Loox5 LED strip light 8 mm monochrome

  - Color/finish : opal

  - Low voltage plug : Loox5 2-pin 24 V

  - Switching function : On/off soft, touchless

  - Memory function : No

  - Plug of required low voltage cable : Loox5 2-pin 24 V

  - Power rating : 120.00 W

  - Area of application : For monochrome 8 mm Loox5 LED strip lights in Loox5 aluminum profiles with 11 mm (7/16") internal width

  - Suitable for : Profile 1103, Profile 1105, Profile 2102, Profile 2103, Profile 2104

  - Material : Plastic

  - Sensor angle : 80.00 °

  - Vertical sensor bracket : 70.00 °

  - Installation : For sliding into aluminum profile

  - Installation reference : Shorten LED strip light by approx. 50 mm (1 15/16") in relation to the total length of the aluminum profile. Shorten the diffuser by 45.5 mm (1 13/16").

  - Order reference

  - Please order modular lead separately:

  - 12 V/5 A, 2000 mm (78 3/4"): 833.95.830

  - 12 V/5 A, 1000 mm (39 3/8"): 833.95.831

  - 24 V/5 A, 2000 mm (78 3/4"): 833.95.835

  - 24 V/5 A, 1000 mm (39 3/4"): 833.95.836

  - Supplied with:

  - 1 motion detector

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for inline switch

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 236
