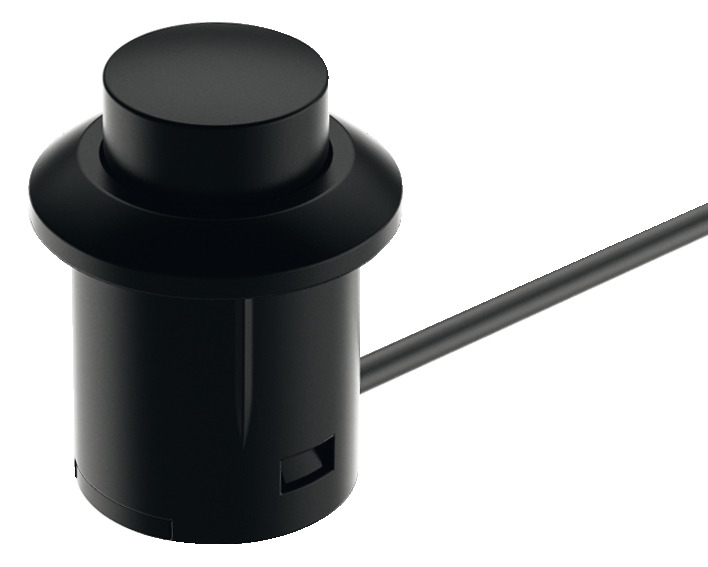

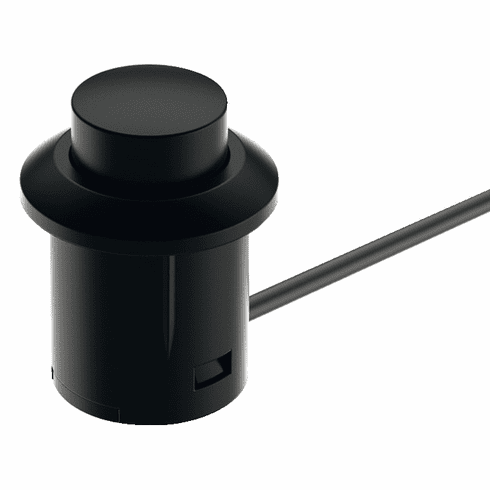

Hafele 833.89.108 LOOX LED Switch, push on/off, plastic, black, 20 x 12mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.89.108

  Product Title: Push Switch, Häfele Loox, On/Off Switching, Black

  Category: Push Switch, Häfele Loox, On/Off Switching,

  Item Details …

  - Switching function : on/off

  - Drill hole Diameter: : 12.00 mm

  - Length : 20.00 mm

  - Length (inch) : 25/32"

  - Drill hole Diameter: : 1/2"

  - Material : Plastic

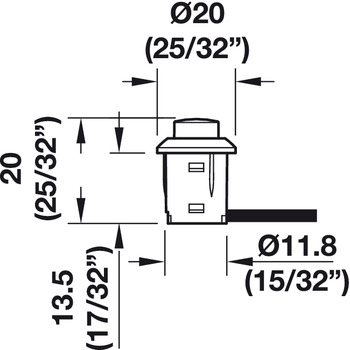

  - Dim. (Diameter: x L) : 14 x 20 mm

  - Cable length : 2,000.00 mm

  - Degree of protection : IP20

  - Plug drill hole Diameter: : 12.00 mm

  - Installation : For recess mounting

  - Supplied with:

  - 1 switch with 2000 mm (78 3/4") lead

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox LED Switches Mounting Instructions

  EU Declaration of Conformity

  Loox UL Listing G1 G2 G3

  Hafele_Lighting_2024|Page 233



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Extension lead, Häfele-Loox for switch
  • Switch Housing, Loox, for Surface Mounting
