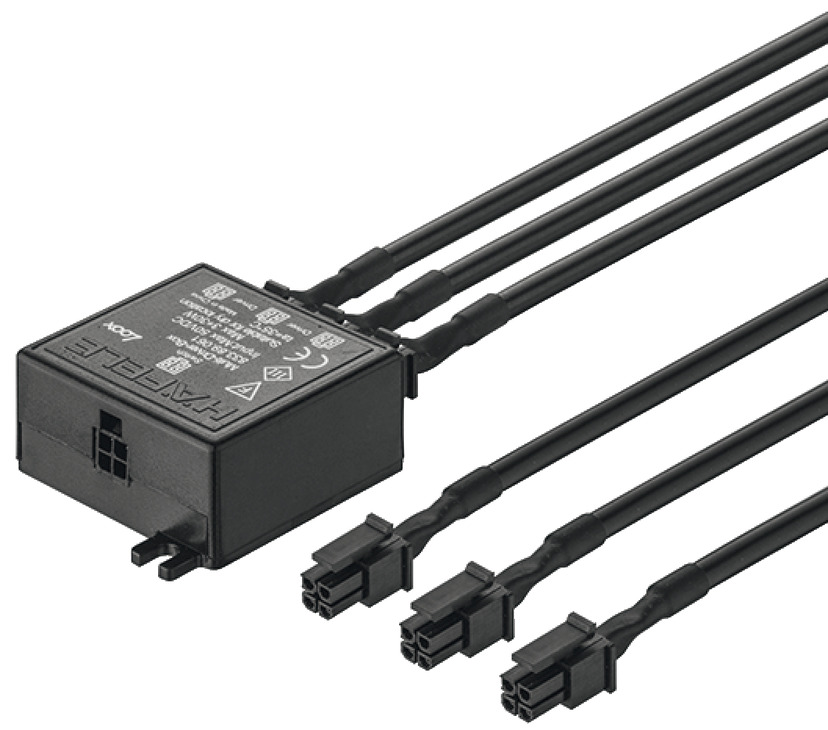

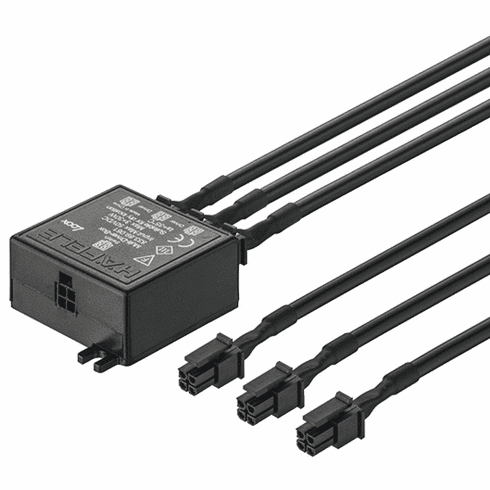

Hafele 833.89.061 LOOX LED Multi Driver Box, plastic, black

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.89.061

  Product Title: Multi Driver Box, Loox LED, Plastic, black

  Category: Multi Driver Box, Loox LED, Plastic, black

  Item Details …

  - Several lights in the room can be switched on and off with one switch. These can also be 3 of the same driver if you require additional power in a 12 V system, for example.

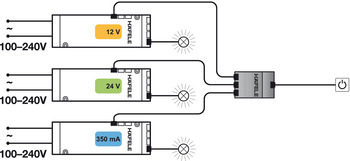

  - Up to 3 LED drivers with different voltages or distributors with a switching function can be controlled with 1 switch

  - Standby power consumption : 1.50 W

  - Material : Plastic

  - Color/finish : Black

  - Dim. (L x W x H) : 50 x 40 x 19 mm

  - Degree of protection : IP20

  - Cable length : 1,000.00 mm

  - Plug drill hole Ø : 12.00 mm

  - Switching capacity : 270.00 W

  - Low voltage plug : Loox switch

  - Order reference

  - Please order lead for switch with other lengths separately.

  - Supplied with:

  - 3 x 1 m (39 3/8”) lead


  Additional Information …

  For controlling up to 3 LED drivers with different voltages or distributors with 1 switch



  Max: 3 x 75 W per multi-driver box
