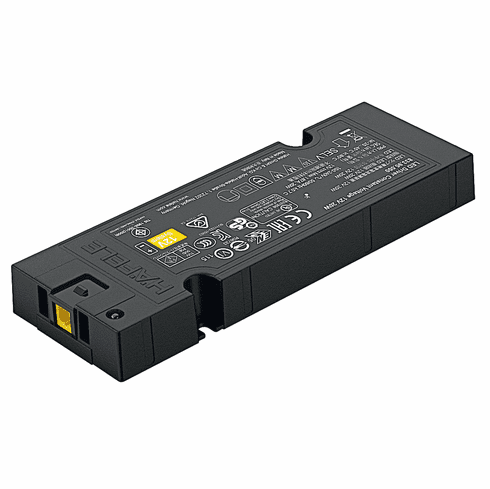

Hafele 833.88.243 Loox5 Driver 100-240 Volts AC to 12 volts DC, 20 Watts, with 90 Degree Power Cable

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.88.243

  Product Title: Driver, Häfele Loox5, constant voltage 12 V, 20W

  Category: Driver, Häfele Loox5, constant voltage 12 V,

  Item Details …

  - Extremely flat 16 mm

  - 12 V drivers with Loox5 generation plug system

  - Mains frequency : 50?–?60 Hz

  - Plug mains voltage : C (flat Euro plug) 2-pin

  - With switching function : No

  - Ambient temperature : -25–45 °C

  - Output voltage : DC

  - Version : with overload protection

  - Color/finish : Black

  - Input ports : 1 x plug, Small appliances

  - Connections : 1 x socket, Loox5 2-pin 12 V box to box

  - Secondary side circuit : Parallel connection

  - Life time : > 70.000 h

  - Installation : With screws

  - Installation reference : Ensure that there is a sufficient air supply and circulation at the mounting location. Provide inspection opening.

  - Order reference

  - Alternative mains leads available with open cable ends or switches.

  - Supplied with:

  - 90° power cord


  Additional Information …

  The service life is doubled at an ambient temperature of <30° C.Max. lead length from Loox5 driver to consumer: 10 m.Due to long cable lengths, voltage losses occur in the cable in conjunction with large loads (strip light lengths). These lead to visible loss of brightness in the lights. The illumination intensity specified for the lights has been determined with the rated output voltage of the driver (12 V or 24 V).
