Hafele 833.77.839 LOOX5 6-way distributor 24v/0.10 meter

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.77.839

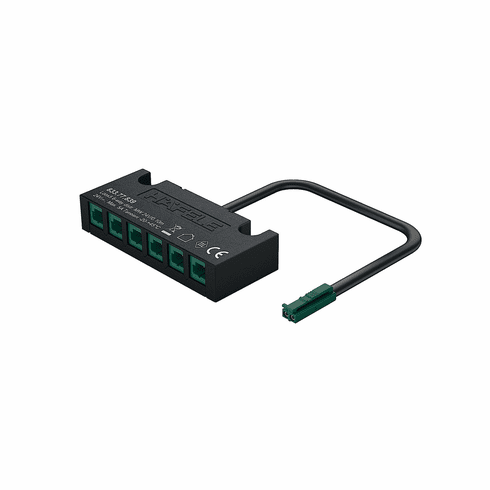

  Product Title: 6-Way Distributor, Häfele Loox5, without Switching Function, 24 V, 90 W, 2 3/4" x 1 3/16" x 9/16"

  Category: 6-Way Distributor, Häfele Loox5, without Switching Function, 24 V, 90 W, 2 3/4" x 1 3/16" x 9/16"

  Item Details …

  - The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver. Observe maximum wattage!

  - Low voltage plug : Loox5 2-pin 24 V

  - Input ports : 1 x plug, Loox5 2-pin 24 V box to box

  - Connections : 6 x sockets, Loox5 2-pin 24 V

  - Alternative output ports : 1 x socket, Loox5 2-pin 24 V box to box

  - Power rating : 120.00 W

  - Voltage : 24.00 V

  - Color system : monochrome or MW 2-wire-Technology

  - Version : Without switching function

  - Material : Plastic

  - Color/finish : Black

  - Dim. (L x W x H) : 70 x 30 x 14 mm

  - Cable length : 80.00 mm

  - Supplied with:

  - 1 Distributor with lead


  Additional Information …

  Wattage capacity within the scope of UL 1310 (e.g. USA, Canada): 90 W
