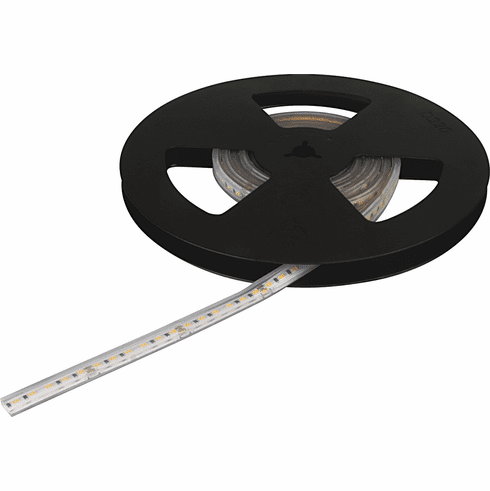

Hafele 833.77.247 LED3089 24V, 9.6 Watts per meter, 2-Wire Multi-white, 2700-5000K, Silicon, 15 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.77.247

  Product Title: LED strip light, Häfele Loox5 LED 3089 Silicone, 24 V, Tunable White, 2-wire, (5/16") 8 mm, 2 x 120 LEDs/m, 9.6 W/m, 15 m

  Category: LED strip light, Häfele Loox5 LED 3089 Silicone, 24 V, Tunable White, 2-wire, (5/16") 8 mm, 2 x 120 LEDs/m, 9.6 W/m

  Item Details …

  - Tunable color temperature (2700K-5000K) without flickering

  - Uses 2-Wire Cables; no adapters needed

  - Color temperature : 2700?–?5,000 K

  - Light color : Warm white to cool white

  - Nominal voltage : 24.00 V

  - Wattage/m : 9.60 W

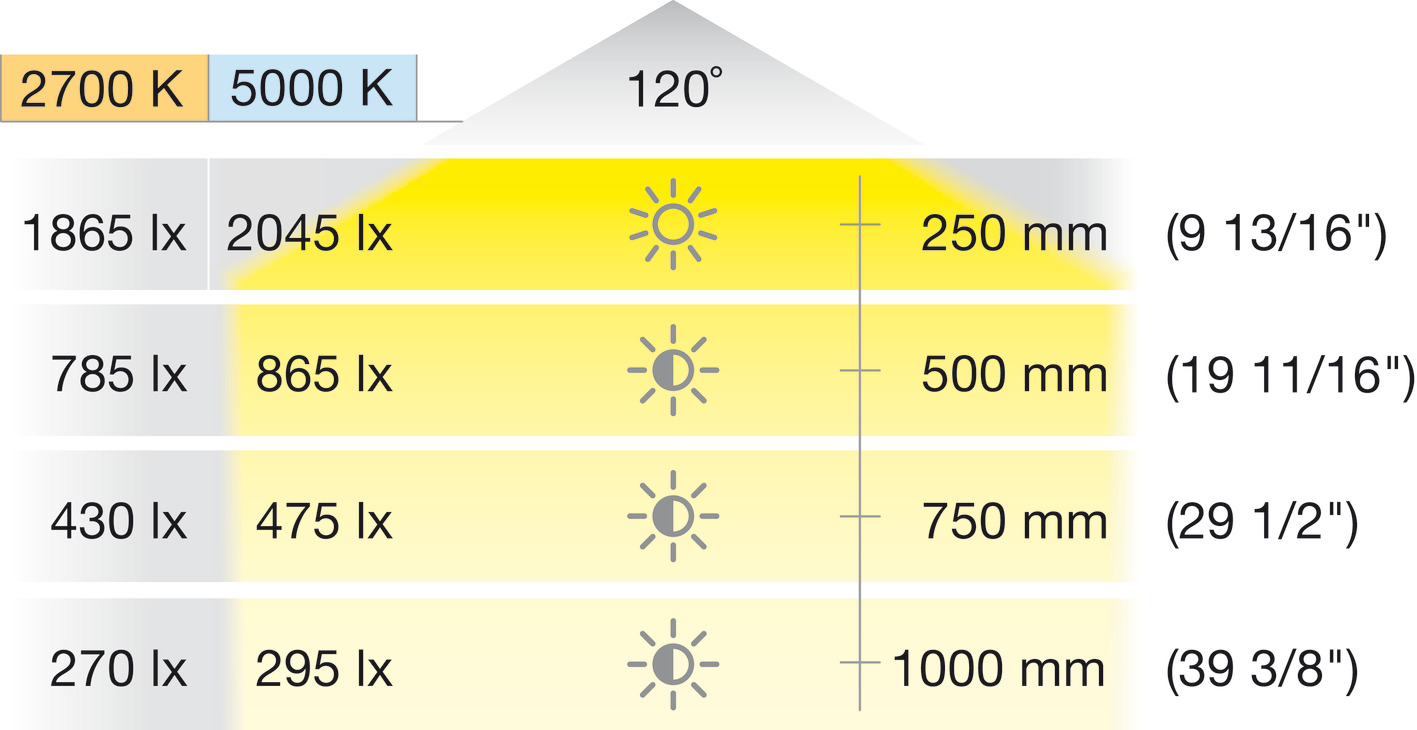

  - Luminous flux/m : 825?–?930 lm

  - Luminous efficacy : 86?–?97 lm/W

  - Max. strip length (visual) : 6.50 m

  - Height (inch) : 1/16"

  - Width (inch) : 5/16"

  - Dimmable : yes

  - Area of application : Store fixtures, Storage spaces, Working areas, Reading areas

  - Version : 2-Wire Multi-white

  - Material : Plastic

  - Color : White

  - Silicone tube width : 10.00 mm

  - Silicone hose height : 4.80 mm

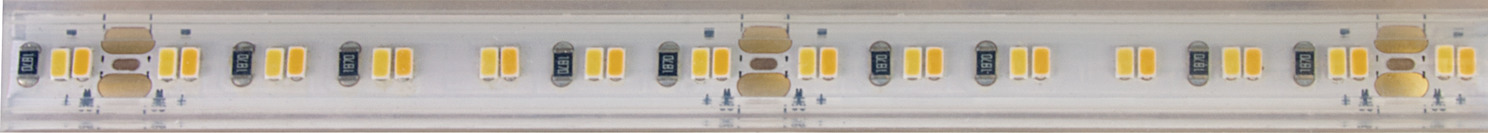

  - Strip width : 8.00 mm

  - Strip height : 1.30 mm

  - Section length : 50.00 mm

  - Contact surface length : 4.00 mm

  - Number of LEDs/m : 120

  - Life time : L80/B10 >50,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Installation : Self-adhesive

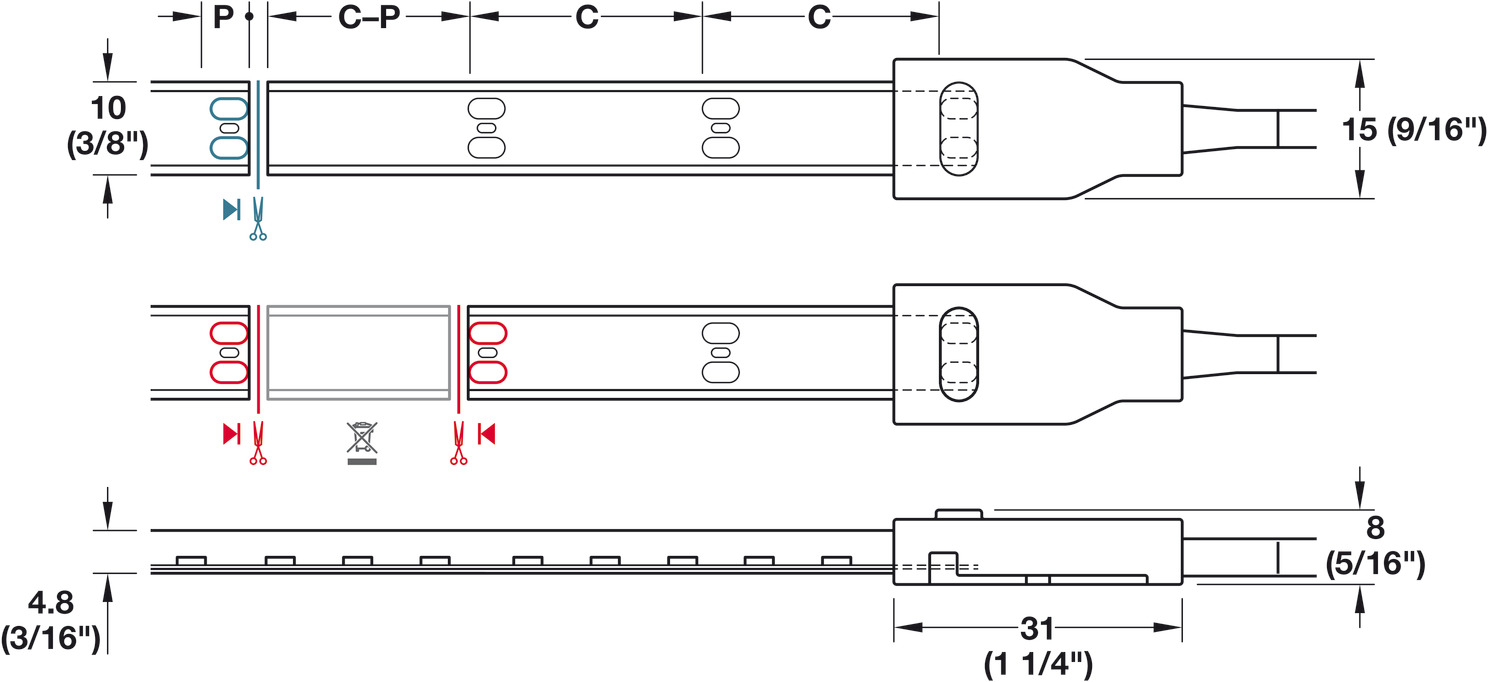

  - Installation reference : Optimized light mixtureCool white and warm white LEDs in the smallest of spacesOptimal light mixture without flickeringCut LED strip light to length (one contact side remains on the remainderpiece; reusable). Connect LED strip lights (two contact sides required).C = section length P = length of contact surface

  - Order reference

  - Please order leads separately. Color control via Häfele Connect Mesh 4-way distributor 850.00.922. Please order separately.

  - Color temperature can only be controlled via Häfele Connect Mesh 4-way

  - distributor (850.00.922) and remote control or smartphone; or with 6-way

  - distributor with manual 2-wire tunable white control (833.95.895). Please

  - order separately


  Additional Information …

  Maximum visual strip length applies to an imperceptible drop in luminous flux of max. 30%. Maximum wattage-dependent strip length on the driver, see technical data for LED strip lights. Remote control only via Häfele Connect Mesh 6-way distributor with multi-white adapter and remote control or smartphone.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Loox5 LED 2088 / 2089 / 3088 / 3089

  Safety Notes for LED Strip Lights

  Hafele_Lighting_2024|Page 149

  Hafele_Lighting_2024|Page 162
