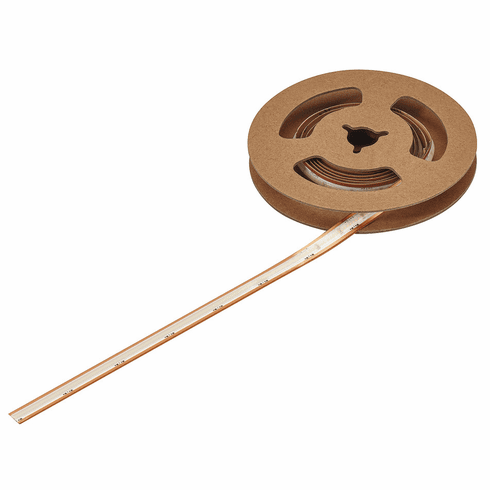

Hafele 833.76.531 LED strip light, COB, Häfele Loox5 LED 3107, 24 V, 8 mm, 2-pol. (multi-white 2-wire technology), 2 x 230 LEDs/m, 9,6 W/m, IP20

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.76.531

  Product Title: LED strip light, COB Gold, Häfele Loox5 LED 3107, 24 V, 8 mm, 2-pol. (multi-white 2-wire technology), 2 x 320 LEDs/m, 9.6 W/m, IP20,

  Category: LED strip light, COB Gold, Häfele Loox5 LED 3107, 24 V, 8 mm, 2-pol. (multi-white 2-wire technology), 2 x 320 LEDs/m, 9.6 W/m, IP20,

  Item Details …

  - Homogeneous illumination, no visible LED points

  - Refraction angle of 120°

  - can also be shortened between cutting marks

  - Color temperature : 2700?–?5,000 K

  - Light color : Warm white to cool white

  - Nominal voltage : 24.00 V

  - Wattage/m : 9.60 W

  - Luminous flux/m : 890?–?895 lm

  - Luminous efficacy : 92?–?93 lm/W

  - Max. strip length (visual) : 5.50 m

  - Strip length : 5.00 m

  - Energy efficiency class : F

  - Dimmable : yes

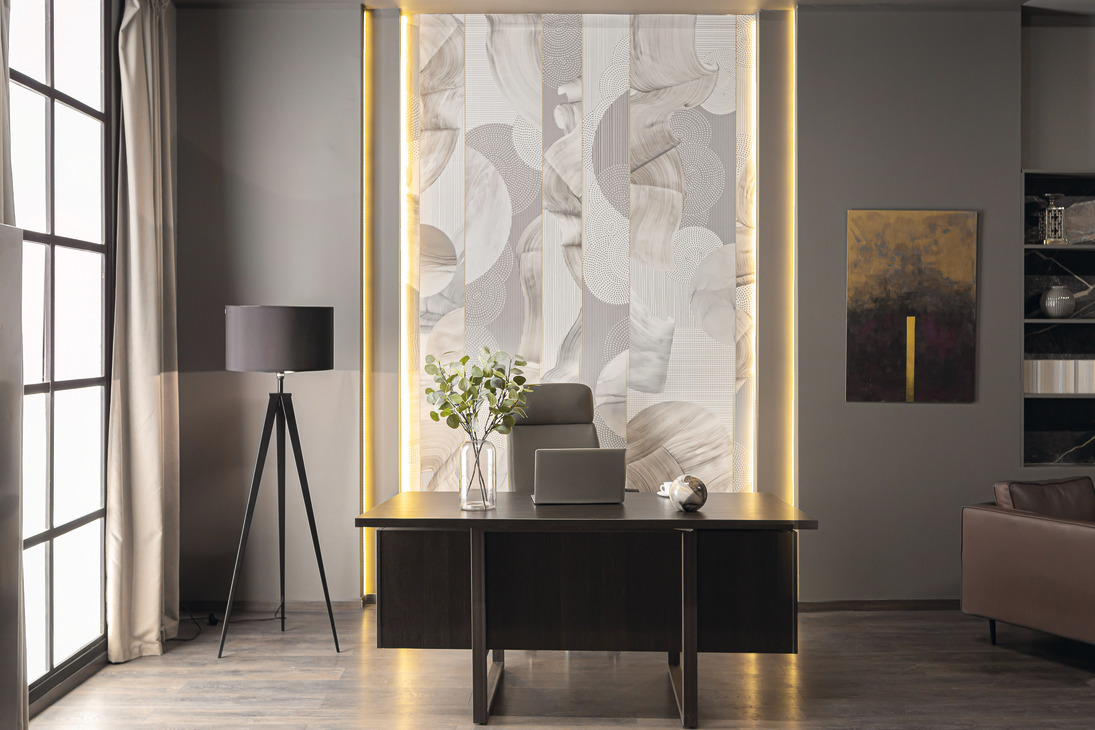

  - Area of application : Indirect illumination of furniture and furnishings, Behind glass edges

  - Version : COB LED, i.e. continuous phosphor coating over all individual LEDs of the entire band, without visible points

  - Material : Plastic

  - Color : White

  - Strip width : 8.00 mm

  - Strip height : 2.00 mm

  - Section length : 25.00 mm

  - Min. bending radius : 30.00 mm

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately. Aluminium profile is recommended from 9.6 W/ m.

  - Supplied with:

  - 1 roll


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30 %. Please note: A strip section with a new power supply that follows immediately is noticeably brighter. Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for COB multi-white 2-wire technology

  Hafele_Lighting_2024|Page 149

  Hafele_Lighting_2024|Page 153



• Brand PDF Catalogs

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead, For Häfele Loox5 Led Strip Light 24 V, 8 Mm, Cob 2-Pin (Monochrome Or Multi-White 2-Wire Technology) (choose one):


  • 5 A, 18 AWG, 100 mm 5 A, 18 AWG, 500 mm 5 A, 18 AWG, 2000 mm

    833.75.762 833.75.763 833.75.764

    Click to order Click to order Click to order



  Distributor, Häfele Connect Mesh Eco, 4-gang (choose one):


  • Individual component for set extension, US

    850.00.922

    Click to order



  Distributor, Häfele Loox5 6-Way Distributor with Manual 2-Wire Tunable White Control (choose one):


  • 90 W, 24 V, black

    833.95.895

    Click to order



  Optional Accessories:



  • Extension lead, For Häfele Loox5 24 V 2-Pin (Monochrome Or Multi-White 2-Wire Technology)
  • Interconnecting lead, For Häfele Loox5 Led Strip Light 8 Mm Cob 2-Pin (Monochrome Or Multi-White 2-Wire Technology)
  • Clip connector, For Häfele Loox5 Led Strip Light 8 Mm Cob 2-Pin (Monochrome Or Multi-White 2-Wire Technology)
