Hafele 833.76.510 LED strip light, COB, Häfele Loox5 LED 3104 24 V 8 mm 2-pin (monochrome), 480 LEDs/m, 9.6 W/m, IP20
Product Information
Description
Manufacturer: Hafele
Item: 833.76.510
Product Title: LED strip light, COB Gold, Häfele Loox5 LED 3104 24 V 8 mm 2-pin (monochrome), 480 LEDs/m, 9.6 W/m, IP20, warm white 2700 K, 5 m, energy efficiency class G
Category: LED strip light, COB Gold, Häfele Loox5 LED 3104 24 V 8 mm 2-pin (monochrome), 480 LEDs/m, 9.6 W/m, IP20,
Item Details …
- > homogenous illumination, no visible LED points

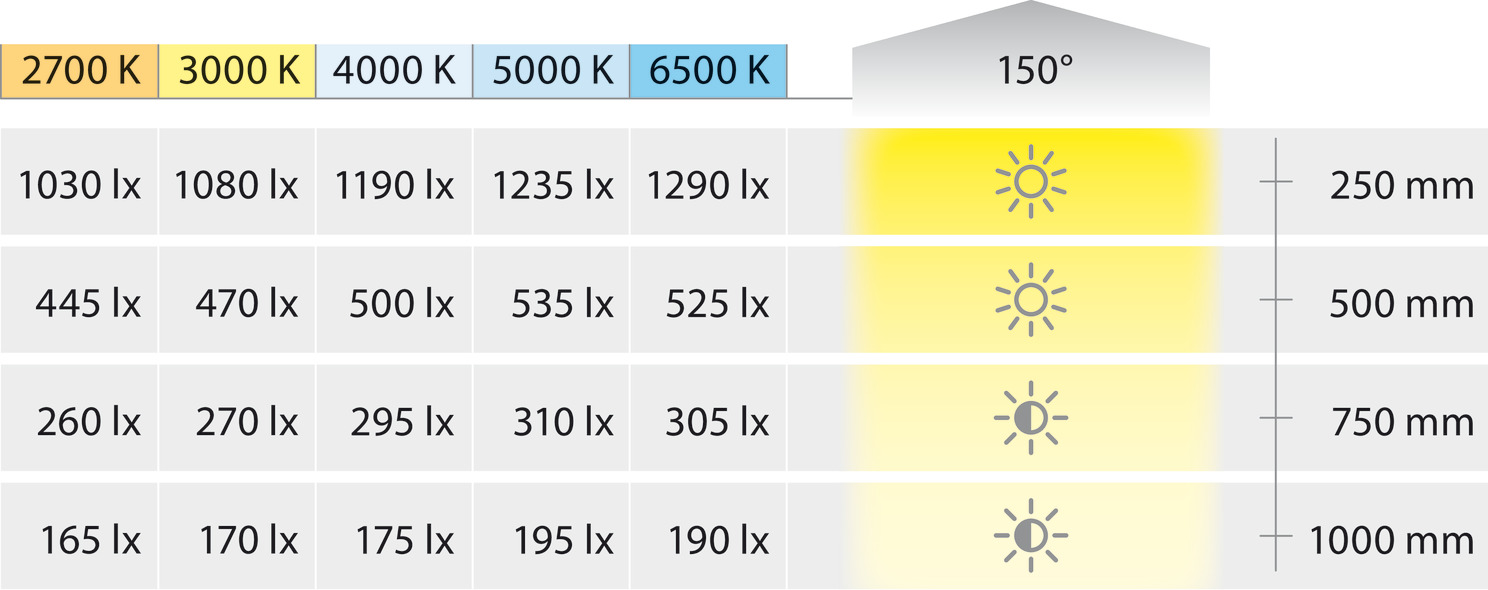

- > refraction angle of 150°
- > can also be shortened between cutting marks
- Nominal voltage : 24.00 V
- Wattage/m : 9.60 W
- Max. strip length (visual) : 5.00 m
- Strip length : 5.00 m
- Dimmable : yes

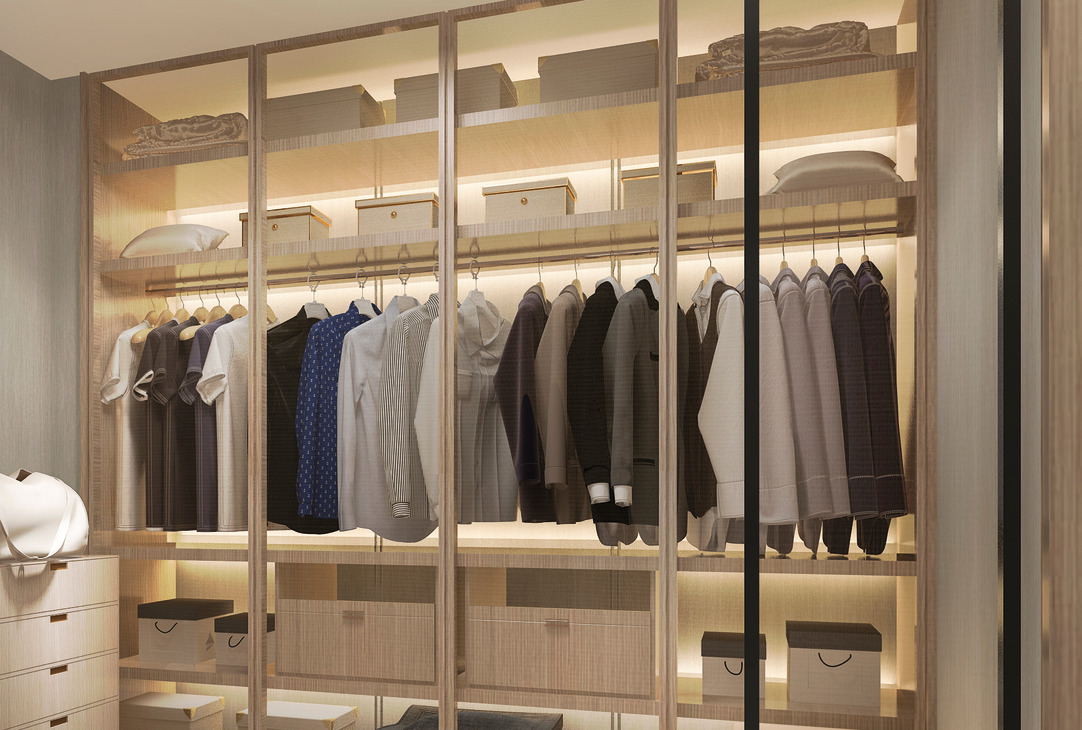

- Area of application : Indirect illumination of furniture and furnishings, Behind glass edges

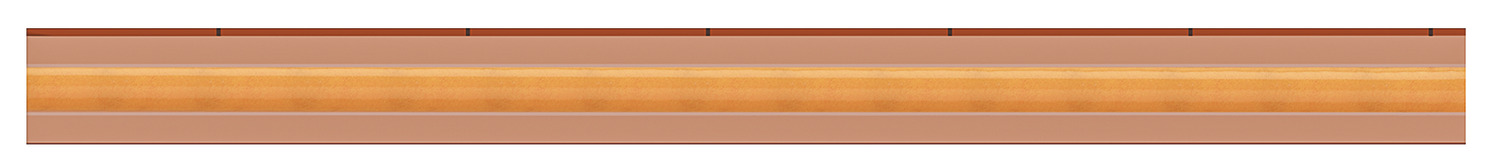

- Version : COB LED, i.e. continuous phosphor coating over all individual LEDs of the entire band, without visible points
- Material : Plastic

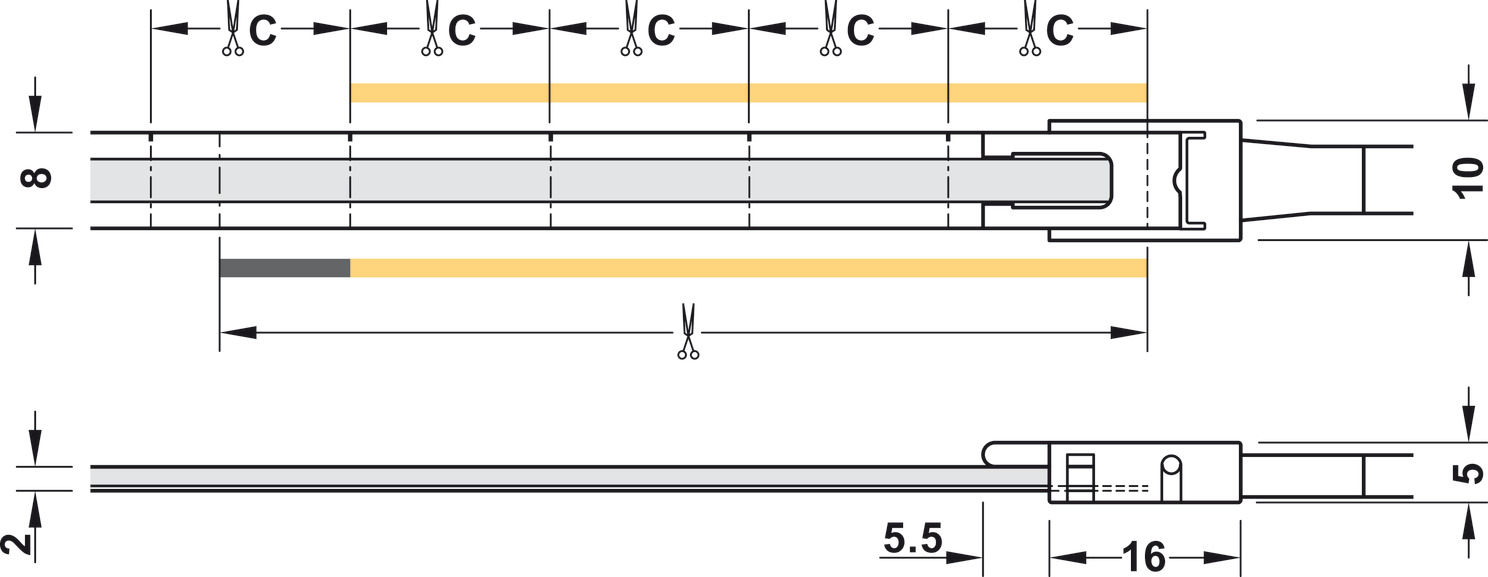

- Strip width : 8.00 mm
- Strip height : 2.00 mm
- Section length : 16.67 mm
- Contact surface length : 5,000.00 mm
- Min. bending radius : 30.00 mm
- Degree of protection : IP20
- Installation : Self-adhesive
- Order reference
- Please order lead separately. Aluminium profile is recommended from 9.6 W/ m.
- Supplied with:

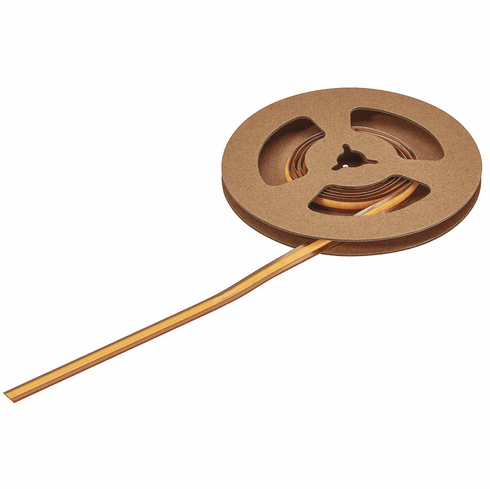

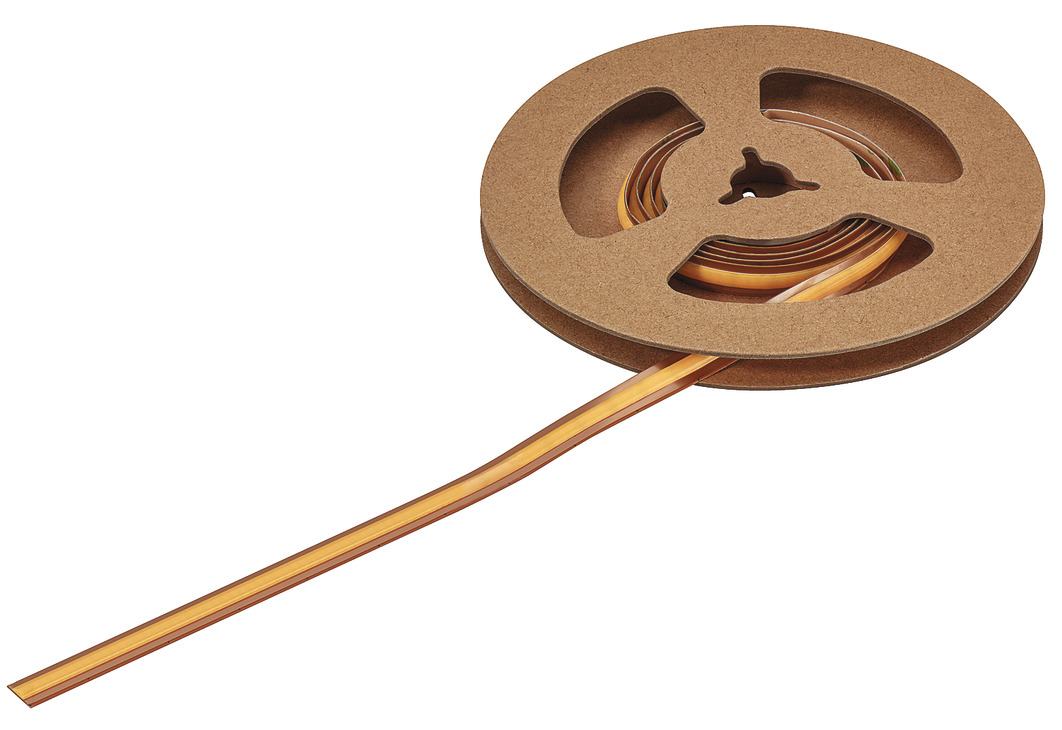

- 1 roll
Additional Information …
Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30 %. Please note: A strip section with a new power supply that follows immediately is noticeably brighter. Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.Data Sheet
Product Resources
Required Products & Optional Accessories
Note: Add the current product in cart before ordering required products below ...
Required Products:
Lead, For Häfele Loox5 Led Strip Light 24 V, 8 Mm, Cob 2-Pin (Monochrome Or Multi-White 2-Wire Technology) (choose one):5 A, 18 AWG, 100 mm
5 A, 18 AWG, 500 mm
5 A, 18 AWG, 2000 mm833.75.762
833.75.763
833.75.764Click to order
Click to order
Click to order
Optional Accessories:- Interconnecting lead, For Häfele Loox5 Led Strip Light 8 Mm Cob 2-Pin (Monochrome Or Multi-White 2-Wire Technology)
- Clip connector, For Häfele Loox5 Led Strip Light 8 Mm Cob 2-Pin (Monochrome Or Multi-White 2-Wire Technology)
- Distributor, Häfele Connect Mesh 24 V 2-pin (monochrome)
