Hafele 833.76.384 LED3052 24 volts direct current 19.2 watts per meter 4000K CRI90 50 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.76.384

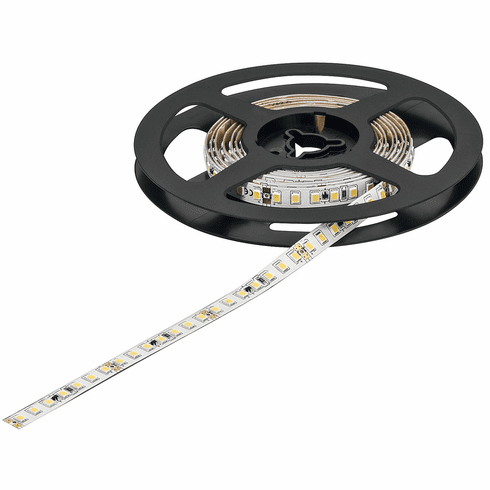

  Product Title: Flexible Strip Light, Häfele Loox5 LED 3052, 24 V, monochrome constant current, (5/16") 8 mm, 140 LEDs/m, 19.2 W/m, Cool white 4000 K, (1968 1/2") 50 m available length

  Category: ,

  Item Details …

  -

  - Häfele constant current technology

  -

  - Uniform brightness over the entire band length

  - Longer service life, visual band length, luminous efficiency

  - Protected from short-term voltage peaks up to 26.4 V

  - Equipped with high-quality Samsung LEDs

  - Nominal voltage : 24.00 V

  - Wattage/m : 19.20 W

  - Strip length :

  - Energy efficiency class : F

  - Height (inch) : 1/16"

  - Length (inch) :

  - Width (inch) : 5/16"

  - Dimmable : yes

  - Area of application : Working areas, Ceiling light direct/indirect

  - Material : Plastic

  - Color : White

  - Strip width : 8.00 mm

  - Section length : 50.00 mm

  - Contact surface length : 3.00 mm

  - Number of LEDs/m : 140

  - Life time : L80/B10: >70,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately.

  - Aluminum profile is recommended from 9.6 W/ m.

  - Supplied with:

  - 1 roll


  Additional Information …

  With constant current strip lights, the maximum strip length (visual) describes a strip section within which the drop in luminous flux is not visually perceptible, not even in comparison to a strip section with a new power supply that follows immediately.Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.
