Hafele 833.76.346 LED3046 24 volts direct current 9.6 watts per meter 2700K CRI90 15 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.76.346

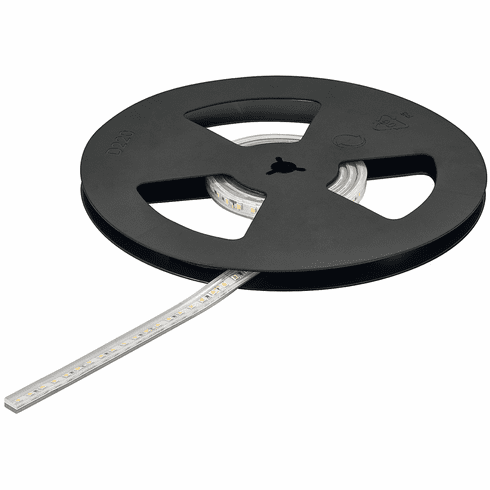

  Product Title: LED strip light with silicone sleeve, Häfele Loox5 LED 3046, 24 V, monochrome, (5/16") 8 mm, 120 LEDs/m, 9,6 W/m, Warm white 2700 K, (590 9/16") 15 m available length

  Category: LED strip light with silicone sleeve, Häfele Loox5 LED 3046, 24 V, monochrome, (5/16") 8 mm, 120 LEDs/m, 9,6 W/m

  Item Details …

  - Equipped with high-quality Samsung® LEDs

  - Nominal voltage : 24.00 V

  - Wattage/m : 9.60 W

  - Max. strip length (visual) : 8.00 m

  - Height (inch) : Strip: 1/16", silicone sleeve: 3/16"

  - Width (inch) : Strip: 5/16", silicone sleeve: 3/8"

  - Dimmable : yes

  - Area of application : Stairs, Mirror, Bathroom (zone 2), Wash basins

  - Material : Silicone

  - Color : White

  - Silicone tube width : 10.00 mm

  - Silicone hose height : 4.80 mm

  - Strip width : 8.00 mm

  - Section length : 50.00 mm

  - Contact surface length : 4.00 mm

  - Life time : L80/B10: >50,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP44

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately.

  - Supplied with:

  - 1 roll


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A strip section with a new power supply that follows immediately is noticeably brighter.For maximum wattage-dependent strip length at the driver, see technical data for LED strip lights.If required, you can implement an IP20 version with leads, interconnecting leads and clip connectors for Häfele Loox5 8 mm monochrome LED strip lights, see accessories for LED strip lights monochrome 8 mm.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Loox5 LED 2063 / 3043 / 3046

  Safety Notes for LED Strip Lights

  UL Certificate E473379 - US

  Loox – Electrical Code Compliance



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead, Häfele Loox5, for LED silicone strip light, monochrome, (5/16") 8 mm (choose one):


  • IP44, Length: 2000 mm (78 3/4"), 5 A/18 AWG, 24 V

    833.95.709

    Click to order



  Optional Accessories:



  • Clip connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Corner connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Interconnecting lead, Häfele Loox5, for LED silicone strip light, monochrome, 8 mm (5/16")
  • End cap set, Häfele Loox5 for LED strip light in 8 mm silicone sleeve
  • Silicone Stripping Tool, for Häfele Loox5 LED silicone strip lights
  • Remote control, Häfele Connect Mesh
  • Wall mounted push button, Häfele Connect Mesh
  • Distributor, Häfele Connect Mesh 24 V 2-pin (monochrome)
