Hafele 833.76.301 LED3040 24 volts direct current 4.8 watts per meter 3000K CRI90 5 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.76.301

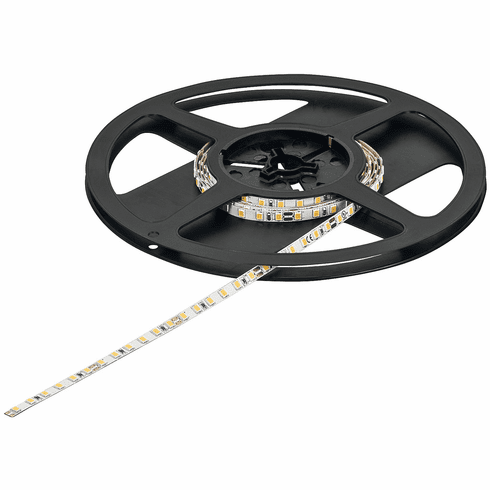

  Product Title: Flexible Strip Light, Häfele Loox5 LED 3040, 24 V, monochrome, (3/16") 5 mm, 120 LEDs/m, 4.8 W/m, Warm white 3000 K, (196 7/8") 5 m available length

  Category: Flexible Strip Light, Häfele Loox5 LED 3040, 24 V, monochrome, (3/16") 5 mm, 120 LEDs/m, 4.8 W/m

  Item Details …

  - Extremely narrow – width 5 mm

  - Nominal voltage : 24.00 V

  - Wattage/m : 4.80 W

  - Max. strip length (visual) : 8.00 m

  - Energy efficiency class : F

  - Height (inch) : 1/16"

  - Width (inch) : 3/16"

  - Dimmable : yes

  - Area of application : Shelves, Shelving units, Display cabinets

  - Material : Plastic

  - Color : White

  - Strip width : 5.00 mm

  - Contact surface length : 3.00 mm

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately.

  - Supplied with:

  - 1 roll


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A strip section with a new power supply that follows immediately is noticeably brighter.Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.
