Hafele 833.75.548 LED 3094 24V puck light, 2.5W, CRI90, 4000K, nickel, 2 meter cable

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.75.548

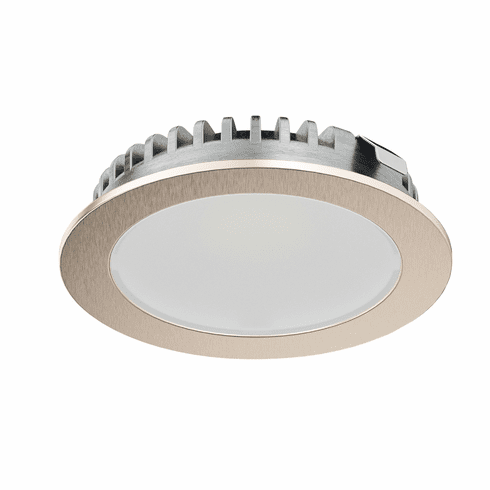

  Product Title: Recess Mounted Downlight, Häfele Loox LED 3094, zinc alloy, 24 V, Aluminum, cool white 4000 K, stainless steel coloured, nickel plated, energy efficiency class G

  Category: Recess Mounted Downlight, Häfele Loox LED 3094, zinc alloy, 24 V, Aluminum

  Item Details …

  - Large light emission surface, homogeneous appearance

  - Nominal voltage : 24.00 V

  - Wattage : 2.50 W

  - Color rendering index Ra : >90

  - Drill hole Ø : 58.00 mm

  - Number of LEDs : 6

  - Model : LED 3094

  - Installation : For mounting in drilled hole and for clamp fixing

  - Installation reference : Drill hole ? from 58 - 60 mm possible.

  - Energy efficiency class : G

  - Drill hole Ø : 2 5/16"

  - Dimmable : yes

  - Area of application : For display cabinets, shelving units and shelves

  - Housing material : Aluminum

  - Diffuser material : Plastic

  - Design : Plastic panel

  - Life time : 30,000 h

  - Color rendering index R9 : >50

  - Degree of protection : IP44 (recess mounted light); IP20 (surface mounted downlight)

  - Cable length : 2,000.00 mm

  - Supplied with:

  - 1 light with 2000 mm (78 3/4") lead

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 144



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Housing for undermounted light, Round, for Häfele Loox LED 2094/3094
  • Remote control, Häfele Connect Mesh
  • Sensor Switch, Modular
  • Distributor, Häfele Connect Mesh 24 V 2-pin (monochrome)
