Hafele 833.75.456 LED3059 24V/1.8W 30K/CRI90/ALUMINUM

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.75.456

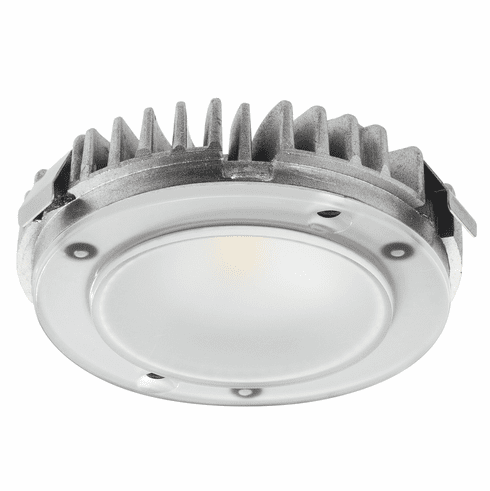

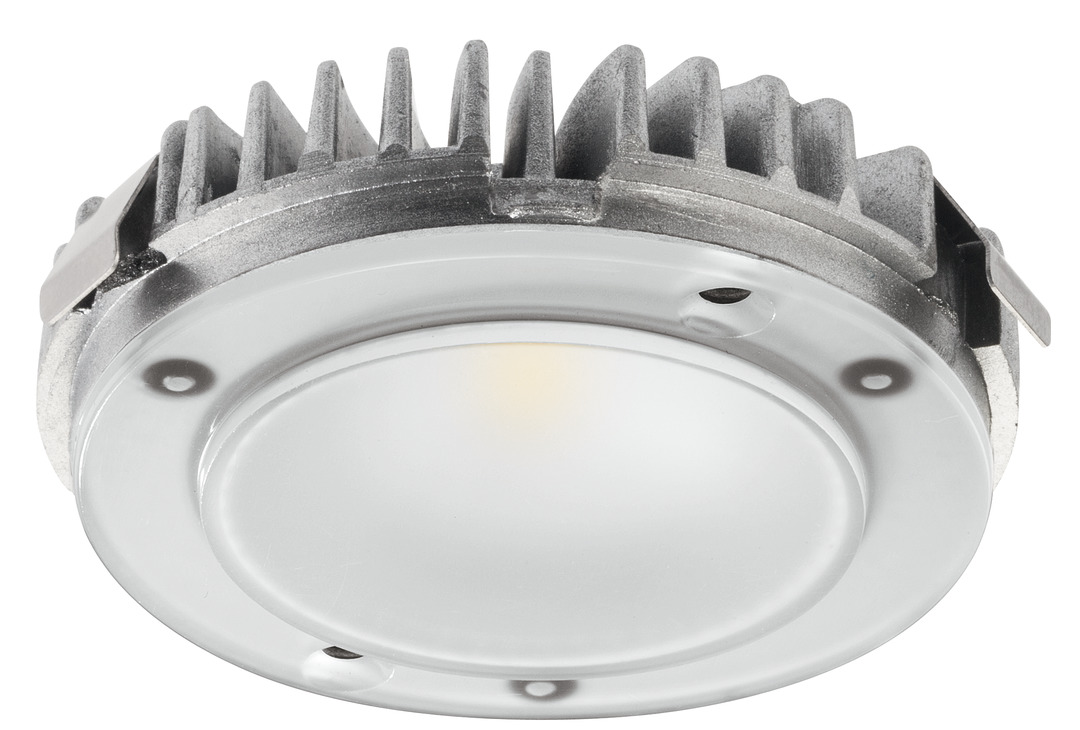

  Product Title: Modular Puck Light, monochrome, Häfele Loox5 LED 3059, aluminum, 24 V, Drill hole ?: 58 mm (2 5/16"), Warm white 3000 K

  Category: Modular Puck Light, monochrome, Häfele Loox5 LED 3059, aluminum, 24 V, Drill hole ?: 58 mm (2 5/16")

  Item Details …

  - High efficacy puck light; high lumens/watt

  - Equipped with high quality Samsung® LEDs

  - Medium intensity

  - Nominal voltage : 24.00 V

  - Wattage : 3.40 W

  - Drill hole Ø : 58.00 mm

  - Model : LED 3059

  - Energy efficiency class : G

  - Drill hole Ø : 2 5/16"

  - Housing material : Aluminum

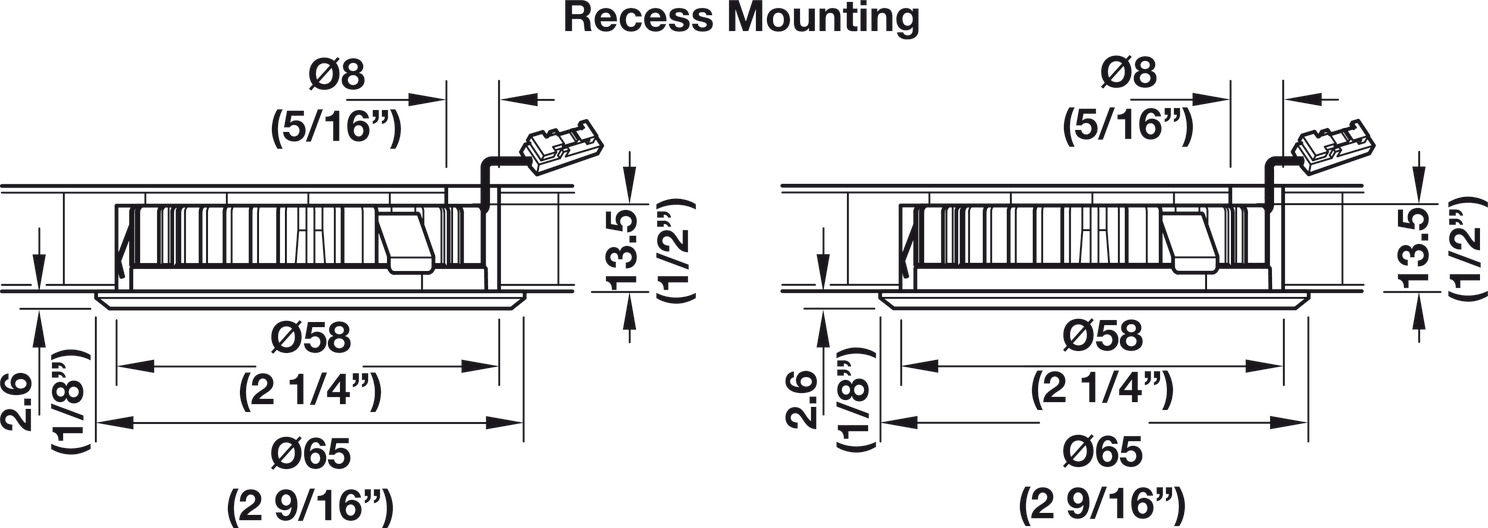

  - Degree of protection : IP45 (recess mounted light); IP20 (surface mounted downlight)

  - Supplied with:

  - 1 light


  Additional Information …

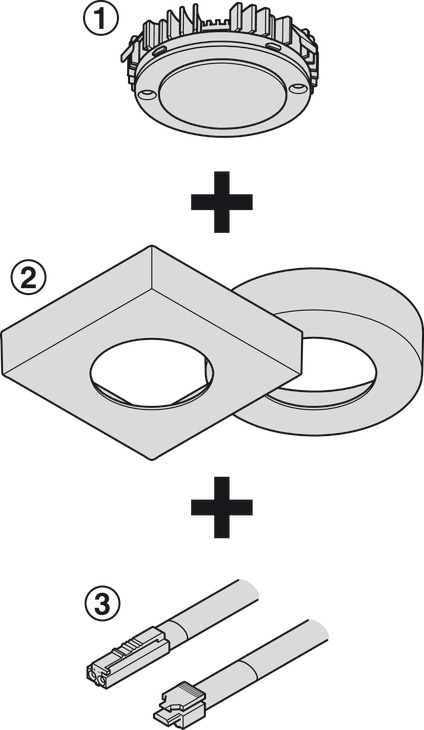

  Order lead and housing separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Certificate of Compliance LED2059_3059

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 135



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Recess Mount Trim Ring, for Recess Mounted Modular Pucks for Häfele Loox5 (choose one):


  • Round, Silver colored Round, Black Round, White Round, chrome plated, shiny Round, brass colored Round, Copper plated Square, Silver colored Square, Black Square, White Square, chrome plated, shiny Square, brass colored Square, Copper plated drill hole: Ø58 mm (2 5/16"), stainless steel colored nickel plated drill hole: Ø58 mm (2 5/16"), stainless steel colored nickel plated

    833.72.500 833.72.501 833.72.502 833.72.503 833.72.504 833.72.505 833.72.506 833.72.507 833.72.508 833.72.509 833.72.510 833.72.511 833.72.524 833.72.525

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Recess Mounted Housing Trim Ring, for Loox LED 2025/2026 (choose one):


  • round, Silver colored square, silver colored round, Black round, Matt nickel round, White square, black square, matt nickel square, white round, Anthracite round, Brown round, Stainless steel colored square, Anthracite square, Brown square, Stainless steel colored

    833.72.126 833.72.127 833.72.168 833.72.170 833.72.171 833.72.172 833.72.174 833.72.175 833.72.380 833.72.381 833.72.382 833.72.383 833.72.384 833.72.385

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Surface Mounted Housing Trim Ring, for Loox LED 2025/2026, 2091/3091, 2092/3092 (choose one):


  • Round, Silver colored Square, Silver colored Round, Black Round, Matt nickel Round, White Square, Black Square, Matt nickel Square, White Round, Bronze brown Round, Anthracite Round, Stainless steel colored Square, Anthracite Square, Bronze brown Square, Stainless steel colored

    833.72.124 833.72.125 833.72.160 833.72.162 833.72.163 833.72.164 833.72.166 833.72.167 833.72.192 833.72.193 833.72.194 833.72.195 833.72.196 833.72.197

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Surface Mount Trim Ring, for Surface Mounted Modular Pucks for Häfele Loox5 (choose one):


  • Round, Silver colored Round, Black Round, White Round, chrome plated, shiny Round, brass colored Round, Copper plated Square, Silver colored Square, Black Square, White Square, chrome plated, shiny Square, brass colored Square, Copper plated drill hole: Ø58 mm (2 5/16"), stainless steel colored nickel plated drill hole: Ø58 mm (2 5/16"), stainless steel colored nickel plated

    833.72.512 833.72.513 833.72.514 833.72.515 833.72.516 833.72.517 833.72.518 833.72.519 833.72.520 833.72.521 833.72.522 833.72.523 833.72.526 833.72.527

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order
