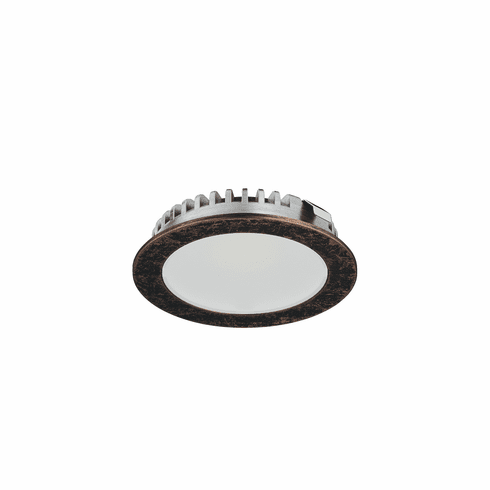

Hafele 833.75.333 LED 3094 24V puck light, 2.5W, CRI90, 3000K, bronze, 2 meter cable

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.75.333

  Product Title: Recess Mounted Downlight, Round, Häfele Loox LED 3094, zinc alloy, 24 V, Aluminum, Light color: Warm white 3000K, luminous flux: 160 lm, bronze colored

  Category: Recess Mounted Downlight, Häfele Loox LED 3094, zinc alloy, 24 V, Aluminum

  Item Details …

  - Large light emission surface, homogeneous appearance

  - Nominal voltage : 24.00 V

  - Wattage : 2.50 W

  - Color rendering index Ra : >90

  - Drill hole Ø : 58.00 mm

  - Number of LEDs : 6

  - Model : LED 3094

  - Installation : For mounting in drilled hole and for clamp fixing

  - Installation reference : Drill hole ? from 58 - 60 mm possible.

  - Energy efficiency class : G

  - Drill hole Ø : 2 5/16"

  - Dimmable : yes

  - Area of application : For display cabinets, shelving units and shelves

  - Housing material : Aluminum

  - Diffuser material : Plastic

  - Design : Plastic panel

  - Life time : 30,000 h

  - Color rendering index R9 : >50

  - Degree of protection : IP44 (recess mounted light); IP20 (surface mounted downlight)

  - Cable length : 2,000.00 mm

  - Supplied with:

  - 1 light with 2000 mm (78 3/4") lead
