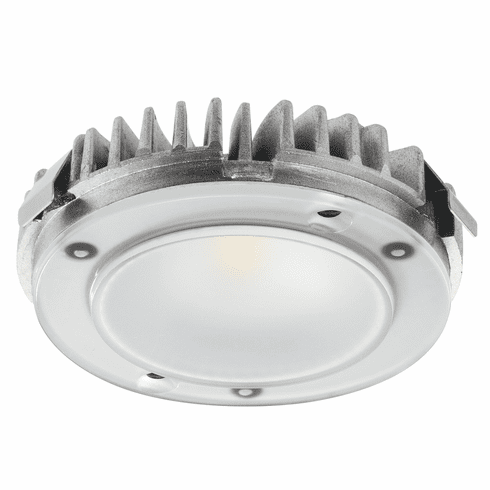

Hafele 833.75.178 LED3091 24 volt, 3.4 watt, Multi-white 3-wire, 2700-5000k, CRI90, aluminum

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.75.178

  Product Title: Recess/surface mounted lights, Modular, multi-white, Häfele Loox5 LED 3091, aluminum, 24 V, Drill hole ?: 58 mm (2 5/16"), Light color: Warm white 2700 K to cool white 5000 K

  Category: Recess/surface mounted lights, Modular, multi-white, Häfele Loox5 LED 3091, aluminum, 24 V, Drill hole ?: 58 mm (2 5/16"), Light color: Warm white 2700 K to cool white 5000 K

  Item Details …

  - Modular system: Wide range of design options with interchangeable housings and leads

  - Light with integrated cable socket for quick conversion

  - High luminous efficacy

  - Color temperature : 2700?–?5,000 K

  - Light color : Warm white to cool white

  - Luminous flux : 240?–?270 lm

  - Nominal voltage : 24.00 V

  - Wattage : 3.40 W

  - Luminous efficacy : 72?–?80 lm/W

  - Color rendering index Ra : >90

  - Drill hole Ø : 58.00 mm

  - Housing color/finish : silver colored

  - Model : LED 3091

  - Installation : For mounting in drilled hole and for clamp fixing, or for screw fixing

  - Version : ModularMulti-white

  - Energy efficiency class : F

  - Drill hole Ø : 2 5/16"

  - Dimmable : yes

  - Area of application : Work place lighting, kitchen and living room furniture, counters

  - Housing material : Aluminum

  - Color rendering index R9 : >55

  - Degree of protection : IP45 (recess mounted light); IP20 (surface mounted downlight)

  - Order reference

  - Please order light module, housing and lead separately.

  - Color control via Häfele Connect Mesh 6-way distributor with multi-white adapter and remote control or smartphone. Please order separately.

  - Installation of the free Häfele Connect Mesh app is required.

  - Supplied with:

  - 1 light module


  Additional Information …

  The IP44 degree of protection is reduced to IP20 when surface mounting or recess mounting with through hole.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for LED 2091 3091

  Loox – Electrical Code Compliance

  Planning data LDT (DIALux) 2700 K

  Planning data LDT (DIALux) 5000 K



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead with Snap-In Connector, Häfele Loox5, 3-wire 24 AWG, 12 V (choose one):


  • For modular multi-white lights, Cable length: 2 m (78 3/4")

    833.95.790

    Click to order



  Adapter, Häfele Loox5, multi-white, for Häfele Connect Mesh 6-way distributor (choose one):


  • For Häfele Connect Mesh 6-way distributor, Voltage 24 V, max. connected wattage 90 W

    833.77.830

    Click to order



  Surface Mounted Housing Trim Ring, for Loox LED 2025/2026, 2091/3091, 2092/3092 (choose one):


  • Round, Silver colored Square, Silver colored Round, Black Round, Matt nickel Round, White Square, Black Square, Matt nickel Square, White Round, Bronze brown Round, Anthracite Round, Stainless steel colored Square, Anthracite Square, Bronze brown Square, Stainless steel colored

    833.72.124 833.72.125 833.72.160 833.72.162 833.72.163 833.72.164 833.72.166 833.72.167 833.72.192 833.72.193 833.72.194 833.72.195 833.72.196 833.72.197

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Recess Mounted Housing Trim Ring, for Loox LED 2025/2026 (choose one):


  • round, Silver colored square, silver colored round, Black round, Matt nickel round, White square, black square, matt nickel square, white round, Anthracite round, Brown round, Stainless steel colored square, Anthracite square, Brown square, Stainless steel colored

    833.72.126 833.72.127 833.72.168 833.72.170 833.72.171 833.72.172 833.72.174 833.72.175 833.72.380 833.72.381 833.72.382 833.72.383 833.72.384 833.72.385

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Distributor, Häfele Connect Mesh 24 V 2-pin (monochrome)
