Hafele 833.75.174 LED3092 24volt, 3.4watts 2700K, CRI90, aluminum

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.75.174

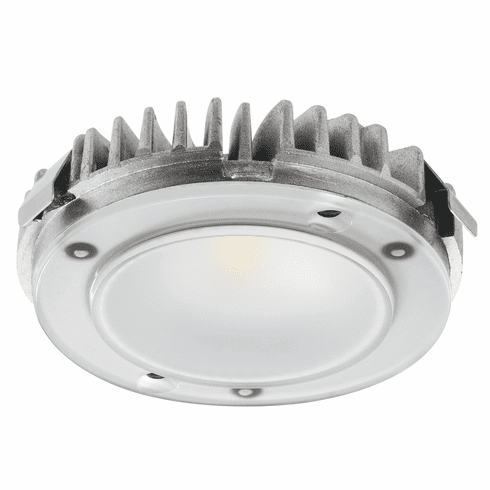

  Product Title: Recess/surface mounted downlight, Modular, monochrome, Häfele Loox5 LED 3092, aluminum, 24 V, Drill hole ?: 58 mm (2 5/16"), Warm white 2700 K

  Category: Recess/surface mounted downlight, Modular, monochrome, Häfele Loox5 LED 3092, aluminum, 24 V, Drill hole ?: 58 mm (2 5/16")

  Item Details …

  - Modular system: Wide range of design options with interchangeable housings and leads

  - Light with integrated cable socket for quick conversion

  - Equipped with high-quality Samsung LEDs

  - Nominal voltage : 24.00 V

  - Wattage : 3.40 W

  - Drill hole Ø : 58.00 mm

  - Model : LED 3092

  - Installation : For mounting in drilled hole and for clamp fixing, or for screw fixing

  - Installation reference : Degree of protection IP45 is reduced to IP20 when using housing for undermounted light.

  - Version :

  - Energy efficiency class : G

  - Drill hole Ø : 2 5/16"

  - Dimmable : yes

  - Area of application : Work place lighting, kitchen and living room furniture, counters

  - Housing material : Aluminum

  - Degree of protection : IP45 (recess mounted light); IP20 (surface mounted downlight)

  - Order reference

  - Please order housing and lead separately.

  - Supplied with:

  - 1 light module


  Additional Information …

  The IP44 degree of protection is reduced to IP20 when surface mounting or recess mounting with through hole.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  Loox – Electrical Code Compliance

  Planning data LDT (DIALux)



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Surface Mounted Housing Trim Ring, for Loox LED 2025/2026, 2091/3091, 2092/3092 (choose one):


  • Round, Silver colored Square, Silver colored Round, Black Round, Matt nickel Round, White Square, Black Square, Matt nickel Square, White Round, Bronze brown Round, Anthracite Round, Stainless steel colored Square, Anthracite Square, Bronze brown Square, Stainless steel colored

    833.72.124 833.72.125 833.72.160 833.72.162 833.72.163 833.72.164 833.72.166 833.72.167 833.72.192 833.72.193 833.72.194 833.72.195 833.72.196 833.72.197

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Recess Mounted Housing Trim Ring, for Loox LED 2025/2026 (choose one):


  • round, Silver colored square, silver colored round, Black round, Matt nickel round, White square, black square, matt nickel square, white round, Anthracite round, Brown round, Stainless steel colored square, Anthracite square, Brown square, Stainless steel colored

    833.72.126 833.72.127 833.72.168 833.72.170 833.72.171 833.72.172 833.72.174 833.72.175 833.72.380 833.72.381 833.72.382 833.72.383 833.72.384 833.72.385

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Distributor, Häfele Connect Mesh 24 V 2-pin (monochrome)
