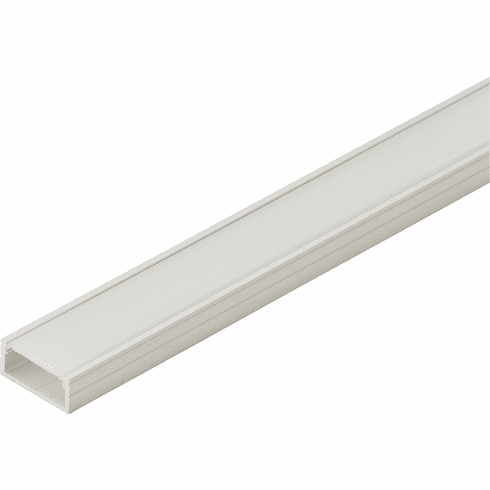

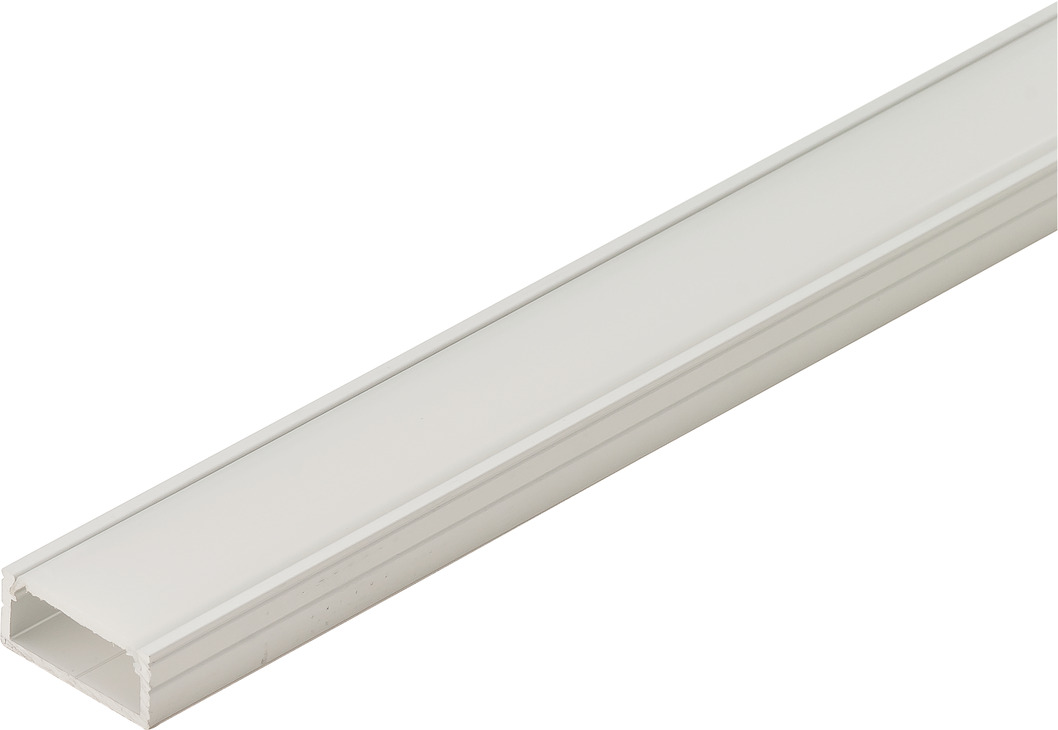

Hafele 833.74.840 Aluminum Profile, for Surface Mounting For Loox LED 2013/2015/2029/2037/3015

Product Information

• Description

  Hafele 833.74.840 Aluminum Profile, for Surface Mounting
  For Loox LED 2013/2015/2029/2037/3015

  Additional items required to complete installation:
  Square End Cap, for Aluminum Profile

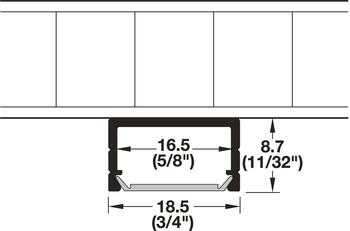

  Dim. : L x W x H: (98 3/8" x 3/4" x 5/16") 2500 x 18.54 x 8 mm

  Mounting : For surface mounting

  Material : Aluminum, silver colored anodized

  Note :

  Not suitable for use with LED 3028.

  Not suitable for permanent operation (‰¥8 h/day) with LED 3013 and LED 3015.

  Distance of retaining clips max. 500 mm.

  LED points are always visible when this profile is used.





  Order reference :

  Aluminum profile supplied without lens. Please order lens separately.



  Optional items:
  End cap, for Aluminum Profile, profile height 8.5 mm
  Retaining clip 90°, for aluminium profile for surface mounting
  Retaining clip 40°, for aluminium profile for surface mounting
  Profile switch
  Cover for Extrusions,
