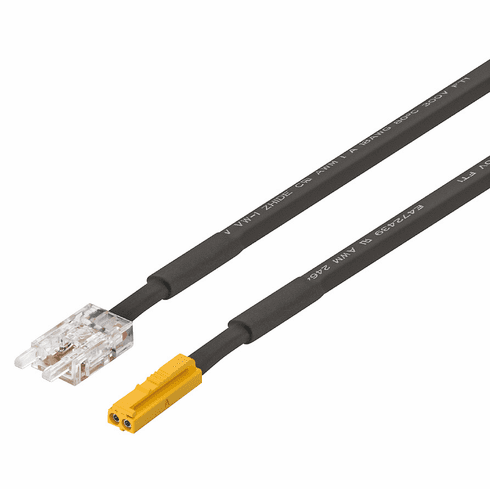

Hafele 833.74.695 LOOX5 LEAD RIBBON COB/12V/0.5M

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.695

  Product Title: Lead, Loox5 for COB Lighting, 12V, 5 A, 18 AWG, 500 mm length

  Category: Lead, Loox5 for COB Lighting, 12V, 5 A, 18 AWG

  Item Details …

  - Exclusively for COB

  - Color system : monochrome or MW 2-wire-Technology

  - Input ports : 1 x plug, Loox5 2-pin 12 V

  - Connections : 1 x Clip, Loox5 LED strip light 8 mm monochrome

  - Nominal voltage : 12.00 V

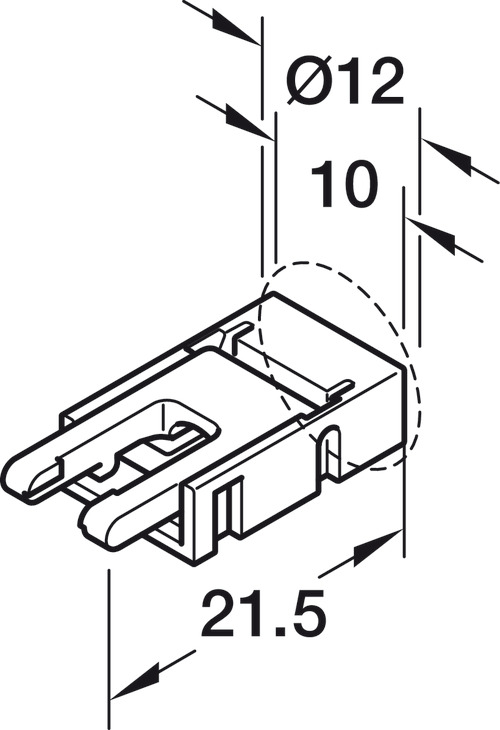

  - Clip width : 10.00 mm

  - Current carrying capacity : 5.00 A

  - Wire cross section AWG : 18.00

  - Material : Plastic

  - Number of leads : 2.00

  - Plug drill hole Ř : 8.00 mm

  - Clip drill hole Ř : 12.00 mm

  - Supplied with:

  - 1 lead plug/clip

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Hafele_Lighting_2024|Page 260

  Hafele_Lighting_2024|Page 28

  Hafele_Lighting_2024|Page 66



• Required Products & Optional Accessories

  Optional Accessories:



  • Adapter, Loox5 device – Loox driver
