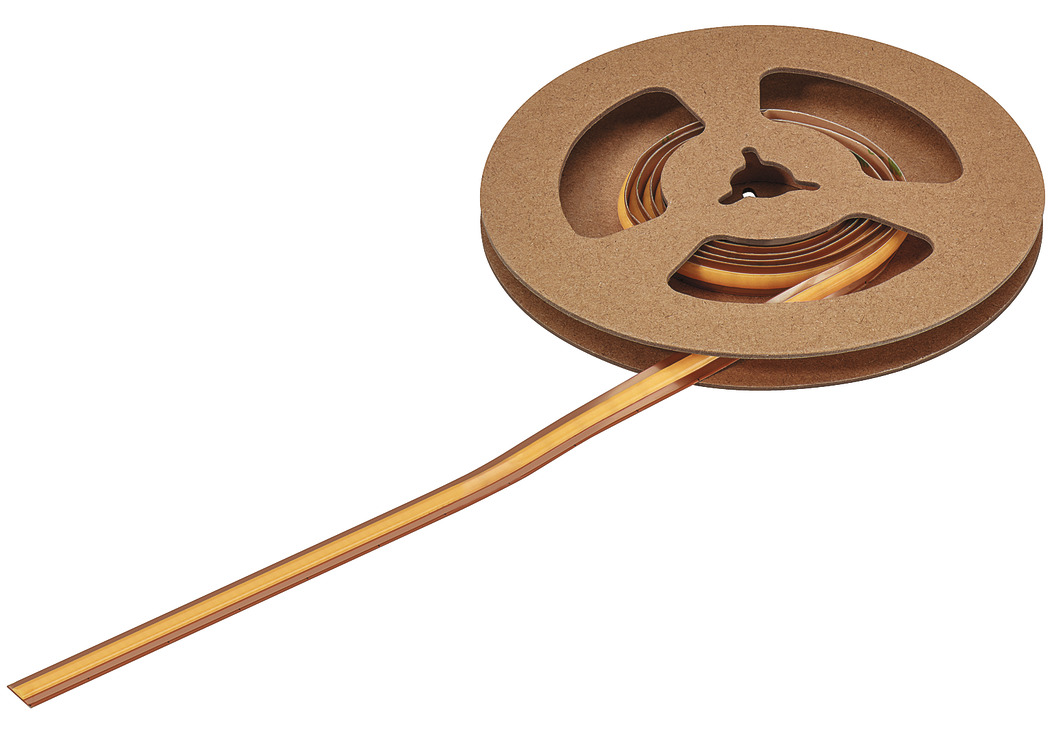

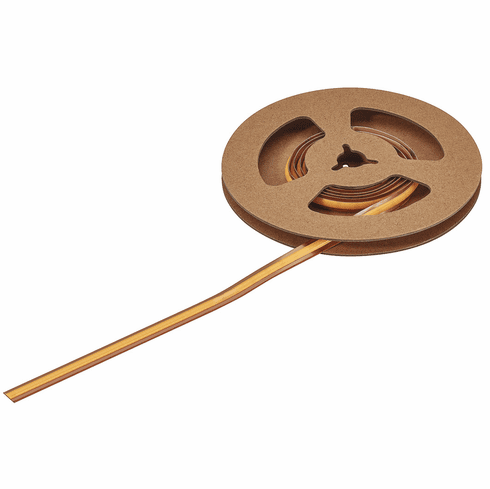

Hafele 833.74.500 LED strip light, COB, Häfele Loox5 LED 2103 12 V 8 mm 2-pin (monochrome), 480 LEDs/m, 4.8 W/m, IP20

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.500

  Product Title: LED strip light, COB Gold, Häfele Loox5 LED 2103 12 V 8 mm 2-pin (monochrome), 480 LEDs/m, 4.8 W/m, IP20, warm white 2700 K, 5 m, energy efficiency class G

  Category: LED strip light, COB Gold, Häfele Loox5 LED 2103 12 V 8 mm 2-pin (monochrome), 480 LEDs/m, 4.8 W/m, IP20,

  Item Details …

  - > homogenous illumination, no visible LED points

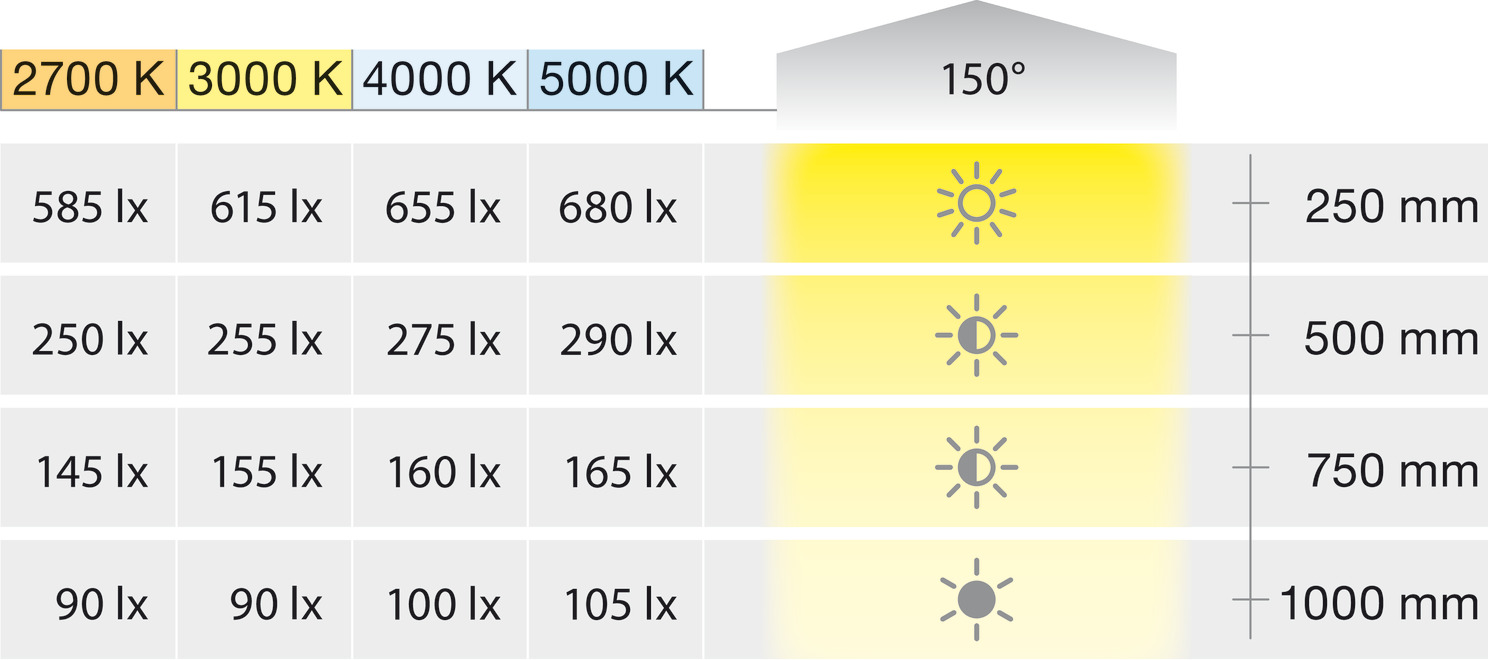

  - > refraction angle of 150°

  - > can also be shortened between cutting marks

  - Nominal voltage : 12.00 V

  - Wattage/m : 4.80 W

  - Max. strip length (visual) : 3.00 m

  - Strip length : 5.00 m

  - Dimmable : yes

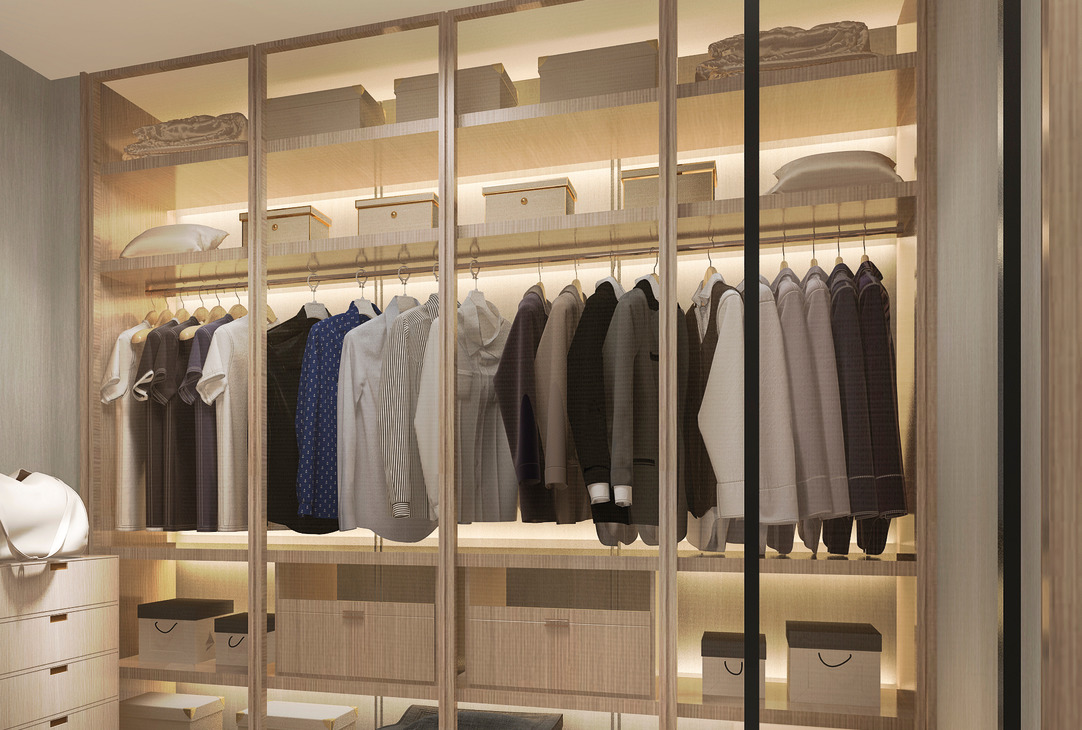

  - Area of application : Indirect illumination of furniture and furnishings, Behind glass edges

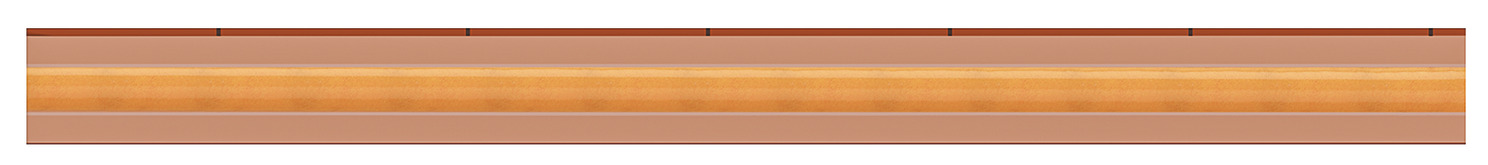

  - Version : COB LED, i.e. continuous phosphor coating over all individual LEDs of the entire band, without visible points

  - Material : Plastic

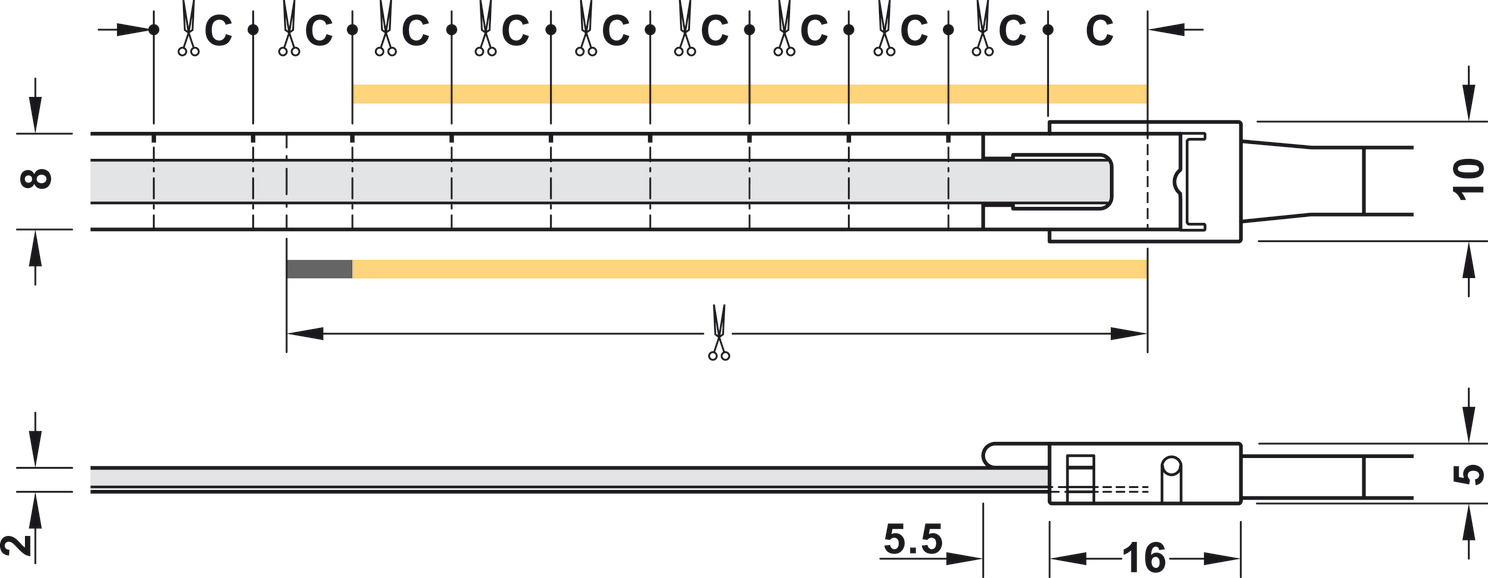

  - Strip width : 8.00 mm

  - Strip height : 2.00 mm

  - Section length : 8.33 mm

  - Contact surface length : 5,000.00 mm

  - Min. bending radius : 30.00 mm

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately.

  - Supplied with:

  - 1 roll


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30 %. Please note: A strip section with a new power supply that follows immediately is noticeably brighter. Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for COB monochrome

  Hafele_Lighting_2024|Page 23

  Hafele_Lighting_2024|Page 26



• Brand PDF Catalogs

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead, Loox5 for COB Lighting, 12V (choose one):


  • 5 A, 18 AWG, 100 mm length 5 A, 18 AWG, 500 mm length 5 A, 18 AWG, 2000 mm length

    833.74.694 833.74.695 833.74.696

    Click to order Click to order Click to order



  Optional Accessories:



  • Interconnecting lead, For Häfele Loox5 Led Strip Light 8 Mm Cob 2-Pin (Monochrome Or Multi-White 2-Wire Technology)
  • Clip connector, For Häfele Loox5 Led Strip Light 8 Mm Cob 2-Pin (Monochrome Or Multi-White 2-Wire Technology)
  • Distributor, Häfele Connect Mesh 12 V with switching function 2-pin (monochrome)
