Hafele 833.74.431 LED2087, 12V, 9.6 watts per meter, 2-wire multi-white, 2700-5000k, 50 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.431

  Product Title: LED Strip Light, Häfele Loox5 LED 2087, 12 V, Tunable White, 2-wire, (5/16") 8 mm, 2 x 120 LEDs/m, 9.6 W/m, 50 m

  Category: LED Strip Light, Häfele Loox5 LED 2087, 12 V, Tunable White, 2-wire, (5/16") 8 mm, 2 x 120 LEDs/m, 9.6 W/m

  Item Details …

  - Tunable color temperature (2700K-5000K) without flickering

  - Uses 2-Wire Cables; no adapters needed

  - Color temperature : 2700?–?5,000 K

  - Light color : Warm white to cool white

  - Nominal voltage : 12.00 V

  - Wattage/m : 9.60 W

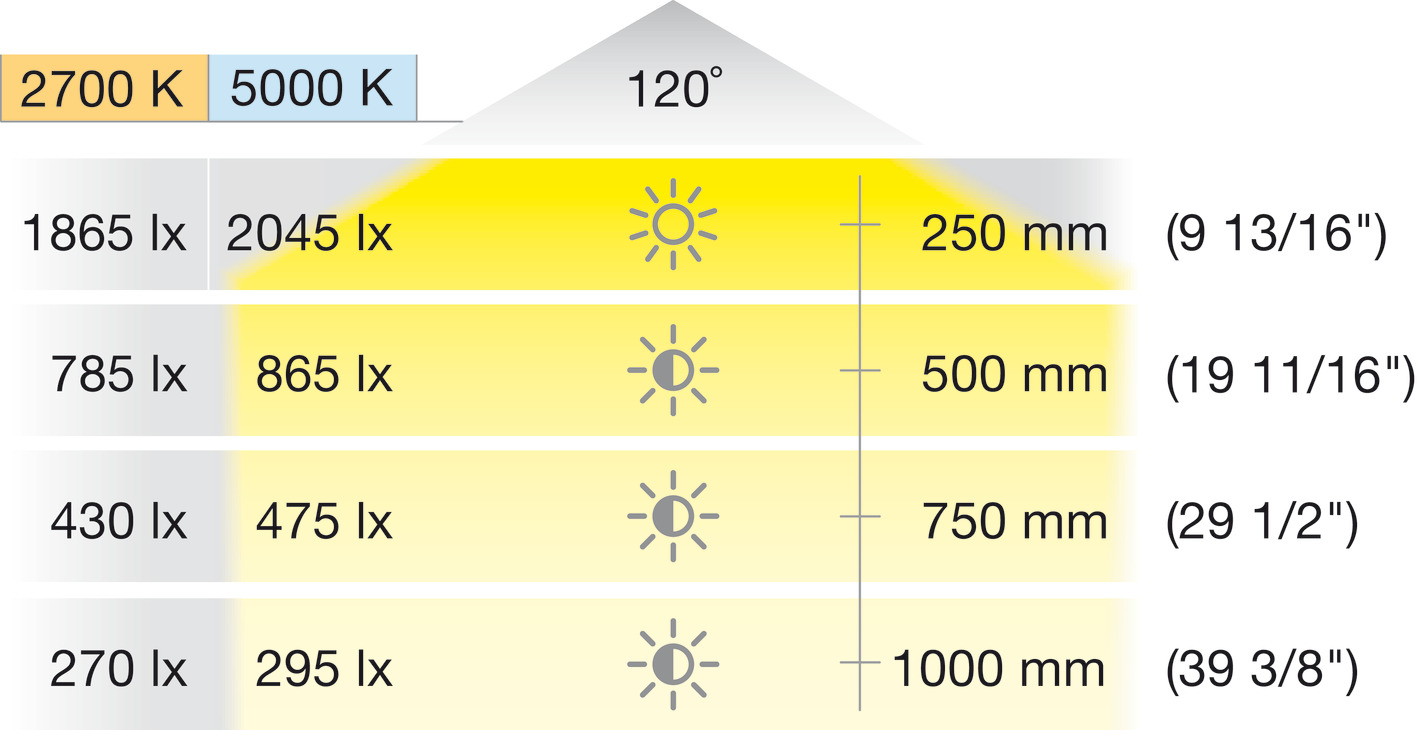

  - Luminous flux/m : 825?–?930 lm

  - Luminous efficacy : 86?–?97 lm/W

  - Max. strip length (visual) : 8.50 m

  - Height (inch) : 1/16"

  - Width (inch) : 5/16"

  - Dimmable : yes

  - Area of application : Store fixtures, Storage spaces, Working areas, Reading areas

  - Version : 2-Wire Multi-white

  - Material : Plastic

  - Color : White

  - Strip width : 8.00 mm

  - Strip height : 1.30 mm

  - Section length : 25.00 mm

  - Contact surface length : 4.00 mm

  - Number of LEDs/m : 120

  - Life time : L80/B10 >50,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP20

  - Installation : Self-adhesive

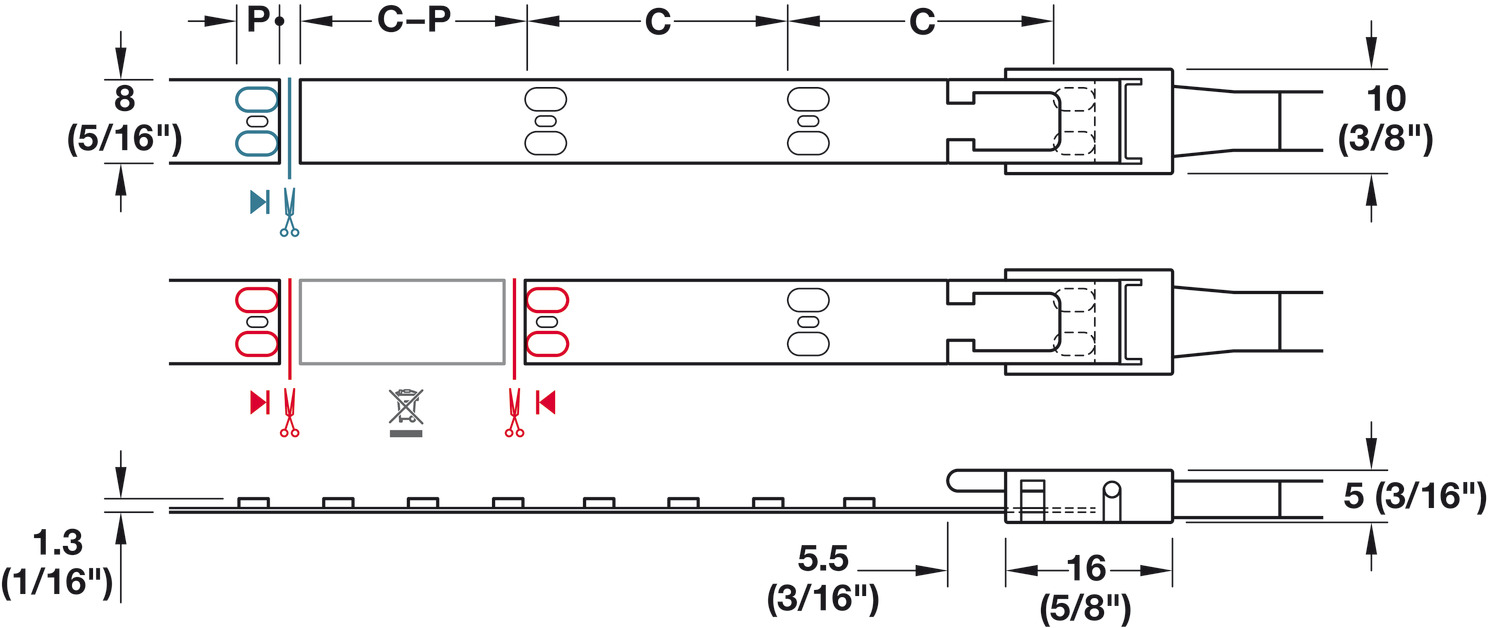

  - Installation reference : Optimized light mixtureCool white and warm white LEDs in the smallest of spacesOptimal light mixture without flickeringCut LED strip light to length (one contact side remains on the remainderpiece; reusable). Connect LED strip lights (two contact sides required).C = section length P = length of contact surface

  - Order reference

  - Please order leads separately. Color control via Häfele Connect Mesh 4-way distributor 850.00.912. Please order separately.

  - Color temperature can only be controlled via Häfele Connect Mesh 4-way

  - distributor (850.00.912) and remote control or smartphone; or with 6-way

  - distributor with manual 2-wire tunable white control (833.95.894). Please

  - order separately.

  - Supplied with:

  - 1 roll


  Additional Information …

  Maximum visual strip length applies to an imperceptible drop in luminous flux of max. 30%. Maximum wattage-dependent strip length on the driver, see technical data for LED strip lights.
