Hafele 833.74.372 LED2077 12 volts direct current 9.6 watts per meter 2700K CRI90 5 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.372

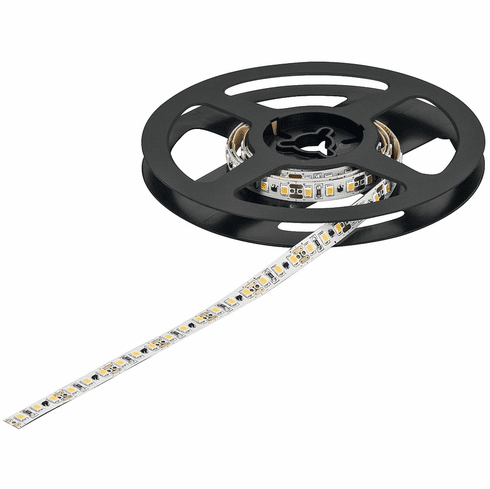

  Product Title: Flexible Strip Light, Häfele Loox5 LED 2077, 12 V, monochrome constant current, (5/16") 8 mm, 120 LEDs/m, 9.6 W/m, Warm white 2700 K, (196 7/8") 5 m available length

  Category: Flexible Strip Light, Häfele Loox5 LED 2077, 12 V, monochrome constant current, (5/16") 8 mm, 120 LEDs/m, 9.6 W/m

  Item Details …

  -

  - Häfele constant current technology

  -

  - Uniform brightness over the entire band length

  - Longer service life, visual band length, luminous efficiency

  - Protected from short-term voltage peaks up to 16 V

  - Equipped with high-quality Samsung® LEDs

  - Nominal voltage : 12.00 V

  - Wattage/m : 9.60 W

  - Max. strip length (visual) : 6.20 m

  - Height (inch) : 1/16"

  - Width (inch) : 5/16"

  - Dimmable : yes

  - Area of application : Caravans, behind furniture and objects, Ceiling light direct/indirect, Boats

  - Material : Plastic

  - Color : White

  - Strip width : 8.00 mm

  - Section length : 25.00 mm

  - Contact surface length : 4.00 mm

  - Life time : L80/B10: >70,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately.

  - Aluminum profile is recommended from 9.6 W/ m.

  - Supplied with:

  - 1 roll


  Additional Information …

  With constant current strip lights, the maximum strip length (visual) describes a strip section within which the drop in luminous flux is not visually perceptible, not even in comparison to a strip section with a new power supply that follows immediately.Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox Strip Lights Mounting Instructions

  Safety Notes for LED Strip Lights

  UL Certificate E473379 - US

  Loox – Electrical Code Compliance



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"), AWG 18 (choose one):


  • Also for constant current strip lights, Length: 100 mm (4"), 5 A/18, 12V Also for constant current strip lights, Length: 2000 mm (78 3/4"), 5 A/18, 12V Also for constant current strip lights, Length: 500 mm (19 11/16"), 5 A/18

    833.93.736 833.95.700 833.95.701

    Click to order Click to order Click to order



  Optional Accessories:



  • Interconnecting lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Clip connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Corner connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Remote control, Häfele Connect Mesh
  • Wall mounted push button, Häfele Connect Mesh
  • Distributor, Häfele Connect Mesh 12 V with switching function 2-pin (monochrome)
