Hafele 833.74.351 LED2063, 12 volts direct current 4.8 watts per meter 5000K CRI90 15 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.351

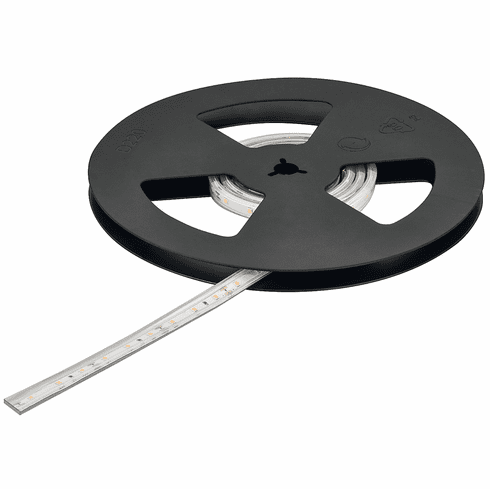

  Product Title: LED strip light with silicone sleeve, Häfele Loox5 LED 2063, 12 V, monochrome, (3/8") 10 mm, 60 LEDs/ m, 4.8W/ m, Cool white 5000 K, (590 9/16") 15 m length

  Category: ,

  Item Details …

  - Encased in silicone; a profile is not required.

  - Equipped with high quality Samsung LEDs

  - Nominal voltage : 12.00 V

  - Wattage/m : 4.80 W

  - Max. strip length (visual) : 6.00 m

  - Height (inch) : Strip: 1/16", silicone sleeve: 3/16"

  - Width (inch) : Strip: 5/16", silicone sleeve: 3/8"

  - Dimmable : yes

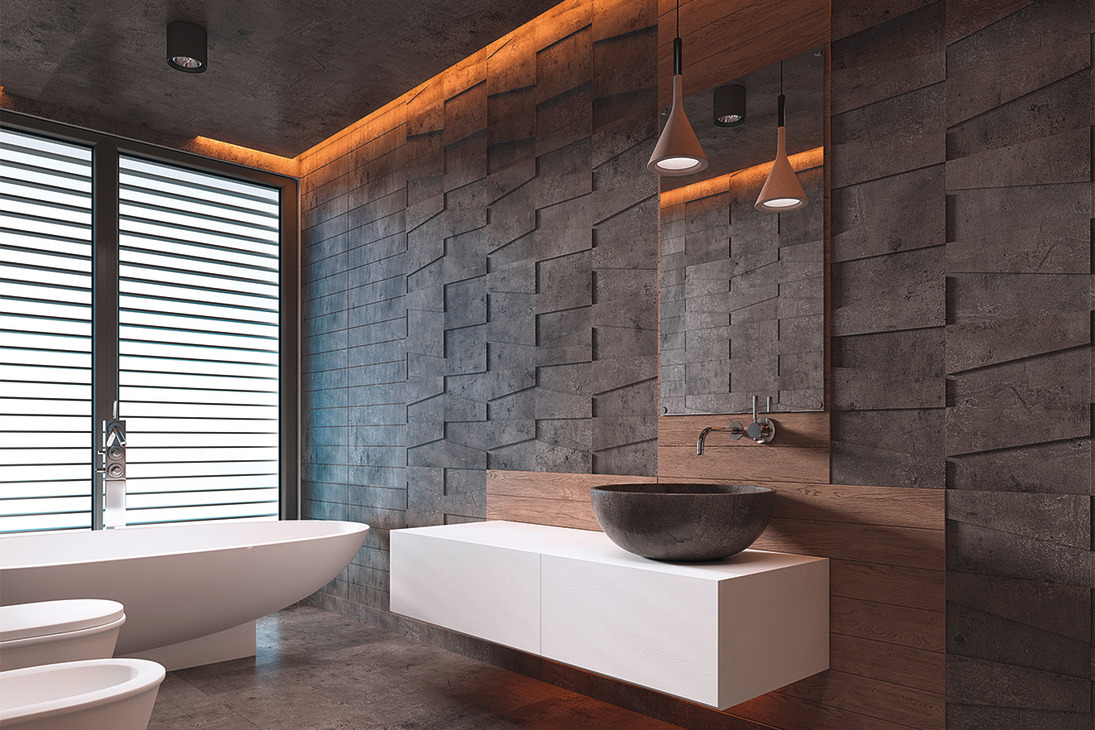

  - Area of application : Kitchen, behind furniture and objects, Bathroom (zone 2)

  - Material : Silicone

  - Color : White

  - Silicone tube width : 10.00 mm

  - Silicone hose height : 4.80 mm

  - Strip width : 8.00 mm

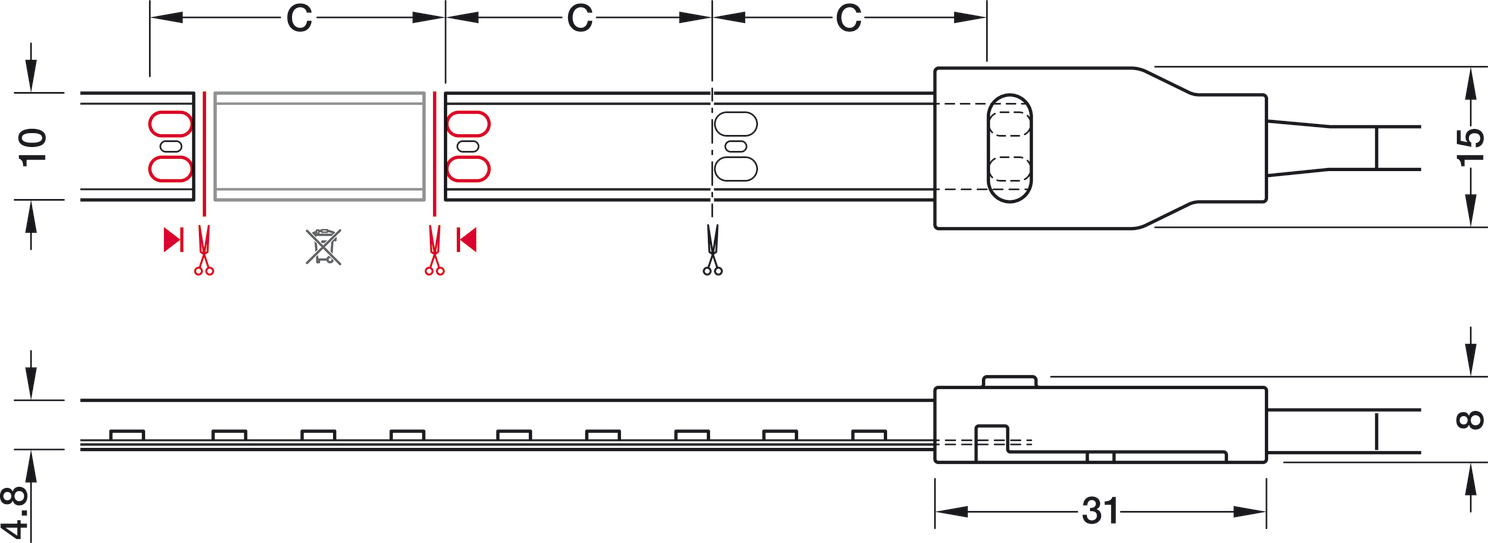

  - Section length : 50.00 mm

  - Contact surface length : 4.00 mm

  - Life time : L80/B10: >50,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP44

  - Installation : Self-adhesive

  - Order reference

  - Max. strip length (visual): 6 m (236 1/4")

  - Maximum visual strip length applies for an imperceptible drop in luminous flux of max. 30%

  - Supplied with:

  - 1 roll


  Additional Information …

  To maintain IP44 protection, use silicone end caps 833.89.184. Please order separately.Silicone LED mounting clips, 824.49.423 are available for supplementing self-adhesive mounting for silicone LED strips for securing cables to provide strain relief. Please order separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Loox5 LED 2063 / 3043 / 3046

  Safety Notes for LED Strip Lights

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 25



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead, Häfele Loox5, for LED silicone strip light, monochrome, (5/16") 8 mm (choose one):


  • IP44, Length: 2000 mm (78 3/4"), 5 A/18 AWG, 12 V

    833.95.703

    Click to order



  Optional Accessories:



  • Interconnecting lead, Häfele Loox5, for LED silicone strip light, monochrome, 8 mm (5/16")
  • End cap set, Häfele Loox5 for LED strip light in 8 mm silicone sleeve
  • Silicone Stripping Tool, for Häfele Loox5 LED silicone strip lights
  • Remote control, Häfele Connect Mesh
  • Wall mounted push button, Häfele Connect Mesh
  • Distributor, Häfele Connect Mesh 12 V with switching function 2-pin (monochrome)
