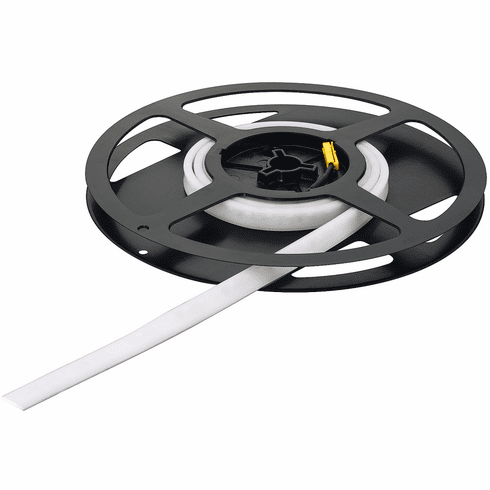

Hafele 833.74.261 LED2099 Silicon Side View 12V/9.6 W/M 30K/CRI90/3M

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.261

  Product Title: Flexible Edge Lit Silicone Strip Light, Häfele Loox5 LED 2099, 12 V, for groove 4 x 10 mm, 120 LEDs/m, 9.6 W/m, IP44, warm white 3000 K, 3 m, energy efficiency class G

  Category: Flexible Edge Lit Silicone Strip Light, Häfele Loox5 LED 2099, 12 V, for groove 4 x 10 mm, 120 LEDs/m, 9.6 W/m, IP44

  Item Details …

  - The light emits from the edge of the ribbon, no LED dots visible

  - Designed for recessed installation in a 4 mm wide groove

  - Mounts flush with the panel

  - Flexible silicone allows for curved applications (radius min. 30 mm (1 3/16")

  - Model No. : LED 2099

  - Nominal voltage : 12.00 V

  - Wattage/m : 9.60 W

  - Max. strip length (visual) : 3.00 m

  - Strip length : 3.00 m

  - Energy efficiency class : G

  - Height (inch) : Silicone sleeve: (5/32")

  - Width (inch) : Strip: (5/16"); Silicone Sleeve: (3/8")

  - Dimmable : yes

  - Area of application : Display cabinets and representative furnishing, Storage spaces, Working areas

  - Material : Silicone

  - Color : White

  - Silicone tube finish : matt

  - Silicone tube width : 10.00 mm

  - Silicone hose height : 4.00 mm

  - Section length : 25.00 mm

  - Contact surface length : 6.00 mm

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Routing width : 4.00 mm

  - Routing depth : 10.00 mm

  - Min. bending radius : 30.00 mm

  - Degree of protection : IP44

  - Installation : For recess mounting, For press fitting

  - Installation reference : For embedding in routed channel

  - Cable length : 200.00 mm

  - Supplied with:

  - 1 LED strip light with 2 x 0.2 m soldered lead 3.5 A/20 AWG (1 each on the left/right of the strip). Strip can be divided into 2 sections.


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30 %. Please note: A strip section with a new power supply that follows immediately is noticeably brighter.Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.
