Hafele 833.74.195 LED2042 12 volt direct curent, 4.8watts per meter, yellow, 15 meter roll, 26 x 26 x 3 centimeters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.195

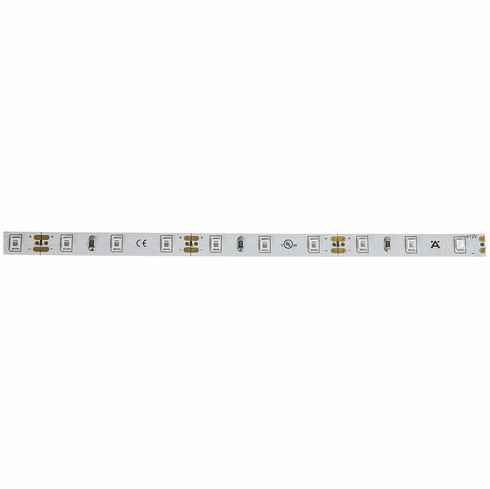

  Product Title: Flexible LED strip light, Häfele Loox5 LED 2042, 12 V, Single Color, (5/16") 8 mm, 60 LEDs/m, 4.8 W/m, yellow

  Category: Flexible LED strip light, Häfele Loox5 LED 2042, 12 V, Single Color, (5/16") 8 mm, 60 LEDs/m, 4.8 W/m

  Item Details …

  - Nominal voltage : 12.00 V

  - Wattage/m : 4.80 W

  - Height (inch) : 1/16"

  - Length (inch) : 590 9/16"

  - Width (inch) : 5/16"

  - Dimmable : yes

  - Material : Plastic

  - Color : White

  - Strip width : 8.00 mm

  - Strip height : 1.30 mm

  - Number of LEDs/m : 60

  - Life time : 20,000 h

  - Energy efficiency class : A+

  - Degree of protection : IP20

  - Installation reference : Self-adhesive with aluminum profile or cooling strip.

  - Order reference

  - Please order lead separately.

  - Aluminum profile recommended from 9.6 W/m.

  - Consider the width of clip connector when choosing an aluminum profile (see drawing).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions for LED 2042 coloured

  Loox – Electrical Code Compliance



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"), AWG 18 (choose one):


  • Also for constant current strip lights, Length: 100 mm (4"), 5 A/18, 12V Also for constant current strip lights, Length: 2000 mm (78 3/4"), 5 A/18, 12V Also for constant current strip lights, Length: 500 mm (19 11/16"), 5 A/18

    833.93.736 833.95.700 833.95.701

    Click to order Click to order Click to order



  Interconnecting lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16") (choose one):


  • 5 A, 18 AWG, clip width 10 mm, also for constant current strip lights, Length: (2") 50 mm 5 A, 18 AWG, clip width 10 mm, also for constant current strip lights, Length: (19 11/16") 500 mm 5 A, 18 AWG, clip width 10 mm, also for constant current strip lights, Length: (78 3/4") 2,000 mm

    833.89.191 833.89.192 833.89.193

    Click to order Click to order Click to order



  Optional Accessories:



  • Clip connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Corner connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
