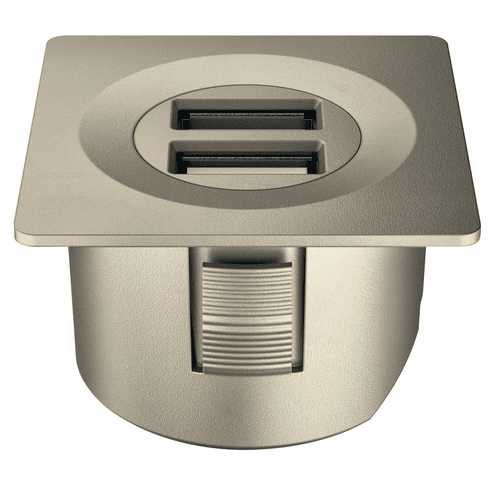

Hafele 833.73.756 USB Converter, Loox ESC 2001 modular design, square for 12 V system, Plastic, matt nickel plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.73.756

  Product Title: USB Converter, Häfele Loox ESC 2001 Modular, Round, For 12 V system, Plastic, matt nickel plated

  Category: USB Converter, Häfele Loox ESC 2001 Modular, Round, For 12 V system

  Item Details …

  - For direct installation in furniture

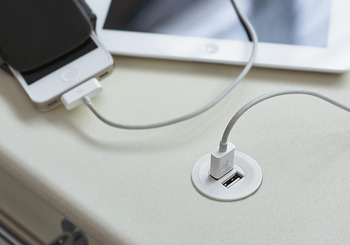

  - Charges up to two tablets or smartphones simultaneously, providing additional functionality

  - The cover ring can be removed

  - Input voltage: 12 VDC; Output voltage: 5 VDC

  - Output power: 10 W; Output current: 2.0 A

  - Charging sockets type : 2 x USB-A

  - Nominal voltage : 12.00 V

  - Height (inch) : 1"

  - Area of application : Furniture

  - Version : With clip fastener

  - Material : Plastic

  - Dim. (Ø x H) : 40 x 24 mm

  - Output voltage : 5 V

  - Output power : 10.00 W

  - Degree of protection : IP20

  - Installation : For mounting in drilled hole and for clamp fixing

  - Drill hole Ø : 35.00 mm

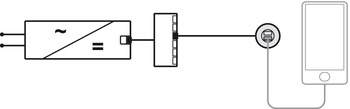

  - Installation reference : when a 6-way distributor with switching function or Häfele Connect Mesh is used, please always connect this charging station to the 7th output (continuous current) of the 6-way distributor

  - Order reference

  - Please order lead with snap-in connector separately.

  - Supplied with:

  - 1 USB charging station


  Additional Information …

  Driver output min. 15 W per charging station
