Hafele 833.72.919 Profile For Recess Mounting, Häfele Loox5, profile 1109

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.919

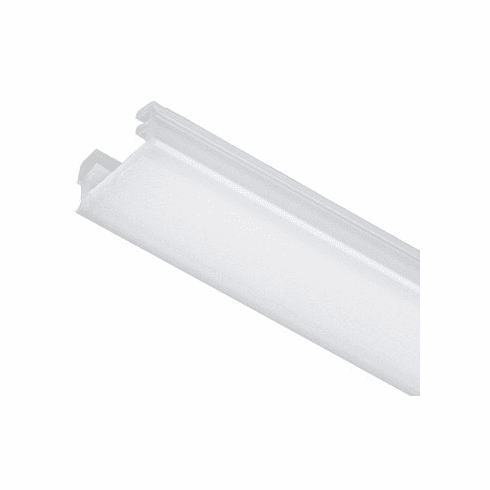

  Product Title: Profile For Recess Mounting, Häfele Loox5, profile 1109, Opal white, 3 m

  Category: Profile For Recess Mounting, Häfele Loox5, profile 1109,

  Item Details …

  - > low installation depth of 6 mm for groove mounting on both sides in centre panel

  - > ideal for COB strip lights

  - Color/finish : Profile: Opal whiteDiffuser: milky

  - Light permeability : 60?–?70?%

  - Material : Profile: Polycarbonate, Diffuser: Plastic

  - Internal width : 8.60 mm

  - Routing width : 11.30 mm

  - Routing depth : 6.00 mm

  - Supplied with:

  - 1 plastic profile


  Additional Information …

  For LED strip lights with max. 9.6 W/m. For LED strip lights with a width of precisely 8 mm. Please position clips outside or use soldered leads.Diffuser (integrated)The low installation height is ideal for COB strip lights, since they do not depend on the installation height for illumination without visible LED points. Identical profile for standard LED strip lights is profile 1101 with 11 mm routing depth.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data
