Hafele 833.72.862 Aluminum Profile, for Surface Mounting For Loox LED 2013/2015/2037/2039/3015/3028, Cover: Frosted

Product Information

• Description

  Hafele 833.72.862 Aluminum Profile, for Surface Mounting
  For Loox LED 2013/2015/2037/2039/3015/3028, Cover: Frosted

  Additional items required to complete installation:
  End Cap, for Surface Mount Extrusion


  Note :

  Milk cover: The material contains pigment.

  - Creates a €śdiffused glow€ť surface-directed light with uniform intensity

  - The light appears €śsoft€ť

  Frosted cover: The surface is frosted

  -The light appears €śvelvet-white€ť and creates a sophisticated, high-quality impression

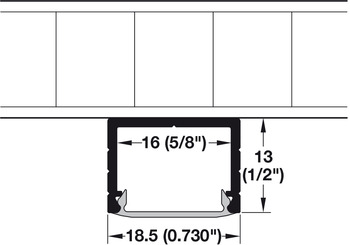

  Length : (98 3/8") 2500 mm

  Width : (3/4") 18.5 mm

  Height : (1/2") 13 mm

  Material : Aluminum

  Finish : Silver colored anodized

  Mounting : Surface mount with clips, tape or screws

  Note :

  Shallow profiles are not suitable for operation with LED 3028





  Optional items:
  Flexible Strip Light, Loox LED 2029, 12 V
  Flexible Strip Light, Loox LED 2037, 12 V
  Flexible Strip Light, Loox LED 3015, 24 V
  Flexible Strip Light, Loox LED 3028, 24 V
  Retaining Clips (2 pcs), For Hafele Loox Aluminum Profile for Surface Mounting
  Retaining Clips (2 pcs), For Hafele Loox Aluminum Profile for Surface Mounting
