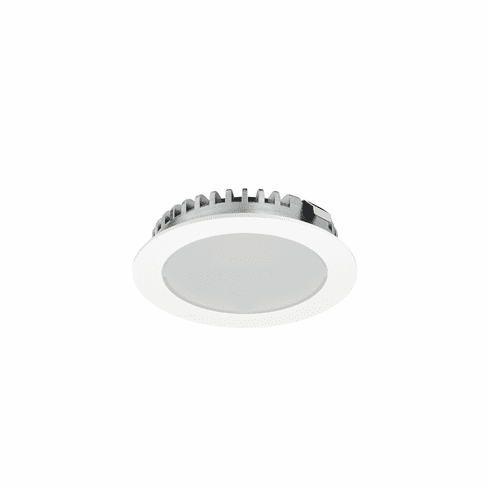

Hafele 833.72.538 LED 2094 12V puck light, 2.5W, CRI90, 2700K, white, 2 meter cable

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.538

  Product Title: Recess Mounted Downlight, Round, Häfele Loox LED 2094, zinc alloy, 12 V, Aluminum, Light color: Warm white 2700 K, luminous flux: 135 lm, white

  Category: Recess Mounted Downlight, Häfele Loox5 LED 2094, 12 V, Aluminum

  Item Details …

  - Large light emission surface, homogeneous appearance

  - Nominal voltage : 12.00 V

  - Wattage : 2.50 W

  - Color rendering index Ra : >90

  - Drill hole Ø : 58.00 mm

  - Number of LEDs : 6

  - Model : LED 2094

  - Installation : For mounting in drilled hole and for clamp fixing

  - Installation reference : Drill hole ? from 58 - 60 mm possible.

  - Energy efficiency class : G

  - Drill hole Ø : 2 5/16"

  - Dimmable : yes

  - Area of application : For display cabinets, shelving units and shelves

  - Housing material : Aluminum

  - Diffuser material : Plastic

  - Design : Plastic panel

  - Life time : 30,000 h

  - Color rendering index R9 : >50

  - Degree of protection : IP44 (recess mounted light); IP20 (surface mounted downlight)

  - Cable length : 2,000.00 mm

  - Supplied with:

  - 1 light with 2000 mm (78 3/4") lead

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for LED 2094, LED 3094

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024| Page 54



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Distributor, Häfele Connect Mesh 12 V with switching function 2-pin (monochrome) (choose one):


  • with programmable switching input, Voltage 12 V, max. connected wattage 60 W

    850.00.042

    Click to order



  Optional Accessories:



  • Housing for undermounted light, Round, for Häfele Loox LED 2094/3094
