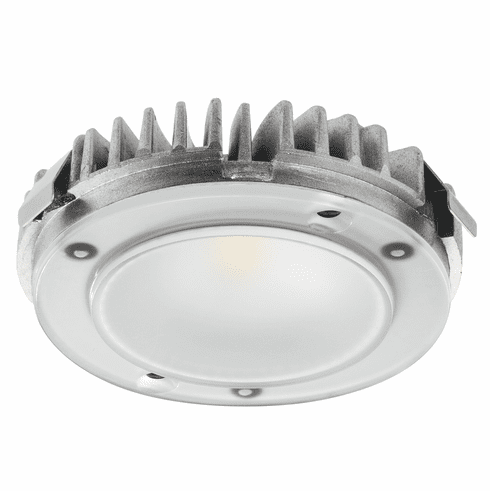

Hafele 833.72.451 LED3086 24V, 3.4 watts, 2-wire multi-white Puck Light, 2700-5000k, Aluminum

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.451

  Product Title: Recess/Surface Mounted Light, Modular, 2-wire multi-white, LOOX5 LED 3086, Aluminum, 24V, Drill hole 58mm (2 5/16"), Light color: Warm white 2700K to cool white 5000K

  Category: Recess/Surface Mounted Light, Modular, 2-wire multi-white, LOOX5 LED 3086, Aluminum, 24V, Drill hole 58mm (2 5/16"), Light color: Warm white 2700K to cool white 5000K

  Item Details …

  - Color temperature : 2700?–?5,000 K

  - Light color : Multi-white

  - Luminous flux : 225?–?260 lm

  - Nominal voltage : 24.00 V

  - Wattage : 3.40 W

  - Luminous efficacy : 66?–?76 lm/W

  - Drill hole Ø : 58.00 mm

  - Housing color/finish : silver colored

  - Model : LED 3086

  - Installation : For mounting in drilled hole and for clamp fixing, or for screw fixing

  - Energy efficiency class : G

  - Dimmable : yes

  - Housing material : Aluminum

  - Weighted energy consumption : 3.74 kWh/1000 h

  - Degree of protection : IP44 (recess mounted light); IP20 (surface mounted downlight)

  - Supplied with:

  - 1 modular lead

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  2 Wire Pucks Sell Sheet

  Hafele_Lighting_2024|Page 164



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Recess Mounted Housing Trim Ring, for Loox LED 2025/2026 (choose one):


  • round, Silver colored square, silver colored round, Black round, Matt nickel round, White square, black square, matt nickel square, white round, Anthracite round, Brown round, Stainless steel colored square, Anthracite square, Brown square, Stainless steel colored

    833.72.126 833.72.127 833.72.168 833.72.170 833.72.171 833.72.172 833.72.174 833.72.175 833.72.380 833.72.381 833.72.382 833.72.383 833.72.384 833.72.385

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Surface Mounted Housing Trim Ring, for Loox LED 2025/2026, 2091/3091, 2092/3092 (choose one):


  • Round, Silver colored Square, Silver colored Round, Black Round, Matt nickel Round, White Square, Black Square, Matt nickel Square, White Round, Bronze brown Round, Anthracite Round, Stainless steel colored Square, Anthracite Square, Bronze brown Square, Stainless steel colored

    833.72.124 833.72.125 833.72.160 833.72.162 833.72.163 833.72.164 833.72.166 833.72.167 833.72.192 833.72.193 833.72.194 833.72.195 833.72.196 833.72.197

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Distributor, Häfele Connect Mesh Eco, 4-gang (choose one):


  • Individual component for set extension, US

    850.00.922

    Click to order



  Distributor, Häfele Loox5 6-Way Distributor with Manual 2-Wire Tunable White Control (choose one):


  • 90 W, 24 V, black

    833.95.895

    Click to order



  Optional Accessories:



  • Extension lead, Häfele Loox5 monochrome, 12 V, 18 AWG
