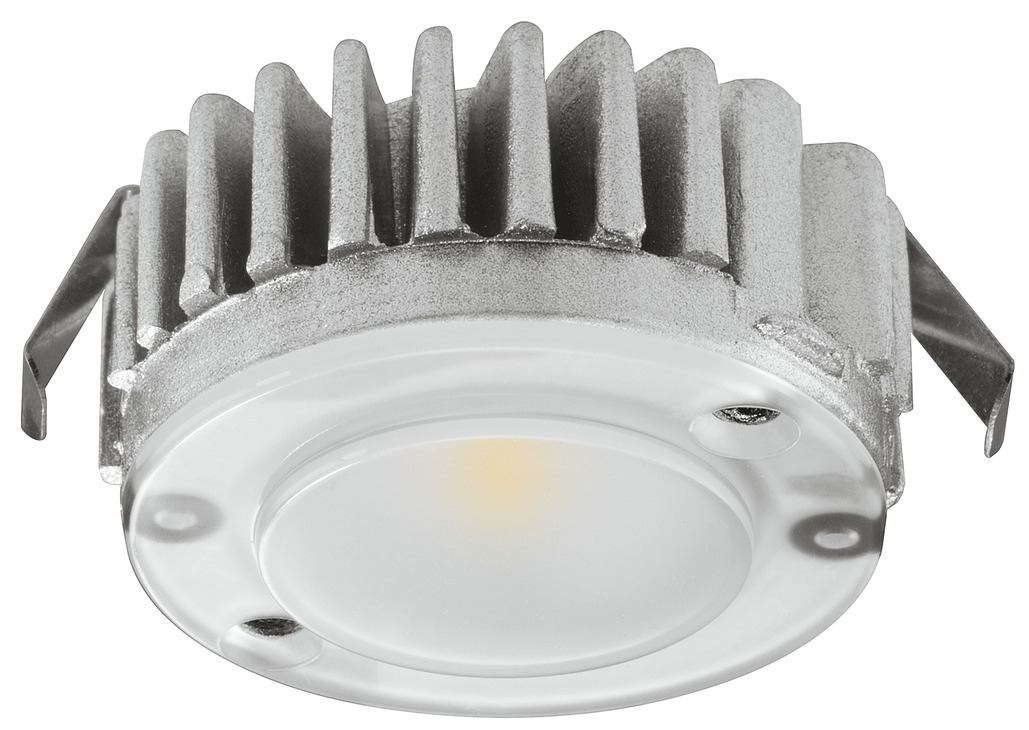

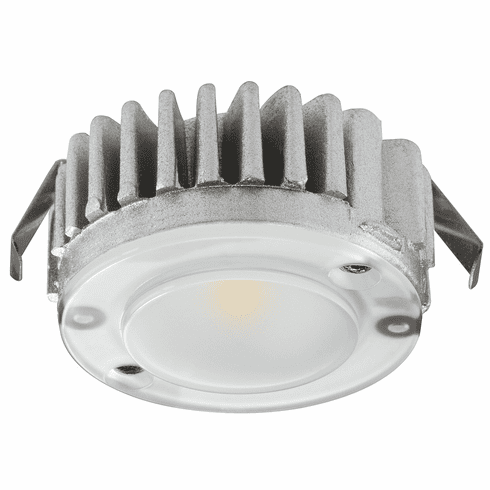

Hafele 833.72.333 Modular Puck Light, Loox LED 2040, 12 V Cool white 5000 K,

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.333

  Product Title: Recess/surface mounted lights, Modular, monochrome, Häfele Loox5 LED 2040, aluminum, 12 V, Drill hole ?: 35 mm (1 3/8"), Cool white 5000 K

  Category: Recess/surface mounted lights, Modular, monochrome, Häfele Loox5 LED 2040, aluminum, 12 V, Drill hole ?: 35 mm (1 3/8")

  Item Details …

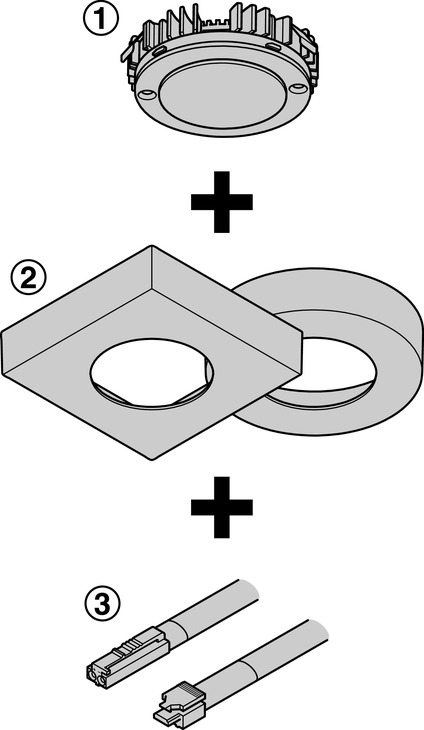

  - Modular system: wide range of design options with interchangeable housings and leads

  - Light with integrated cable socket for quick conversion

  - Suitable for concealed hinge drill hole

  - Nominal voltage : 12.00 V

  - Wattage : 1.50 W

  - Color rendering index Ra : >90

  - Drill hole Ø : 35.00 mm

  - Number of LEDs : 3

  - Model : LED 2040

  - Installation : For mounting in drilled hole and for clamp fixing, or for screw fixing

  - Installation reference : modular system: wide range of design options with interchangeable housings and leadsLight with integrated cable socket for quick conversion

  - Version : With snap-in connector

  - Energy efficiency class : G

  - Drill hole Ø : 1 3/8"

  - Dimmable : yes

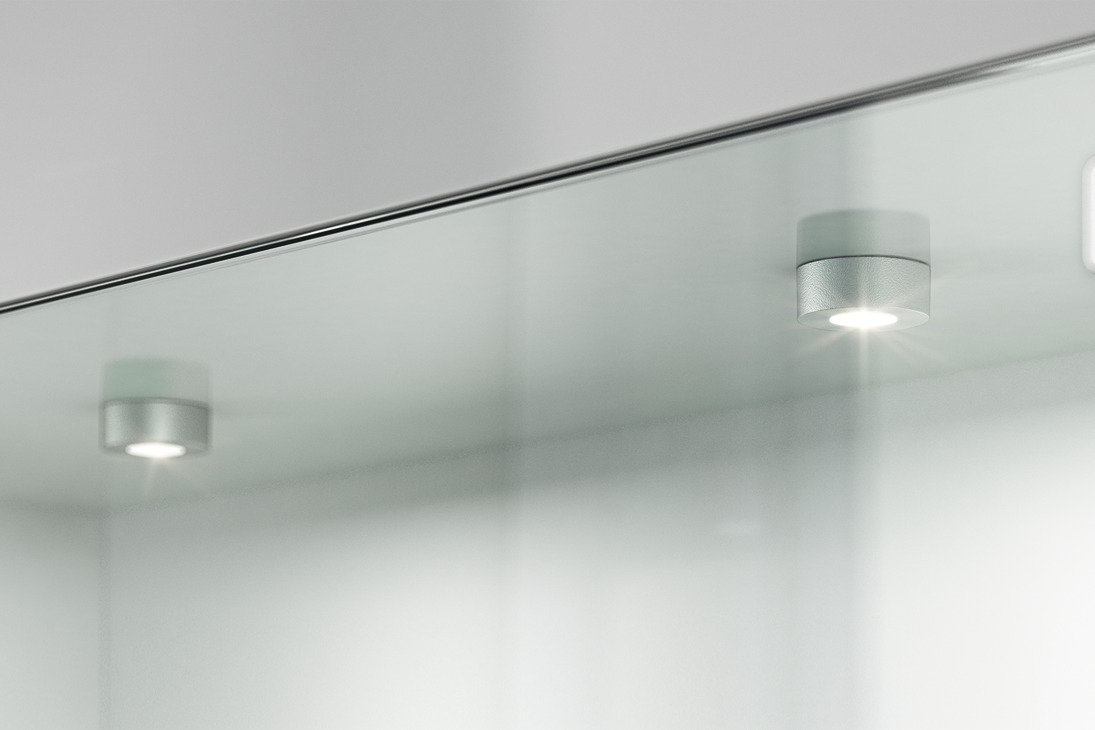

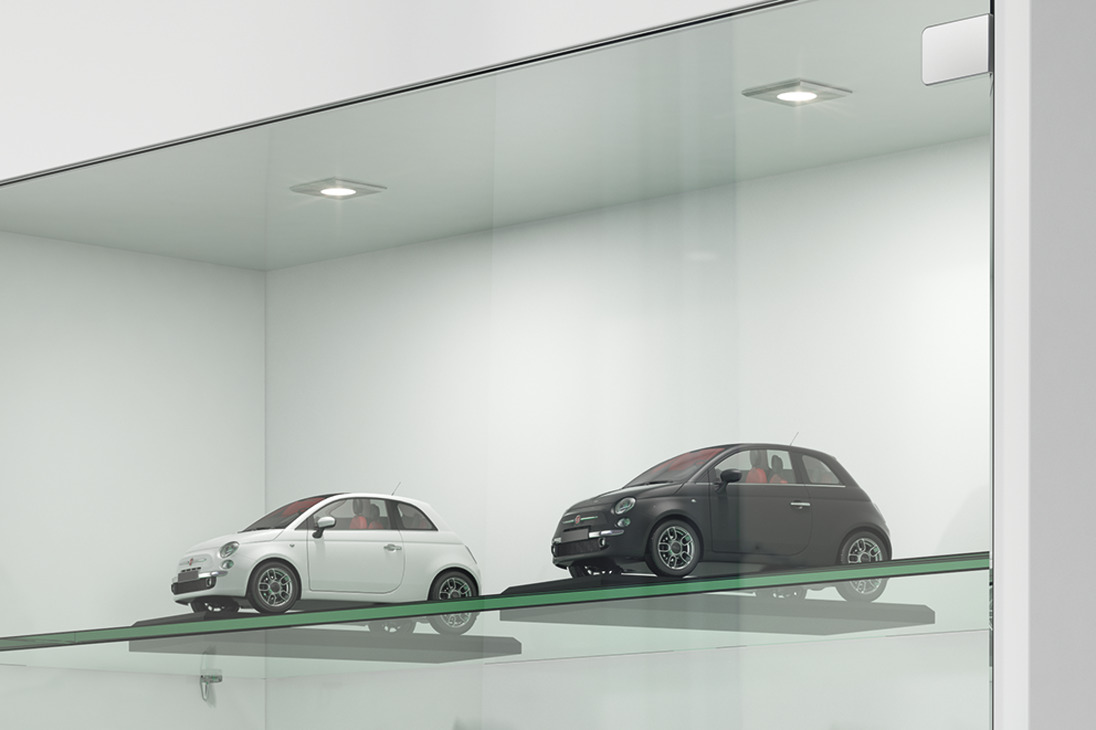

  - Area of application : Kitchen and living room furniture, display cabinets

  - Housing material : Aluminum

  - Degree of protection : IP45 (recess mounted light); IP20 (surface mounted downlight)

  - Order reference

  - Please order housing and lead separately.

  - Supplied with:

  - 1 light module


  Additional Information …

  The IP44 degree of protection is reduced to IP20 when surface mounting or recess mounting with through hole.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox LED 2040 Mounting Instructions

  Certificate

  Loox – Electrical Code Compliance



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Housing for LED light, for Häfele Loox and Häfele Loox5 LED drill hole ? 35 mm (choose one):


  • round, Silver colored square, Silver round, Black round, Matt nickel round, White square, Black square, Matt nickel square, White

    833.72.145 833.72.146 833.72.184 833.72.186 833.72.187 833.72.188 833.72.190 833.72.191

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Housing for LED light, for Häfele Loox and Häfele Loox5 LED drill hole ? 35 mm (choose one):


  • round, Silver colored square, Silver colored round, Black round, Matt nickel round, White square, Black square, Matt nickel square, White

    833.72.143 833.72.144 833.72.176 833.72.178 833.72.179 833.72.180 833.72.182 833.72.183

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Premium 6-Channel Remote Receiver, Häfele Loox, 12 V
