Hafele 833.72.051 Surface Mounted Round Light, Loox LED 2027, 12 V Cool white 4000 K,

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.051

  Product Title: Surface Mounted Light, Häfele Loox LED 2027, 12 V, Monochrome, Ø 65 mm (2 9/16"), Cool white 4000 K

  Category: Surface Mounted Light, Häfele Loox LED 2027, 12 V, Monochrome, Ø 65 mm (2 9/16")

  Item Details …

  - This flat surface mounted light can be used extensively

  - The edge is illuminated, without visable diodes, and the hardware is concealed beneath a removable center covers

  - Light color : Cool white

  - Nominal voltage : 12.00 V

  - Wattage : 2.60 W

  - Number of LEDs : 27

  - Diameter : 65.00 mm

  - Housing color/finish : silver colored

  - Installation : Surface mount with screws

  - Height (inch) : 3/8"

  - Diameter (inch) : 2 9/16"

  - Version : Dimmable

  - Dimmable : yes

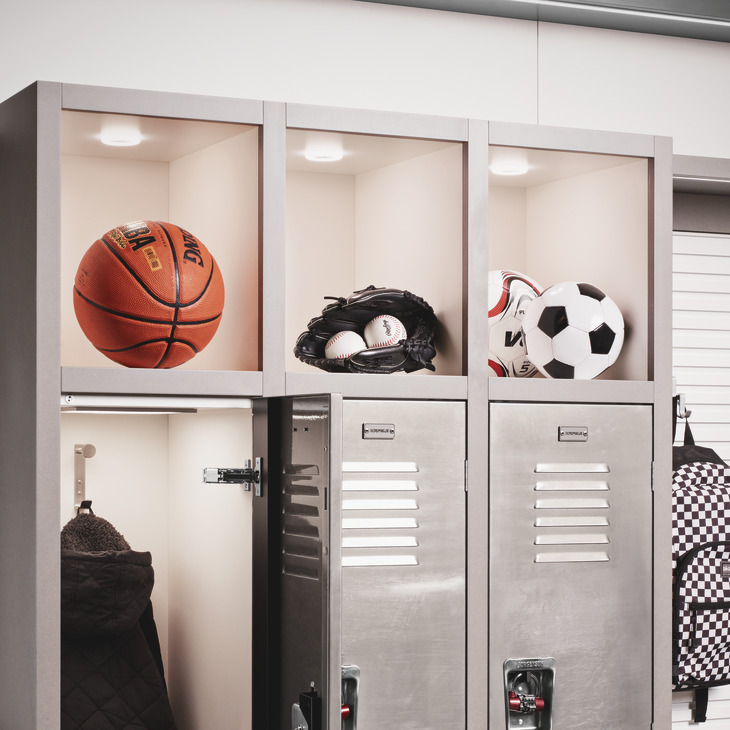

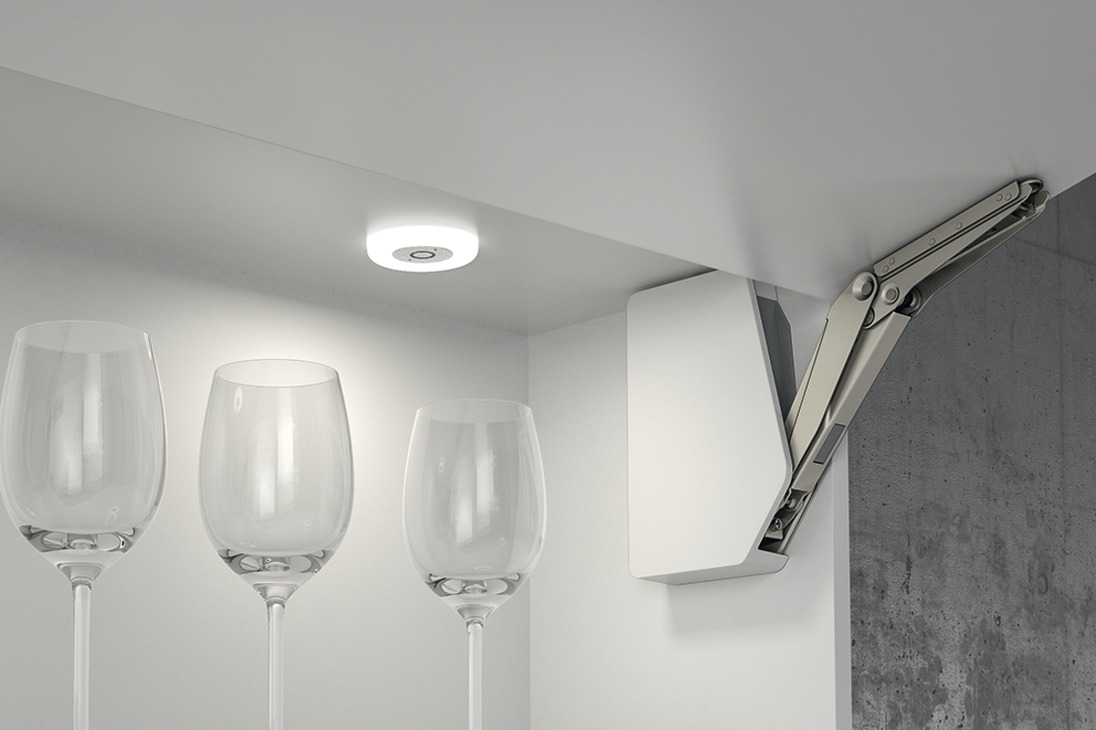

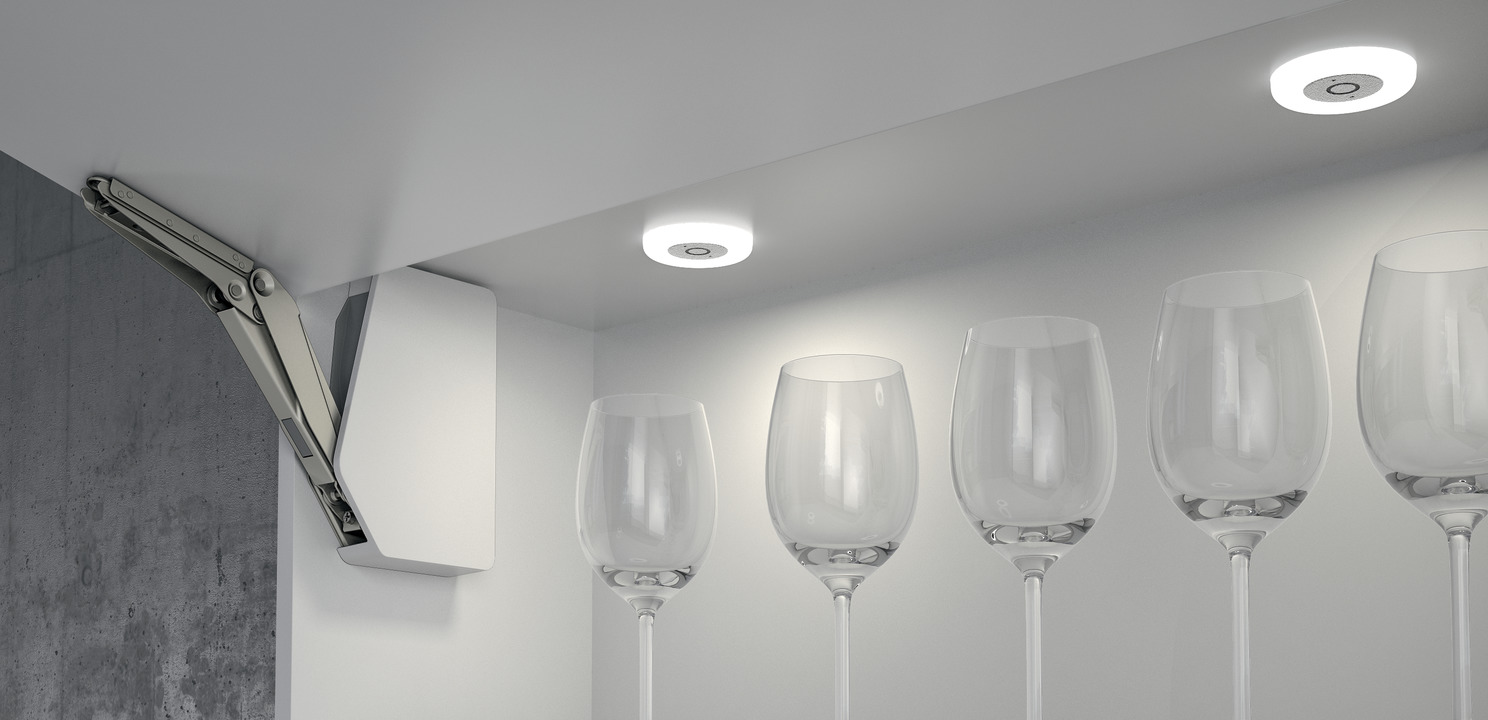

  - Area of application : ---Cabinets, shelving units, display cabinets, shelves

  - Housing material : Aluminum

  - Diffuser material : Plastic

  - Design : Cover plastic silver colored

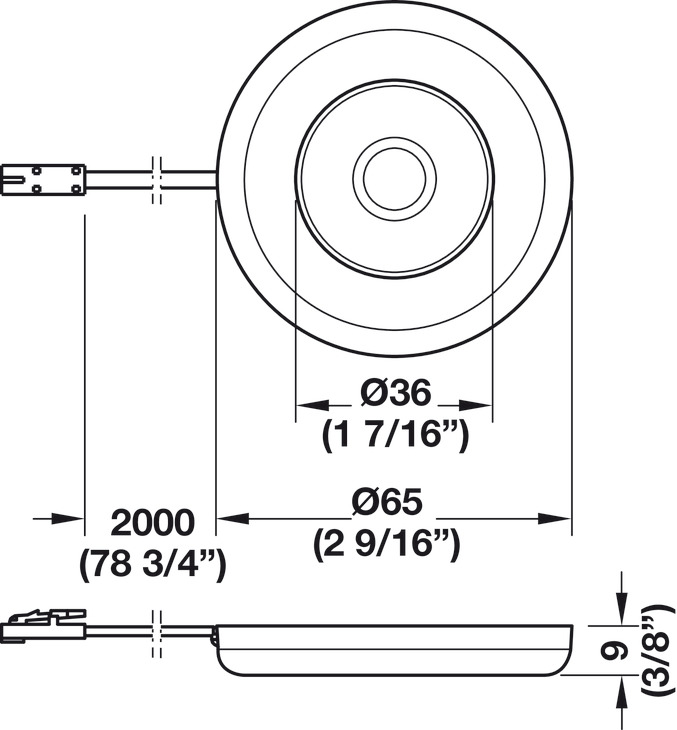

  - Dim. (Ø x H) : 65 x 9 mm

  - Color rendering index Ra : 85

  - Energy efficiency class : A+

  - Degree of protection : IP20

  - Installation : Screwing

  - Cable length : 2,000.00 mm

  - Installation reference : This flat surface mounted light can be used extensivelyThe edge is illuminated, without visable diodes, and the hardware is concealed beneath a removable center covers

  - Supplied with:

  - 1 light with 2 m (78 3/4”) lead

  - Mounting screws

  - Fixing materials

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  Installation instructions for Loox LED 2027

  EU Declaration of Conformity

  Loox – Electrical Code Compliance



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Adapter, Loox device – Loox5 driver (choose one):


  • For connecting to Loox5 driver, Voltage: 12 V, max. connected wattage: 42 W, length 50 mm

    833.95.753

    Click to order
