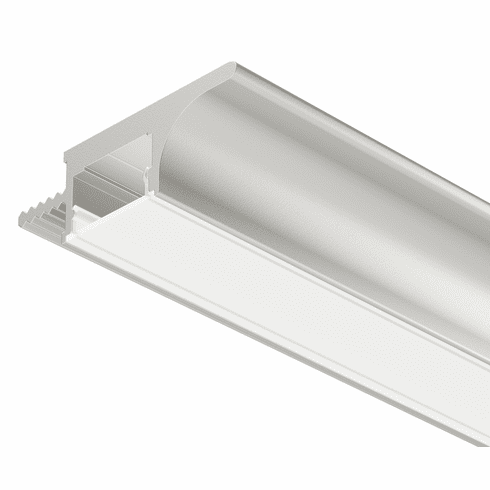

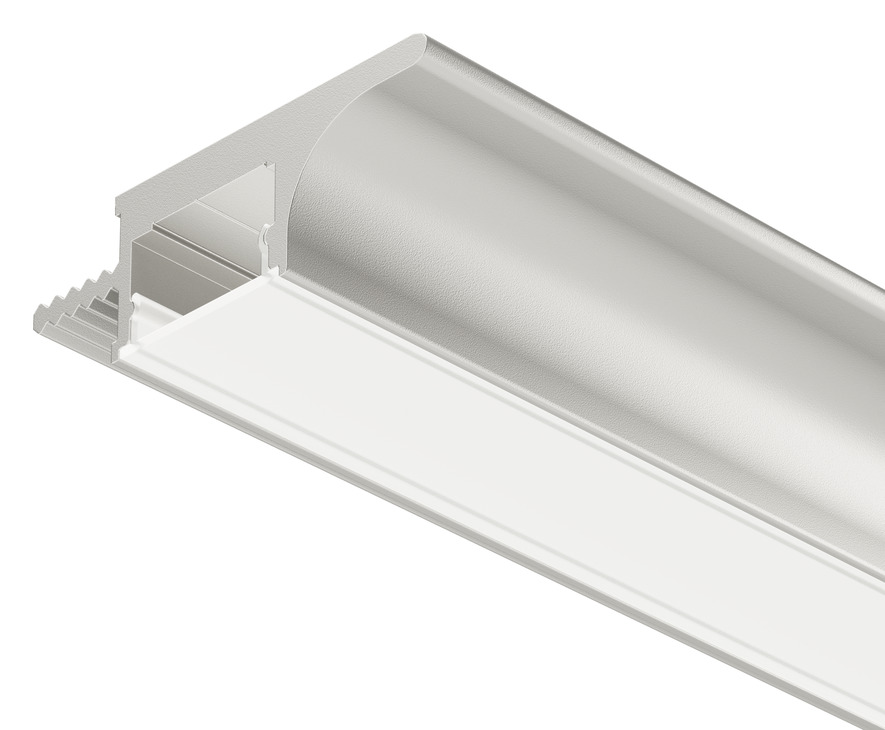

Hafele 833.02.685 Profile for under mounting, Profile 3101 for LED strip lights 10 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.02.685

  Product Title: Profile for under mounting, Profile 3101 for LED strip lights 10 mm, Aluminium, also for linear lens when using 8 mm wide LED strip light, silver coloured anodized, length: 2,500 mm, base panel thickness: 19 mm

  Category: ,

  Item Details �

  - Combination of handle profile and work light

  - Suitable for the exclusive linear lens for work surface lighting when using the 8 mm wide LED strip light

  - Area of application : For front panels without handles

  - Version : Light opening towards bottom

  - Material : Profile: Aluminum

  - Order reference

  - Please order diffuser separately.

  - Supplied with:

  - 1 profile


  Additional Information �

  The surface on the aluminium profile that is to be bonded must be cleaned before bonding to the LED strip lights. It must be completely clean, grease-free and dust-free!

• Data Sheet

  Detailed Data Sheet

• Product Resources

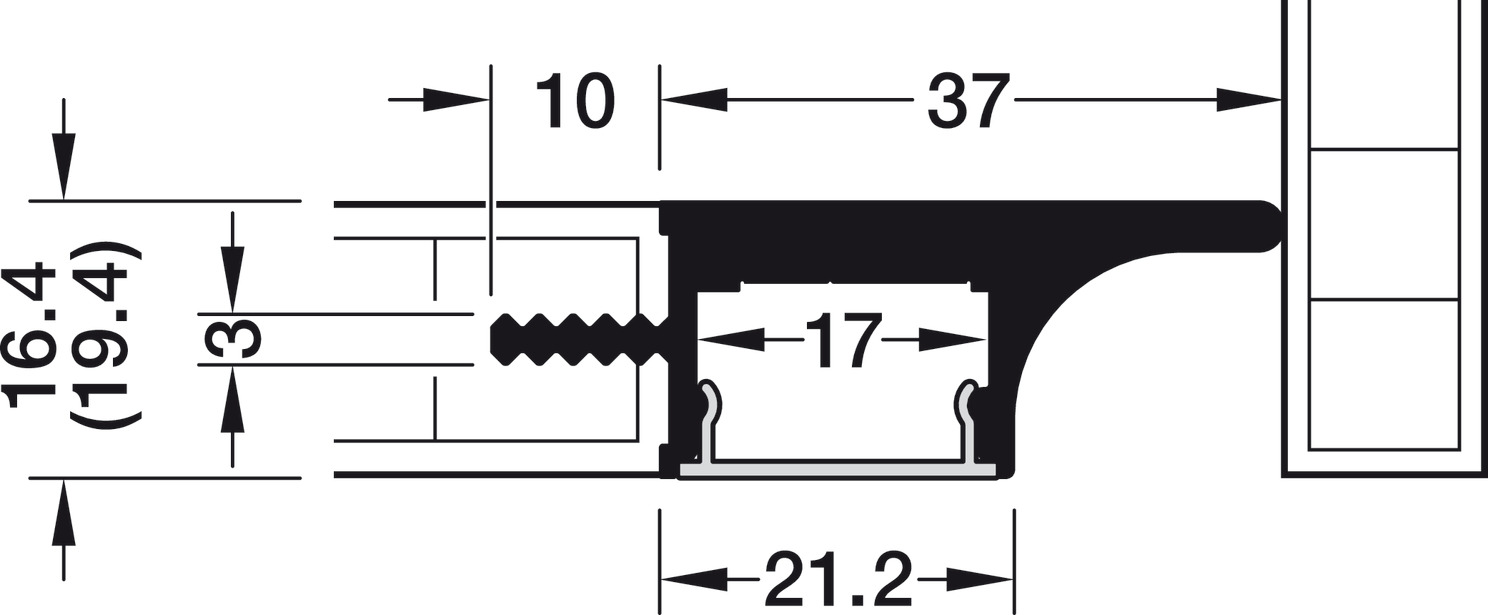

  CAD data



• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Lens, For designer profile for surface mounting profiles 4105/4106
